Ivoti, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal fluctuations in solar electricity production that are worth understanding for anyone considering solar panel installation.

Seasonal Solar Performance

Solar panels in Ivoti can generate varying amounts of electricity depending on the season. During summer, production reaches its peak at 7.26kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.80kWh/day, while autumn yields 4.62kWh/day. Winter shows the lowest output at 3.24kWh/day per kilowatt installed.

The substantial difference between summer and winter production (more than double) indicates that while solar is viable year-round, supplementary power sources might be beneficial during winter months when generation drops significantly.

Optimal Panel Installation

For fixed solar panel installations in Ivoti, Rio Grande do Sul, the ideal tilt angle to maximize year-round energy production is 26 degrees facing North. This specific angle optimizes the panels' exposure to the sun throughout the year, accounting for the location's position in the Southern Hemisphere and the Earth's elliptical orbit.

Environmental Considerations

Several environmental factors could potentially affect solar production in Ivoti:

• Humidity and rainfall: The subtropical climate brings periods of high humidity and rainfall, particularly in summer, which can temporarily reduce panel efficiency despite being the sunniest season.
• Dust accumulation: Agricultural activities in the region may contribute to dust buildup on panels, gradually decreasing efficiency if not regularly maintained.
• Tree coverage: The region's natural vegetation could cast shadows on panels if not properly accounted for during installation.

Preventative Measures

To maximize solar energy production in Ivoti, Rio Grande do Sul, consider these protective measures:

• Install panels with self-cleaning technologies or implement a regular cleaning schedule, especially before and after the rainy season.
• Use microinverters or power optimizers to minimize the impact of partial shading from trees or nearby structures.
• Consider seasonal tilt adjustments (if feasible) to better capture winter sun when production is naturally lower.
• Ensure adequate spacing between panel rows to prevent self-shading, particularly important during winter when the sun is lower in the sky.

Overall, Ivoti provides good conditions for solar energy generation, with excellent production in summer and spring. While winter output drops considerably, the annual average remains favorable for solar PV adoption when properly designed and maintained.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

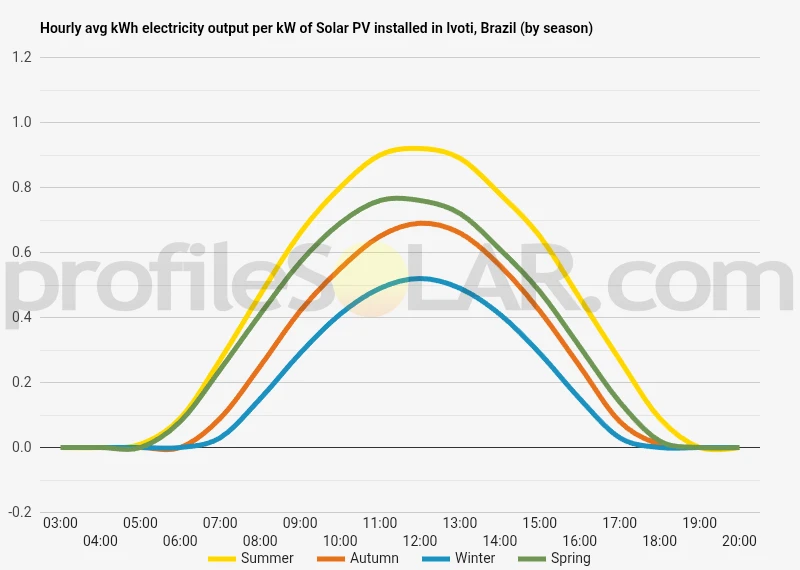

Solar output per kW of installed solar PV by season in Ivoti

Seasonal solar PV output for Latitude: -29.573, Longitude: -51.1763 (Ivoti, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° North in Ivoti, Brazil

To maximize your solar PV system's energy output in Ivoti, Brazil (Lat/Long -29.573, -51.1763) throughout the year, you should tilt your panels at an angle of 26° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ivoti, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ivoti, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ivoti, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ivoti, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ivoti, Brazil

The topography around Ivoti, Brazil is characterized by gently rolling hills and valleys typical of the southern Brazilian highlands. Located in Rio Grande do Sul state, Ivoti sits at an elevation of approximately 140-160 meters above sea level. The terrain forms part of the transitional zone between the coastal plains to the east and the more elevated Serra Geral highlands to the west. The landscape surrounding Ivoti features a mix of undulating terrain with moderate slopes, interspersed with small plateaus and shallow valleys. Several small streams and tributaries of the Rio dos Sinos watershed create natural drainage channels throughout the area. The region's topography has been shaped by millions of years of erosion, resulting in rounded hilltops and gradual inclines rather than steep cliffs or dramatic elevation changes.

Vegetation and Land Use

The natural vegetation around Ivoti consists primarily of Atlantic Forest remnants and grasslands, though much of the original forest cover has been cleared for agriculture and urban development. The remaining patches of native forest tend to be concentrated in steeper areas and along watercourses. The majority of the land surrounding Ivoti is now dedicated to small-scale agriculture, livestock grazing, and expanding residential areas.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, the most suitable areas near Ivoti would be the gently sloping, south-facing hillsides and plateau regions to the north and west of the town. These areas offer several advantages for solar development: The elevated plateaus to the northwest of Ivoti, extending toward Dois Irmãos and Morro Reuter, provide relatively flat terrain with good solar exposure. These higher elevation areas typically experience less fog and atmospheric interference than the lower-lying regions closer to water bodies. The gradually sloping lands between Ivoti and Estância Velha to the south also present favorable conditions, with open expanses that receive consistent solar radiation throughout the day. These areas have already seen some agricultural modification, making land conversion potentially more straightforward. Areas to avoid would include the steeper slopes of the Serra Geral escarpment further west, which would require excessive grading and present erosion concerns. Similarly, the lowland areas closer to the Rio dos Sinos floodplain to the southeast may experience more frequent cloud cover and potential flooding issues.

Topographical Considerations for Solar Development

The moderate relief of the region generally presents few major obstacles to solar development. However, careful site selection should consider local drainage patterns to avoid areas prone to erosion during the region's substantial rainfall events. The ideal solar PV sites would feature slight south-facing slopes (5-10 degrees) to maximize exposure to northerly sun angles in the Southern Hemisphere while facilitating natural panel cooling through improved airflow. The soil composition in the region tends toward clay-rich laterites, which provide reasonable stability for mounting structures but may require specific foundation designs to account for seasonal moisture variations. Areas with existing access roads and proximity to transmission infrastructure would further enhance suitability for large-scale solar development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
