Jaboti, Paraná, Brazil, located in the Southern Sub Tropics at coordinates -23.6974, -50.0776, offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations that potential solar installers should consider.

Seasonal Solar Performance

The solar energy output at Jaboti varies significantly throughout the year. Summer delivers the highest production at 6.98 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 6.10 kWh per day per kW, while autumn drops to 5.38 kWh per day per kW. Winter presents the most challenging conditions with only 4.43 kWh per day per kW of production. This seasonal pattern is typical for locations in the Southern Hemisphere, where summer occurs from December to February and winter from June to August. The nearly 60% difference between peak summer and winter production means that solar systems at this location will generate substantially more electricity during the warmer months.

Optimal Panel Installation

For maximum year-round solar energy production at Jaboti, Paraná, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This optimal angle has been calculated by analyzing daily solar elevation angles at this specific latitude, determining daily optimal panel tilts, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors at this Southern Sub Tropical location could potentially impact solar energy production:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can lead to moisture buildup on solar panels, reducing their efficiency and potentially causing long-term damage to electrical components.
• Heavy rainfall periods: Subtropical regions often experience intense rainy seasons that can reduce solar irradiance and create debris accumulation on panels.
• Temperature fluctuations: While solar panels need sunlight, excessive heat can actually reduce their efficiency, and the subtropical location may experience significant temperature swings.
• Vegetation growth: The favorable growing conditions in subtropical climates mean that nearby vegetation can grow rapidly and create shading issues if not properly managed.

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented:

• Enhanced drainage systems: Install proper drainage around solar installations to prevent water accumulation and ensure panels can dry quickly after rainfall.
• Regular cleaning schedules: Establish frequent panel cleaning routines, particularly during and after rainy seasons, to remove debris, dirt, and biological growth that can block sunlight.
• Improved ventilation: Design installations with adequate air circulation beneath panels to help manage heat buildup and reduce moisture retention.
• Vegetation management: Maintain clear zones around solar installations and regularly trim any vegetation that could create shadows on the panels.
• Corrosion-resistant materials: Use high-quality, humidity-resistant mounting hardware and electrical components designed for subtropical environments.
• Monitoring systems: Install performance monitoring equipment to quickly identify and address any drops in efficiency caused by environmental factors.

Despite these environmental considerations, Jaboti's location still provides viable conditions for solar energy generation, particularly during the peak summer and spring seasons when production levels are quite strong.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

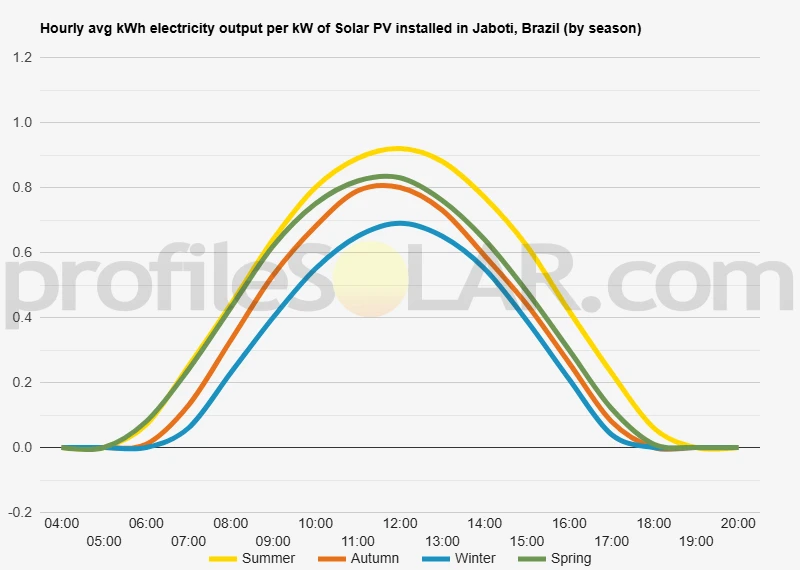

Solar output per kW of installed solar PV by season in Jaboti

Seasonal solar PV output for Latitude: -23.6974, Longitude: -50.0776 (Jaboti, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Jaboti, Brazil

To maximize your solar PV system's energy output in Jaboti, Brazil (Lat/Long -23.6974, -50.0776) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jaboti, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jaboti, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jaboti, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jaboti, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jaboti, Brazil

Topographical Features of the Jaboti Region

Jaboti is situated in the northern region of Paraná state in southern Brazil, positioned within a landscape characterized by gently rolling hills and relatively modest elevation changes. The terrain around this area forms part of the broader Paraná Plateau, which extends across much of the state and into neighboring regions. The topography consists primarily of undulating countryside with gradual slopes and wide valleys, creating a landscape that is neither particularly mountainous nor completely flat.

The elevation in the Jaboti vicinity typically ranges between 400 to 600 meters above sea level, with the terrain featuring smooth transitions between higher and lower areas. The region's geological foundation consists largely of sedimentary rocks and volcanic basalt formations that are characteristic of the Paraná Basin. These underlying rock structures have been weathered over millions of years, resulting in the present-day landscape of gentle hills separated by broad, shallow valleys.

The area experiences a subtropical climate with distinct wet and dry seasons, which has influenced the development of the local topography through erosion patterns and vegetation growth. The landscape is predominantly agricultural, with extensive areas cleared for farming activities including soybean cultivation, corn production, and cattle grazing. This agricultural development has created large expanses of relatively open land with minimal tree coverage across significant portions of the region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Jaboti would be the elevated plateau areas and gentle south-facing slopes that dominate the regional landscape. These areas offer several advantages including consistent exposure to solar radiation throughout the day and minimal shading from surrounding terrain features. The broad, flat-topped hills and extended ridge lines provide excellent foundation conditions for solar array installation while maintaining good drainage characteristics.

The extensive agricultural areas surrounding Jaboti present particularly attractive opportunities for solar development, as much of this land features minimal slope variations and has already been cleared of native vegetation. These open agricultural zones often span several square kilometers without significant topographical obstacles, making them ideal for the large-scale solar installations that require substantial contiguous land areas.

Areas with south and southeast-facing gentle slopes would be especially well-suited for solar panel placement, as these orientations maximize solar energy capture in the southern hemisphere. The region's numerous broad valley floors and plateau surfaces provide stable, well-drained locations that would support the infrastructure requirements of major solar facilities including access roads, electrical transmission connections, and maintenance facilities.

The relatively stable geological conditions of the Paraná Plateau also favor solar development, as the underlying basalt and sedimentary formations provide solid foundations that can support heavy solar mounting systems without significant settling or structural concerns. Additionally, the area's established agricultural road network and proximity to existing electrical transmission infrastructure would facilitate the development and grid connection of large-scale solar projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
