Jaci, São Paulo, Brazil presents a highly favorable location for year-round solar energy generation through photovoltaic systems. Located in the tropics at coordinates -20.9437, -49.5765, this region benefits from consistent sunlight throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output data for Jaci demonstrates strong year-round performance, with summer delivering the highest production at 7.01 kWh per day per kW of installed solar capacity. Spring follows as the second-best performing season at 6.50 kWh/day per kW, while autumn provides 5.80 kWh/day per kW. Even during winter, the lowest-producing season, the location still generates a respectable 5.16 kWh/day per kW of installed capacity. Summer emerges as the optimal time for solar generation, producing approximately 36% more energy than the winter months. The relatively modest seasonal variation - with summer output being only about 1.85 kWh higher than winter - indicates excellent year-round reliability for solar installations.

Optimal Panel Configuration

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 19 degrees North. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Jaci, São Paulo, though most can be effectively managed through proper installation techniques. The tropical wet season presents the most significant challenge, as heavy rainfall and increased cloud cover during these months can reduce solar irradiance. Extended periods of overcast skies and frequent afternoon thunderstorms are common during wet seasons in this region. High humidity levels throughout much of the year can lead to moisture-related issues, including potential corrosion of electrical components and reduced efficiency due to water vapor in the atmosphere. The tropical climate also creates ideal conditions for rapid vegetation growth, which could lead to shading issues if not properly managed. Dust and debris accumulation on solar panels can be accelerated during dry periods, particularly when combined with occasional strong winds that can carry particles from agricultural areas or unpaved surfaces.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for proper air circulation
• Use marine-grade or tropical-rated electrical components and wiring to resist corrosion in high-humidity environments
• Implement proper drainage systems to prevent water pooling around installation areas
• Design mounting systems that can withstand heavy rainfall and occasional strong winds typical of tropical storms
• Plan for regular cleaning schedules, particularly before and after wet seasons, to remove accumulated dust, debris, and organic matter

Regular vegetation management around solar installations is crucial to prevent shading as tropical plants can grow rapidly. Installing panels at appropriate heights and maintaining clear zones around arrays will help ensure consistent sun exposure throughout the year. Overall, Jaci represents an excellent location for solar energy generation, with the tropical climate's challenges being easily manageable through proper planning and installation techniques. The consistent solar resource throughout the year makes this location highly suitable for both residential and commercial solar applications.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

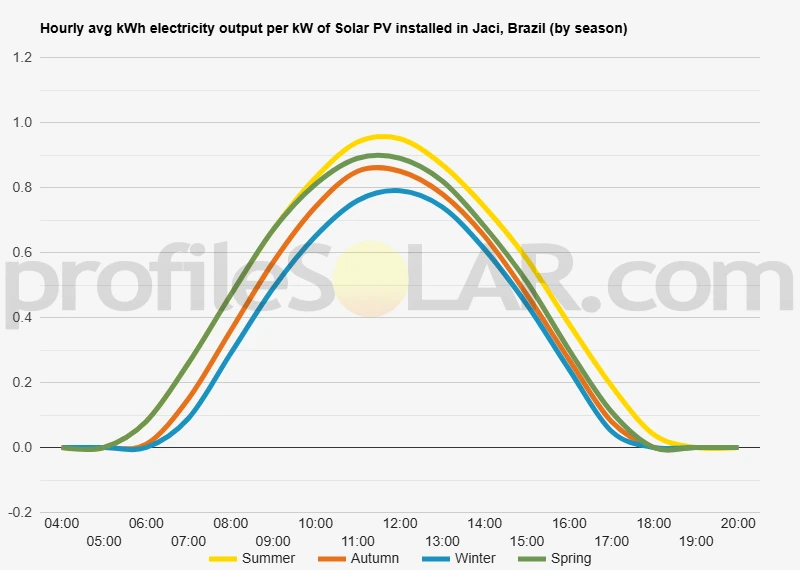

Solar output per kW of installed solar PV by season in Jaci

Seasonal solar PV output for Latitude: -20.9437, Longitude: -49.5765 (Jaci, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Jaci, Brazil

To maximize your solar PV system's energy output in Jaci, Brazil (Lat/Long -20.9437, -49.5765) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jaci, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jaci, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jaci, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jaci, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jaci, Brazil

Topographical Features Around Jaci, Brazil

The region surrounding Jaci in São Paulo state is characterized by gently rolling terrain typical of Brazil's southeastern plateau. The landscape consists primarily of undulating hills with moderate elevation changes, creating a terrain that rises and falls in gradual waves across the countryside. This area sits within the broader geological formation known as the Brazilian Highlands, where the topography has been shaped by millions of years of erosion and weathering.

The local elevation around Jaci ranges from approximately 400 to 600 meters above sea level, with the town itself positioned on relatively flat to gently sloping ground. The surrounding hills are not particularly steep, making much of the terrain accessible for development and agricultural activities. Small valleys and ridgelines create a varied but manageable landscape that doesn't present significant obstacles to large-scale infrastructure projects.

Water features in the area include several small streams and seasonal waterways that flow through the valleys, eventually draining toward larger river systems in the region. These waterways have carved gentle depressions in the landscape over time, creating natural drainage patterns that follow the topographical contours.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Jaci would be the broader hilltops and gentle south-facing slopes that characterize much of the surrounding terrain. These elevated areas typically offer excellent exposure to sunlight throughout the day while providing sufficient flat or gently sloping land for large arrays of solar panels.

The rolling hills to the north and west of Jaci present particularly attractive opportunities for solar development. These areas combine favorable topographical conditions with relatively easy access for construction and maintenance activities. The moderate slopes in these directions allow for optimal panel positioning while natural drainage patterns help manage water runoff during the rainy season.

Areas with minimal tree cover and existing agricultural land that has been cleared would be especially well-suited for solar installations. Much of the terrain around Jaci has been modified for farming activities over the decades, creating open spaces that could be readily converted to solar energy production without requiring extensive land clearing.

The gentle nature of the local topography means that large solar installations could be developed without requiring extensive grading or terracing work. This reduces both construction costs and environmental impact while allowing solar arrays to follow the natural contours of the land. The stable geological conditions typical of this part of the Brazilian Highlands also provide a solid foundation for mounting systems and electrical infrastructure.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
