Jaguarari, Bahia, Brazil presents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -10.148, -40.1043, this area benefits from consistent sunlight throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output data for Jaguarari demonstrates strong and reliable performance across all seasons. Spring emerges as the most productive season, generating 6.64 kWh per day per kW of installed solar capacity. Summer follows closely with 6.17 kWh/day, while autumn maintains solid production at 6.03 kWh/day. Even during winter, the location still produces a respectable 5.18 kWh/day per kW installed. This seasonal variation shows that Jaguarari experiences only moderate fluctuations in solar production throughout the year, with spring and summer being the peak generation periods. The relatively high winter production compared to many other global locations makes this site particularly attractive for consistent year-round solar energy generation.

Optimal Panel Configuration

For maximum year-round solar production at Jaguarari, Bahia, solar panels should be installed at a fixed tilt angle of 9 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these calculations using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production in Jaguarari and require careful consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate typical of this region of Brazil can lead to significant dust buildup on solar panels, reducing their efficiency over time
• Intense UV Radiation: The tropical location means solar equipment faces prolonged exposure to intense ultraviolet radiation, which can degrade panel materials and electrical components more rapidly
• Seasonal Rainfall Patterns: While wet seasons can help clean panels naturally, heavy rains may also bring debris and require robust mounting systems
• High Temperatures: Excessive heat can reduce solar panel efficiency and stress electrical components

Preventative Measures for Optimal Performance

To maximize solar energy production and system longevity in Jaguarari, Bahia, several preventative measures should be implemented: Regular cleaning schedules are essential to combat dust accumulation. Installing automated cleaning systems or planning for frequent manual cleaning will maintain optimal panel efficiency. Choosing solar panels with anti-reflective and self-cleaning coatings can also help reduce maintenance requirements. Selecting high-quality panels and electrical components rated for extreme UV exposure and high temperatures is crucial. This includes using UV-resistant wiring, robust inverters with proper heat management, and panels with strong anti-degradation warranties. Proper ventilation around solar installations helps manage excessive heat buildup. Mounting systems should allow adequate airflow beneath panels, and electrical components should be housed in well-ventilated, shaded enclosures. Robust mounting systems designed to withstand both strong winds during storms and the thermal expansion cycles caused by daily temperature variations will ensure long-term system stability and performance.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

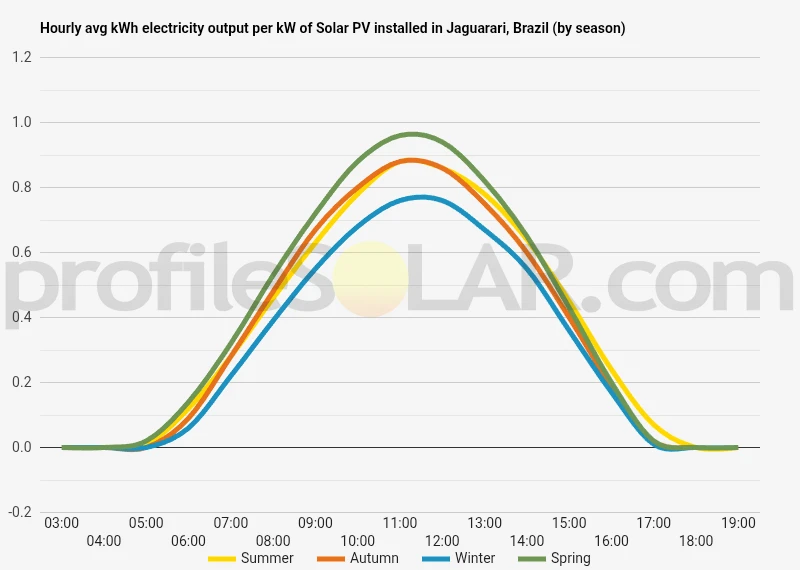

Solar output per kW of installed solar PV by season in Jaguarari

Seasonal solar PV output for Latitude: -10.148, Longitude: -40.1043 (Jaguarari, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 9° North in Jaguarari, Brazil

To maximize your solar PV system's energy output in Jaguarari, Brazil (Lat/Long -10.148, -40.1043) throughout the year, you should tilt your panels at an angle of 9° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jaguarari, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jaguarari, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 9° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° South in Summer	16° North in Autumn	25° North in Winter	5° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jaguarari, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jaguarari, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jaguarari, Brazil

Topography Around Jaguarari

The landscape surrounding Jaguarari in northeastern Brazil is characterized by the distinctive terrain of the Caatinga biome, situated within the semi-arid region known as the Sertão. This area features gently rolling hills interspersed with flat to moderately undulating plains, creating a varied but generally accessible topography. The elevation ranges from approximately 400 to 600 meters above sea level, with occasional higher ridges and escarpments that break up the otherwise relatively uniform landscape. The region sits within the São Francisco River basin, though the immediate vicinity of Jaguarari is dominated by seasonal watercourses and dry valleys that only flow during the brief rainy season. These drainage patterns have carved shallow depressions and gentle slopes across the terrain, creating natural corridors between the low hills and mesas that dot the landscape. Rocky outcrops and exposed bedrock are common features throughout the area, reflecting the underlying geology of ancient crystalline rocks. These formations often appear as isolated hills or inselbergs rising from the surrounding plains, while areas of deeper soil accumulation occur in the valleys and gentler slopes between these rocky prominences.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the broad, flat to gently sloping plains that extend southward and eastward from Jaguarari. These areas offer the dual advantages of minimal grading requirements and excellent accessibility for construction and maintenance activities. The terrain in these zones typically features slopes of less than five percent, making them ideal for large arrays of solar panels without the need for extensive earthworks. The elevated plateaus and mesa tops scattered throughout the region present another excellent opportunity for solar development. These naturally flat or gently sloping surfaces provide stable foundations and are often positioned to maximize exposure to direct sunlight throughout the day. Their elevated position also offers natural drainage advantages and reduces concerns about seasonal flooding that might affect lower-lying areas. Areas with moderate southern exposures on gentle hillsides could also prove suitable for solar installations, particularly where the terrain allows for terracing or where the natural slope can be incorporated into the panel mounting design. These locations often benefit from excellent drainage characteristics and can be positioned to optimize solar collection angles. The proximity to existing infrastructure, including the BR-407 highway and local road networks, makes several large tracts of suitable land particularly attractive for development. Areas within reasonable distance of electrical transmission infrastructure would further enhance the viability of solar projects, reducing the costs associated with grid connection and power delivery to population centers.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
