Jaguari, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at coordinates -29.4521, -54.6417, presents a moderately favorable location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows significant seasonal fluctuation throughout the year. Summer delivers the strongest performance at 7.70 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season with 6.03 kWh per day per kW, while autumn drops to 4.76 kWh per day per kW. Winter presents the most challenging conditions with only 3.43 kWh per day per kW of output. This seasonal pattern means that solar installations in Jaguari will generate more than twice as much energy during peak summer months compared to winter. The best times for solar generation at this location are clearly during the warmer months from spring through summer, with December through March typically providing optimal conditions.

Optimal Panel Installation

For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 25 degrees North. This angle has been calculated by analyzing daily solar elevation angles at this specific latitude, determining optimal panel tilt for each day, and weighting these angles according to daily solar potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several environmental and weather factors in this Southern Sub Tropical location could potentially impact solar energy production:

• Seasonal cloud cover and precipitation: The region experiences distinct wet and dry seasons, with increased cloud cover during certain months that can reduce solar irradiance
• Humidity and moisture: High humidity levels common in subtropical climates can lead to condensation on panels and reduced efficiency
• Dust and agricultural particles: Being in a rural Brazilian location, airborne dust and agricultural debris may accumulate on solar panels
• Severe weather events: Potential for strong winds, hail, or intense thunderstorms during certain seasons

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented during installation: Regular cleaning systems or easy access for manual cleaning should be incorporated into the design to address dust and debris accumulation. Installing panels with adequate ventilation spacing underneath helps combat humidity-related efficiency losses by promoting air circulation and cooling. Robust mounting systems designed to withstand strong winds and potential hail damage are essential in this climate. Consider panels with tempered glass and reinforced frames for better weather resistance. Proper drainage systems around the installation area prevent water pooling that could create humidity issues or damage electrical components. Installing monitoring systems helps identify performance drops quickly, allowing for prompt maintenance responses. The moderate-to-good solar potential combined with proper installation techniques and maintenance protocols can make Jaguari a viable location for solar energy generation, particularly when systems are sized to account for the significant seasonal variation in output.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

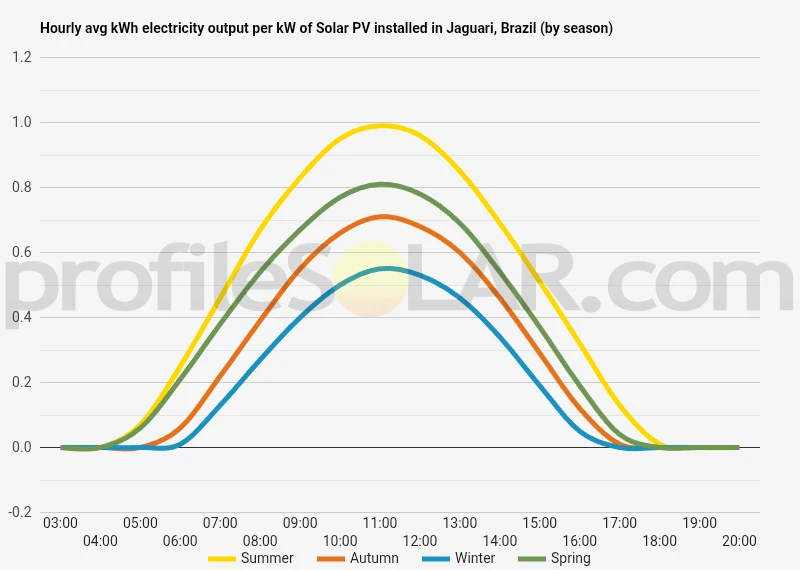

Solar output per kW of installed solar PV by season in Jaguari

Seasonal solar PV output for Latitude: -29.4521, Longitude: -54.6417 (Jaguari, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Jaguari, Brazil

To maximize your solar PV system's energy output in Jaguari, Brazil (Lat/Long -29.4521, -54.6417) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jaguari, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jaguari, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jaguari, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jaguari, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jaguari, Brazil

Topographical Features of the Jaguari Region

The area surrounding Jaguari in Rio Grande do Sul, Brazil, is characterized by gently rolling hills and undulating terrain typical of the southern Brazilian highlands. This region sits within the broader context of the Serra Geral formation, where the landscape transitions from the more mountainous areas to the east toward the flatter plains that extend westward into Argentina and Uruguay.

The topography around Jaguari features moderate elevation changes with hills that rise and fall in gradual slopes rather than steep inclines. The terrain is predominantly composed of grasslands interspersed with patches of native forest, creating a mosaic landscape that has been shaped by both geological processes and human agricultural activities over centuries. Small streams and tributaries flow through the valleys between these hills, eventually feeding into larger river systems that drain toward the Atlantic Ocean.

The soil composition in this area consists largely of volcanic-derived materials, resulting from ancient lava flows that covered much of southern Brazil. This geological foundation has created relatively stable ground conditions with good drainage characteristics. The region experiences a subtropical climate with distinct seasonal variations, and the rolling topography helps create microclimatic conditions that can vary significantly over short distances.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Jaguari would be the broader hilltops and gentle south-facing slopes that receive consistent solar exposure throughout the day. These elevated areas typically offer several advantages including reduced shading from surrounding terrain features and improved air circulation that helps maintain optimal panel temperatures.

The relatively flat plateau areas that occur between the more pronounced hills present excellent opportunities for solar development. These locations provide sufficient space for extensive panel arrays while maintaining reasonable construction costs due to minimal grading requirements. The stable geological conditions underlying these areas also reduce foundation concerns that might complicate installation in less suitable terrain.

Areas with existing agricultural use, particularly pasturelands on gentle slopes, could be readily converted to solar installations with minimal environmental disruption. The existing road network that serves the agricultural community would facilitate construction access and ongoing maintenance operations. Additionally, the proximity to existing electrical infrastructure used for rural properties could reduce connection costs for new solar facilities.

The western and southwestern areas around Jaguari tend to have more consistent topographical features with fewer dramatic elevation changes, making them particularly well-suited for large installations. These locations benefit from reduced complexity in panel mounting systems and allow for more standardized installation procedures across extensive areas. The generally open character of the landscape in these directions also minimizes potential shading issues from trees or other obstructions that might affect panel performance.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
