Solar Energy Potential in Jales, São Paulo, Brazil

Jales, São Paulo, Brazil, located at latitude -20.2852 and longitude -50.5601, offers a promising location for solar energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, with seasonal variations defined more by wet and dry periods rather than dramatic changes in daylight hours. The solar energy production in Jales shows moderate seasonal fluctuation. During summer months, solar panels can generate approximately 6.98 kWh per day for each kilowatt of installed capacity. This drops slightly to 5.86 kWh/day during autumn and reaches its lowest point in winter at 5.10 kWh/day. Production recovers in spring to 6.56 kWh/day. Despite the winter reduction, the overall year-round performance remains strong compared to many global locations.

Optimal Panel Installation

For maximum energy harvest throughout the year, fixed solar panels in Jales should be tilted at 19 degrees facing North. This specific angle has been calculated to optimize year-round solar production based on the location's position relative to the sun's path across the sky throughout the seasons. The most productive periods for solar generation in Jales are summer and spring, making these seasons particularly valuable for energy production. However, the relatively small difference between summer and winter production (approximately 27%) indicates that solar remains viable year-round.

Environmental Considerations

Several environmental factors could affect solar production in Jales:

• Seasonal rainfall during the wet season may reduce solar efficiency due to cloud cover and direct precipitation on panels
• Dust accumulation, particularly during dry periods, can gradually decrease panel efficiency
• High temperatures during summer months may slightly reduce photovoltaic efficiency

To mitigate these challenges, installation should incorporate regular cleaning systems or maintenance schedules to remove dust buildup. Selecting panels with good heat tolerance is advisable for this tropical climate. Additionally, slightly increasing the tilt angle beyond the optimal 19 degrees might help with natural cleaning during rainfall events, though this would marginally reduce overall production. The relatively consistent production figures across seasons suggest that battery storage requirements would be moderate compared to locations with more extreme seasonal variations, making Jales an economically favorable location for solar PV installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

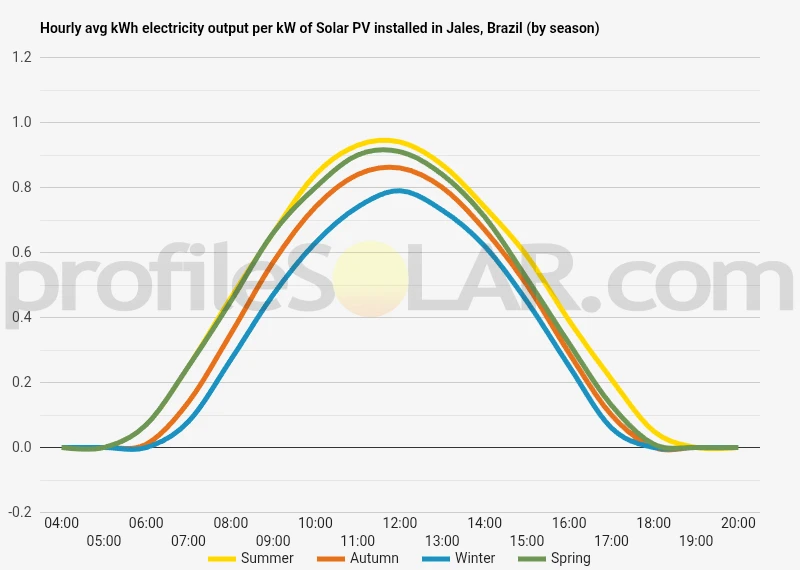

Solar output per kW of installed solar PV by season in Jales

Seasonal solar PV output for Latitude: -20.2852, Longitude: -50.5601 (Jales, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Jales, Brazil

To maximize your solar PV system's energy output in Jales, Brazil (Lat/Long -20.2852, -50.5601) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jales, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jales, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jales, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jales, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jales, Brazil

Topography of Jales, Brazil

Jales is situated in the northwestern portion of São Paulo state in Brazil, characterized by a predominantly rolling landscape with gentle hills and shallow valleys. The terrain around Jales features modest elevation changes, with altitudes ranging approximately between 400 to 500 meters above sea level. This region is part of the larger Paraná Plateau, which extends across much of southern Brazil. The landscape surrounding Jales consists of undulating plains interspersed with low hills, creating a gently rolling topography rather than dramatic relief. The area has been significantly modified by agricultural development, with much of the native vegetation cleared for farming purposes. The soil composition tends toward the reddish latosols typical of this region of Brazil, which are relatively fertile when properly managed. Several small rivers and streams traverse the region, including tributaries that eventually connect to the Grande River system. These waterways have carved shallow valleys throughout the landscape, adding subtle contours to the otherwise modest relief. The drainage pattern follows the gentle slope of the land, generally flowing in a westerly direction.

Optimal Areas for Solar PV Development

The topographical characteristics of the Jales region present favorable conditions for large-scale solar photovoltaic installations in several nearby areas. The gently rolling terrain offers multiple advantages for solar development, particularly on the slightly elevated plateaus and hill crests that receive consistent solar exposure throughout the day. The northwestern and western sectors surrounding Jales are particularly promising for solar development due to their slightly higher elevation and reduced risk of morning fog that can sometimes affect lower-lying areas. These higher ground locations typically experience less shading from surrounding terrain features, maximizing potential solar exposure. Areas with southerly aspects (facing north in the Southern Hemisphere) would be most advantageous for solar collection efficiency. The gradual slopes found approximately 5-10 kilometers west and northwest of Jales central area present ideal conditions, offering both the preferred orientation and minimal topographical obstacles that might cast shadows. The relatively stable soil conditions on the plateaus surrounding Jales also provide good construction foundations for solar infrastructure with minimal earthwork requirements. These areas typically require less extensive grading and preparation compared to more rugged terrains found in other regions of Brazil. Agricultural lands that are currently underutilized or of lower productivity value would present opportunities for solar development while minimizing conflict with high-value agricultural activities. Several such areas can be found in the western periphery of the Jales municipality, where the topography transitions to slightly more elevated terrain. The modest elevation changes throughout the region also facilitate easier access for construction and maintenance vehicles, an important logistical consideration for large-scale solar installations. The existing network of rural roads connecting to these potential development areas further enhances their suitability for solar PV implementation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
