Jardim Cacique, Brazil offers reasonably good conditions for year-round solar energy generation, though the location experiences notable seasonal variation in solar output. Located in the Southern Sub Tropics, this area sees its highest solar production during summer months and significantly reduced output during winter.

Seasonal Solar Performance

The solar energy production at Jardim Cacique varies considerably throughout the year. Summer delivers the strongest performance at 6.06 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. Spring follows as the second-best period with 5.33 kWh per day, while autumn produces 5.06 kWh per day. Winter presents the most challenging conditions for solar energy production, dropping to just 4.16 kWh per day per kW installed. This represents a significant 31% reduction compared to peak summer output, which property owners should factor into their energy planning and storage requirements. For maximum year-round energy production, solar panels at this location should be installed at a fixed tilt angle of 22 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the seasons and the Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Jardim Cacique and require careful consideration during installation:

• Heavy rainfall and humidity: The subtropical climate brings substantial precipitation, particularly during summer months, which can reduce solar irradiance and create efficiency losses
• Air pollution: Being located near São Paulo's metropolitan area, air quality issues may cause dust and particulate buildup on solar panels
• High temperatures: Excessive heat during summer can actually reduce solar panel efficiency despite increased sunlight hours
• Seasonal cloud cover: Extended cloudy periods, especially during winter, contribute to the significant seasonal production variations

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies prove beneficial:

• Proper drainage design: Ensure panels are mounted with adequate tilt and spacing to allow rainwater to wash away debris naturally
• Easy access for cleaning: Install panels with safe access points for regular cleaning to remove dust, pollution residue, and organic matter
• Quality mounting systems: Use corrosion-resistant mounting hardware designed for high-humidity environments
• Adequate ventilation: Allow sufficient airflow beneath panels to prevent overheating and maintain optimal operating temperatures
• Regular maintenance scheduling: Plan for more frequent cleaning and inspection cycles, particularly during high-pollution periods

Despite these challenges, Jardim Cacique remains a viable location for solar energy generation. The strong summer and spring performance can offset winter limitations, particularly when combined with proper system design and maintenance practices. Property owners should consider battery storage systems to help manage the seasonal variations in energy production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

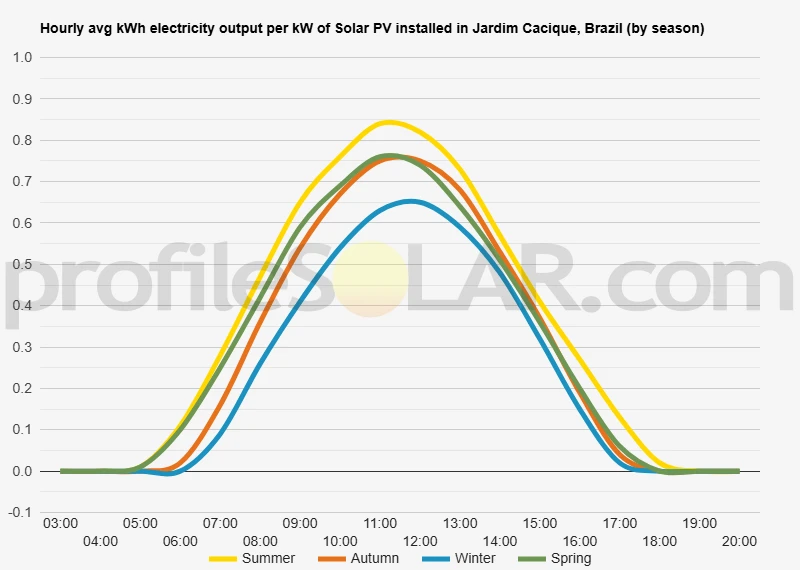

Solar output per kW of installed solar PV by season in Jardim Cacique

Seasonal solar PV output for Latitude: -23.5556, Longitude: -46.2924 (Jardim Cacique, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Jardim Cacique, Brazil

To maximize your solar PV system's energy output in Jardim Cacique, Brazil (Lat/Long -23.5556, -46.2924) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jardim Cacique, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jardim Cacique, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jardim Cacique, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jardim Cacique, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jardim Cacique, Brazil

Topographic Overview of Jardim Cacique

Jardim Cacique sits within the greater São Paulo metropolitan region, positioned on the Brazilian Highlands plateau at an elevation of approximately 760 meters above sea level. The terrain in this area is characterized by gently rolling hills and undulating landscapes typical of the Planalto Paulistano. The topography features a series of low ridges and shallow valleys that have been shaped by centuries of erosion from tributaries of the Tietê River system.

The immediate vicinity around Jardim Cacique displays relatively moderate slopes, with most gradients ranging between 5 and 15 degrees. This creates a landscape that is neither completely flat nor severely mountainous, but rather consists of broad, sweeping hillsides interspersed with flatter valley floors. The area benefits from good natural drainage due to these gentle slopes, which help prevent water accumulation during the rainy season.

The regional geology consists primarily of crystalline basement rocks covered by sedimentary deposits, creating stable ground conditions. The soil composition includes clay-rich latosols and argisols, which provide solid foundations for construction projects. Urban development has modified much of the natural topography through grading and terracing, particularly in residential and commercial areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie to the north and northeast of Jardim Cacique, where the terrain opens up into broader, less developed plateaus. These areas feature gentler slopes of 3-8 degrees, which are ideal for solar panel arrays as they require minimal grading while still providing adequate drainage. The expansive hilltops in these directions offer significant contiguous land parcels that could accommodate large solar farms without major topographic obstacles.

Southwest of the location, the Cotia plateau region presents another promising area for solar development. This elevated terrain maintains relatively consistent elevations with fewer steep transitions, making it well-suited for utility-scale solar installations. The area benefits from open exposure to southern sky angles and experiences less interference from surrounding topographic features that might create shading issues.

The valley areas immediately surrounding Jardim Cacique, while flatter, tend to be more densely developed and may experience occasional morning fog formation due to their lower elevation and proximity to water features. For this reason, the elevated plateau areas represent superior choices for solar development, as they maintain better atmospheric clarity and more consistent weather patterns throughout the day.

Areas to the east toward the Serra da Cantareira foothills should generally be avoided for large-scale solar projects due to increasing terrain complexity and steeper gradients. Similarly, locations closer to the urban core of São Paulo face constraints from existing infrastructure, higher land costs, and potential shading from buildings and other structures.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
