Solar Energy Potential in Jardim, Ceará, Brazil

Jardim, Ceará, Brazil, located in the tropical region at coordinates -7.6382, -39.2404, offers excellent conditions for solar energy production throughout the year. This location benefits from consistent sunlight typical of tropical regions, where seasonal variations are primarily defined by wet and dry periods rather than significant changes in daylight duration. The solar energy generation potential in Jardim shows impressive consistency across the meteorological seasons. During summer, each kilowatt of installed solar capacity produces about 5.83 kWh per day. Autumn sees a slight increase to 5.87 kWh/day, while winter performance improves further to 5.99 kWh/day. The most productive season is spring, with a substantial jump to 7.27 kWh/day per kilowatt of installed capacity.

Optimal Panel Installation

For those considering a fixed solar panel installation in Jardim, Ceará, the ideal tilt angle to maximize year-round energy production is 7 degrees facing North. This specific angle has been calculated by analyzing the daily solar elevation patterns at this latitude, weighted by the solar energy potential throughout the year. Spring stands out as the prime season for solar generation in Jardim, Ceará, with production levels significantly higher than other seasons. This makes March through May an especially valuable period for solar energy harvesting, though the relatively small variation between seasons indicates good production potential year-round.

Environmental Considerations

Despite Jardim's favorable solar conditions, several environmental factors could potentially impact solar energy production. The tropical climate brings heavy rainfall during the wet season, which can temporarily reduce solar efficiency due to cloud cover. Additionally, dust accumulation is common in this region, particularly during drier periods. To mitigate these challenges, solar installations in Jardim should consider:

• Regular cleaning schedules to remove dust buildup, particularly before and after the dry season
• Slightly steeper panel angles than the mathematical optimum during rainy seasons to facilitate natural cleaning by rainwater
• High-quality inverters that perform well under partial shading conditions common during the wet season
• Lightning protection systems, as tropical thunderstorms are frequent

With proper installation techniques and maintenance protocols, solar energy systems in Jardim can achieve excellent performance throughout the year, capitalizing on the region's abundant sunshine while managing the typical challenges of a tropical environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

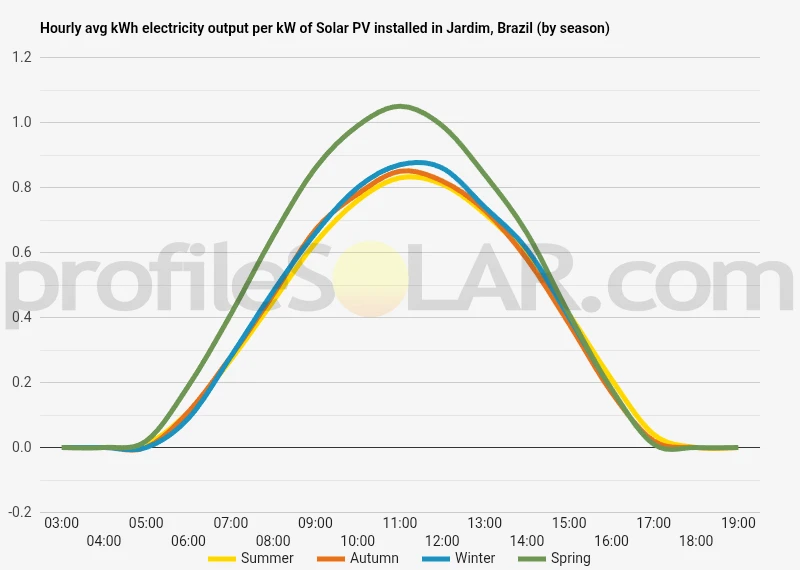

Solar output per kW of installed solar PV by season in Jardim

Seasonal solar PV output for Latitude: -7.6382, Longitude: -39.2404 (Jardim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Jardim, Brazil

To maximize your solar PV system's energy output in Jardim, Brazil (Lat/Long -7.6382, -39.2404) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jardim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jardim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	23° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jardim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jardim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jardim, Brazil

The topography surrounding Jardim, located in the northeastern Brazilian state of Ceará, is characterized by a diverse landscape of rolling hills, plateaus, and valleys typical of Brazil's semi-arid interior region known as the Sertão. Situated at approximately 700 meters above sea level, Jardim sits in a transitional zone between the higher elevations of the Chapada do Araripe plateau to the south and the lower-lying areas to the north. The Chapada do Araripe, a prominent geological feature in the region, creates a distinctive table mountain landscape with steep escarpments and flat tops. This plateau extends for approximately 180 kilometers along the border between the states of Ceará, Pernambuco, and Piauí, reaching elevations of up to 900 meters. The northern slopes of this formation influence the local topography around Jardim, creating a varied terrain with significant elevation changes.

Local Terrain Features

The immediate vicinity of Jardim features undulating terrain with moderate slopes interspersed with flatter areas. Small seasonal streams and watercourses cut through the landscape, creating natural drainage patterns that become more pronounced during the rainy season. The soil is predominantly reddish-brown, characteristic of the semi-arid region, with rocky outcrops visible in many areas. Vegetation in the region consists mainly of caatinga, a distinctive type of dry forest ecosystem unique to northeastern Brazil. This vegetation is adapted to the semi-arid conditions and includes drought-resistant shrubs, cacti, and small trees that shed their leaves during dry periods.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic development, the most suitable areas near Jardim would be the flatter portions of the landscape, particularly those on the higher elevations of the Chapada do Araripe plateau. These areas offer several advantages for solar energy production: The plateau regions provide relatively flat terrain that would minimize the costs associated with land preparation and construction. These elevated areas typically experience less atmospheric dust and haze compared to lower-lying regions, resulting in more consistent solar radiation reaching the panels. The northern and northeastern facing gentle slopes around the plateau edges could also be advantageous for solar installations, as they receive consistent sunlight throughout the day while potentially allowing for natural air circulation that helps keep panels cooler and more efficient. Areas to the west and northwest of Jardim, where the terrain gradually flattens out toward the neighboring municipalities, would also be suitable for large-scale solar developments. These regions offer good accessibility via existing road networks while providing sufficient space for extensive arrays of solar panels. It's worth noting that while the caatinga vegetation would need to be cleared for solar installation, the relatively sparse nature of this ecosystem in many areas means that site preparation could be less intensive compared to more densely forested regions. The semi-arid climate of the region, with its limited rainfall and abundant sunshine throughout the year, creates favorable conditions for solar energy production. However, developers would need to account for occasional intense rainfall events that could cause erosion on sloped terrain, making proper drainage design essential for any large-scale installation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
