Solar Energy Potential in Juazeiro, Bahia, Brazil

Juazeiro, Bahia, Brazil, located at latitude -11.2632 and longitude -43.0809, represents a highly favorable location for solar energy production throughout the year. This tropical location benefits from consistent sunlight patterns with relatively small seasonal variations in solar energy production. The seasonal solar electricity generation data shows remarkable consistency throughout the year. A solar PV installation in Juazeiro can expect to produce 6.55kWh per day for each kW of installed capacity during summer, 6.44kWh/day in autumn, 6.32kWh/day in winter, and 6.97kWh/day in spring. This minimal seasonal variation (with less than 10% difference between the highest and lowest producing seasons) indicates excellent year-round solar potential.

Optimal Panel Installation

For fixed solar panel installations in Juazeiro, Bahia, the ideal tilt angle to maximize year-round production is 11 degrees facing North. This specific angle has been calculated taking into account the location's latitude, daily solar elevation angles, and weighted by the daily PV potential based on NASA's solar irradiance data. This optimal tilt ensures panels capture the maximum possible sunlight throughout the year, accounting for the Earth's elliptical orbit. Spring emerges as the most productive season for solar generation in Juazeiro, Bahia, with nearly 7kWh per day per kW installed. While winter shows slightly lower production, the difference is minimal compared to many other global locations where winter production can drop dramatically.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Juazeiro:

• Dust accumulation: The semi-arid climate of the region can lead to significant dust buildup on panels, reducing efficiency by up to 25% if not addressed.
• Seasonal rainfall patterns: While beneficial for natural panel cleaning, heavy seasonal rains may cause temporary production drops.
• High temperatures: Excessive heat can reduce solar panel efficiency, as PV panels typically lose efficiency above 25°C.

To mitigate these challenges, several preventative measures are recommended: Regular panel cleaning systems should be implemented, either through automated solutions or scheduled maintenance. Installing panels with sufficient elevation from the ground helps reduce dust accumulation. Temperature-resistant panel technologies specifically designed for hot climates will maintain higher efficiency despite heat. Additionally, allowing adequate airflow beneath panels through proper mounting designs can help dissipate heat. With these considerations addressed, Juazeiro represents an exceptionally favorable location for solar energy production with consistent year-round generation potential and minimal seasonal variation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

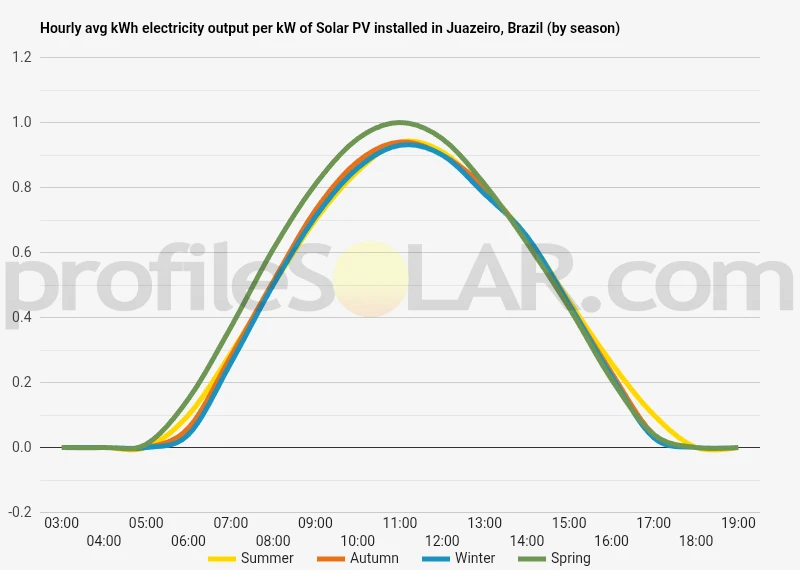

Solar output per kW of installed solar PV by season in Juazeiro

Seasonal solar PV output for Latitude: -11.2632, Longitude: -43.0809 (Juazeiro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 11° North in Juazeiro, Brazil

To maximize your solar PV system's energy output in Juazeiro, Brazil (Lat/Long -11.2632, -43.0809) throughout the year, you should tilt your panels at an angle of 11° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Juazeiro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Juazeiro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 11° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° South in Summer	17° North in Autumn	27° North in Winter	6° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Juazeiro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Juazeiro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Juazeiro, Brazil

The landscape surrounding Juazeiro, Brazil, situated in the northeastern state of Bahia, presents a diverse and distinctive topographical profile characteristic of Brazil's semi-arid region known as the Sertão. This area lies within the São Francisco River basin, with the river itself forming a natural boundary between the states of Bahia and Pernambuco. The terrain around Juazeiro is predominantly characterized by a flat to gently undulating landscape, with occasional hills and plateaus that punctuate the horizon. The elevation generally ranges between 300 to 500 meters above sea level, creating a landscape that alternates between expansive plains and modest elevations. The São Francisco River cuts through this terrain, creating a fertile valley that contrasts sharply with the surrounding drier areas.

Vegetation and Climate Context

The native vegetation reflects the region's semi-arid climate, consisting primarily of caatinga - a unique ecological formation featuring drought-resistant shrubs, cacti, and thorny bushes. During dry periods, this vegetation appears sparse and brownish-gray, transforming remarkably to vibrant green following rainfall. The soil composition varies across the region but tends toward sandy and rocky substrates with limited organic content. These soil conditions, combined with the relatively flat terrain in many areas, create specific considerations for land use planning, including solar energy development.

Optimal Areas for Solar PV Development

Several factors make the Juazeiro region particularly attractive for large-scale solar photovoltaic installations. The relatively flat plains to the west and southwest of Juazeiro present ideal conditions for solar PV deployment. These areas offer minimal topographical barriers, reducing construction complexities and costs associated with land preparation. The elevated plateaus found within approximately 30-50 kilometers of Juazeiro also merit consideration for solar development. These higher elevations potentially receive less atmospheric interference and dust, which can enhance solar panel efficiency. Additionally, these plateaus typically feature less agriculturally productive land, minimizing potential land-use conflicts. Areas along the western corridor extending toward Petrolina are particularly promising. This region combines favorable topography with proximity to existing transmission infrastructure, an essential consideration for utility-scale solar projects. The gently sloping terrain in this corridor provides natural drainage while requiring minimal earthwork for installation. The semi-arid climate conditions that define this region contribute significantly to its solar potential. The limited cloud cover throughout much of the year creates ideal conditions for solar energy harvesting. The rainfall patterns, characterized by brief but intense precipitation events followed by extended dry periods, align well with solar energy generation needs, as panel cleaning can be scheduled to coincide with natural rainfall events. It's worth noting that while the immediate river valley offers flat terrain, these areas are generally more valuable for agriculture due to water access and should likely be preserved for food production rather than energy generation. Instead, the vast expanses of caatinga-covered plains that extend beyond the agricultural zones represent more appropriate targets for large-scale solar development. The combination of gentle topography, abundant land availability, and minimal competing land uses makes the broader Juazeiro region an exceptionally promising location for utility-scale solar PV development within Brazil's growing renewable energy portfolio.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
