Juiz de Fora, Brazil, located at latitude -21.744 and longitude -43.434, presents a favorable environment for solar energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Seasonal Solar Performance

Solar panel efficiency in Juiz de Fora varies across the seasons, but remains relatively high year-round. Summer yields the highest output at 6.02 kWh per day for each kilowatt of installed capacity. Spring and autumn offer similar performance, with 5.17 kWh/day and 5.28 kWh/day respectively. Even during winter, the region maintains a respectable 4.61 kWh/day output. The consistent solar radiation throughout the year makes Juiz de Fora an excellent location for solar PV installations. While summer naturally provides peak performance, the difference between seasons is not as dramatic as in locations further from the equator.

Optimal Panel Positioning

For fixed solar panel installations in Juiz de Fora, the ideal tilt angle to maximize year-round energy production is 20 degrees facing North. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Juiz de Fora's climate is generally conducive to solar energy production, there are a few factors to consider: 1. Rainfall: The region experiences a wet season, typically from October to March. Heavy rain can temporarily reduce solar panel efficiency. 2. Cloud cover: Increased cloudiness during the wet season may impact solar energy generation. To mitigate these factors, consider the following preventative measures:

• Install high-quality, water-resistant solar panels
• Ensure proper drainage systems to prevent water accumulation on panels
• Regular cleaning and maintenance to remove dust and debris
• Use microinverters or power optimizers to minimize the impact of partial shading

Overall, Juiz de Fora offers an ideal location for solar PV installations, with consistent year-round performance and manageable environmental challenges. The tropical climate provides ample sunlight, making it a prime spot for harnessing solar energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

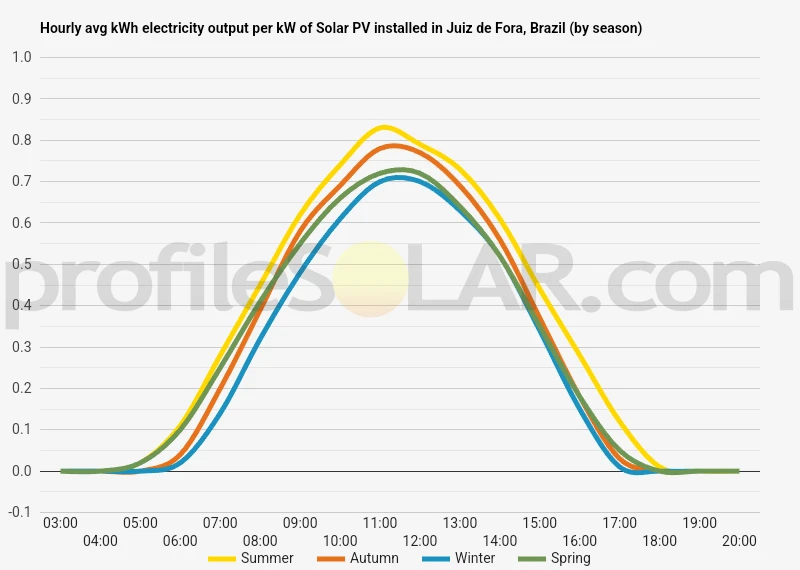

Solar output per kW of installed solar PV by season in Juiz De Fora

Seasonal solar PV output for Latitude: -21.744, Longitude: -43.434 (Juiz De Fora, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Juiz De Fora, Brazil

To maximize your solar PV system's energy output in Juiz De Fora, Brazil (Lat/Long -21.744, -43.434) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Juiz De Fora, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Juiz De Fora, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Juiz De Fora, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Juiz De Fora, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Juiz De Fora, Brazil

The area around Juiz de Fora, Brazil, is characterized by a diverse and hilly topography typical of the Atlantic Forest region. The city itself is situated in a valley surrounded by rolling hills and small mountains. This landscape is part of the larger Serra da Mantiqueira mountain range, which extends through several Brazilian states.

The terrain in and around Juiz de Fora features numerous hills with varying elevations, creating a patchwork of slopes and plateaus. Many of these hills are covered with lush vegetation, though some areas have been cleared for agriculture or urban development. The Paraibuna River flows through the city, further shaping the local topography and creating some flatter areas along its banks.

For large-scale solar PV installations, the most suitable areas nearby would likely be found on the flatter plateaus or gentler slopes of the surrounding hills. Ideally, these locations would have good sun exposure throughout the day and minimal shading from nearby terrain or vegetation. Some of the cleared agricultural lands to the north and east of the city might offer potential sites, as they tend to have more open, level ground.

However, it's important to note that the region's hilly nature and abundant vegetation may present challenges for large-scale solar projects. The best locations would need to balance factors such as:

• Sufficient flat or gently sloping land
• Minimal environmental impact and deforestation
• Proximity to existing power infrastructure
• Accessibility for construction and maintenance

Areas to the south and west of Juiz de Fora, where the terrain becomes more mountainous, would generally be less suitable for large-scale solar installations due to the steeper slopes and potential shading issues. However, smaller-scale or distributed solar projects might still be feasible in these areas, taking advantage of suitable rooftops or small clearings.

Overall, while the topography around Juiz de Fora presents some challenges for large-scale solar PV, there are likely to be suitable areas within a reasonable distance of the city, particularly in the more open, flatter regions to the north and east. Detailed site surveys and environmental assessments would be necessary to identify the most appropriate locations for such projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
