Lagamar, Minas Gerais, Brazil presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates -17.9771, -46.7009, this region benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Lagamar demonstrates strong and relatively stable performance across all seasons. Summer delivers the highest production at 6.41 kWh per day per kW of installed solar capacity, while spring follows closely at 6.32 kWh per day per kW. Autumn maintains solid output at 6.14 kWh per day per kW, and even winter, the lowest-producing season, still generates a respectable 5.68 kWh per day per kW. This seasonal variation of less than 13% between the highest and lowest production periods indicates exceptional consistency for solar energy generation. The ideal times for solar generation are summer and spring, though the relatively small seasonal differences mean that solar installations will perform well throughout the entire year. For optimal energy capture, fixed solar panels at this location should be tilted at 18 degrees facing north. This angle maximizes total year-round production by accounting for the sun's path throughout the seasons and the Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several factors could potentially impact solar energy production in Lagamar and require consideration during installation planning. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges for solar installations. Heavy rainfall and high humidity can reduce solar panel efficiency and create maintenance issues. Extended periods of cloud cover during rainy seasons can temporarily decrease energy output, though the seasonal data suggests this impact is manageable. Dust accumulation presents another significant concern, particularly during dry seasons when winds can deposit substantial amounts of particulate matter on solar panels. This buildup can significantly reduce energy production by blocking sunlight from reaching the photovoltaic cells. The tropical environment also supports abundant vegetation growth, which could create shading issues if not properly managed during the planning and installation phases.

Preventative Measures and Installation Strategies

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for natural cleaning during rainfall
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Choose high-quality mounting systems designed to withstand tropical weather conditions including heavy rains and potential strong winds
• Conduct thorough site surveys to identify and remove potential shading from vegetation before installation
• Consider anti-soiling coatings on panels to reduce dust adhesion and make cleaning more effective

Overall Assessment

Despite these potential challenges, Lagamar represents a highly favorable location for solar energy generation. The consistent year-round production levels and relatively small seasonal variation make it an ideal candidate for both residential and commercial solar installations. With proper planning and maintenance protocols, the environmental factors can be effectively managed to ensure optimal energy production throughout the year. The location's tropical position provides the fundamental advantage of consistent solar radiation, while the identified challenges are largely manageable through appropriate installation techniques and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

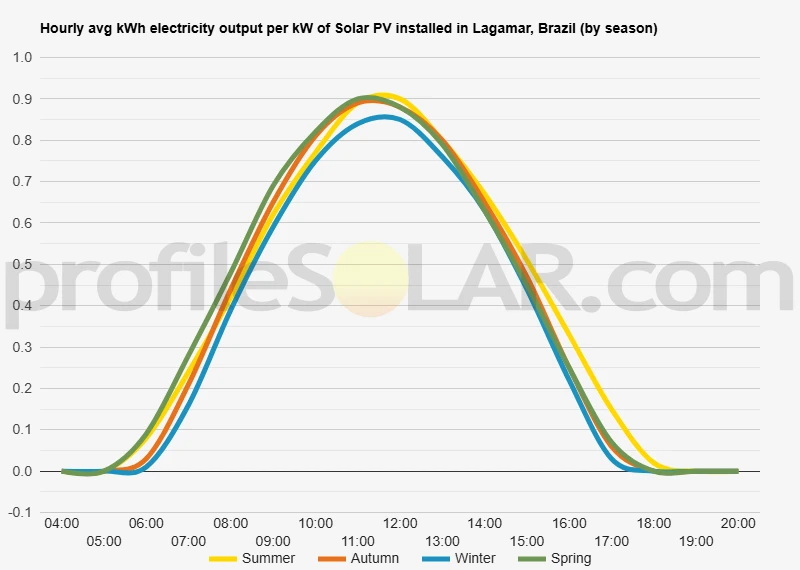

Solar output per kW of installed solar PV by season in Lagamar

Seasonal solar PV output for Latitude: -17.9771, Longitude: -46.7009 (Lagamar, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 18° North in Lagamar, Brazil

To maximize your solar PV system's energy output in Lagamar, Brazil (Lat/Long -17.9771, -46.7009) throughout the year, you should tilt your panels at an angle of 18° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lagamar, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lagamar, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 18° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	24° North in Autumn	34° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lagamar, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lagamar, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lagamar, Brazil

Topographical Features of the Lagamar Region

The area surrounding Lagamar in Minas Gerais, Brazil, is characterized by gently rolling hills and elevated plateaus typical of the Brazilian Highlands. This region sits at approximately 850 meters above sea level, forming part of the expansive Cerrado biome that dominates much of central Brazil. The landscape features a series of undulating terrain with moderate elevation changes, creating a mosaic of hills, valleys, and relatively flat upland areas.

The topography is generally well-drained, with numerous small streams and seasonal watercourses cutting through the landscape. The soil composition consists primarily of weathered crystalline rocks and sedimentary formations, creating a stable foundation for development. The terrain slopes are typically gentle to moderate, rarely exceeding 15-20 degrees, which makes the area accessible for construction and infrastructure development.

Vegetation in the region consists mainly of Cerrado savanna, featuring scattered trees, shrubs, and grasslands. This relatively open landscape provides excellent visibility and minimal shading, with few dense forest areas that would obstruct solar exposure. The climate is characterized by distinct wet and dry seasons, with the dry season extending from May through September providing consistently clear skies.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the elevated plateaus and gently sloping hillsides south and southeast of Lagamar. These areas offer several advantages including stable, well-drained soils, minimal vegetation clearing requirements, and excellent accessibility via existing rural roads. The elevated positions also provide natural drainage and reduced risk of flooding during the rainy season.

Particularly promising are the broad, flat-topped hills located approximately 5-15 kilometers from the town center, where the terrain is sufficiently level to minimize grading costs while maintaining good drainage characteristics. These locations benefit from consistent wind patterns that help cool solar panels and improve efficiency, while remaining close enough to existing electrical infrastructure to reduce transmission costs.

Areas with southern exposure on gentle slopes of 3-8 degrees are especially well-suited for solar installations, as they maximize exposure to the sun throughout the day while facilitating natural water runoff. The relatively sparse vegetation in these zones means minimal environmental impact and reduced land preparation costs. Additionally, these locations are typically removed from prime agricultural land, reducing potential conflicts with farming activities that are important to the local economy.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
