Lages, Santa Catarina, Brazil, situated in the Southern Sub Tropics at latitude -27.9449 and longitude -50.3525, offers a moderate environment for solar PV energy generation throughout the year, with notable seasonal variations.

Solar energy production in Lages demonstrates significant fluctuations across the seasons. Summer provides the highest yield at 6.54kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 5.29kWh/day, while autumn generates 4.64kWh/day. Winter shows the lowest production at 3.45kWh/day per kilowatt of installed solar capacity.

Optimal Panel Positioning

For fixed solar panel installations in Lages, Santa Catarina, the ideal tilt angle to maximize year-round energy production is 25 degrees facing North. This angle optimizes solar capture across all seasons, balancing between the higher summer sun path and lower winter sun position.

Environmental and Weather Considerations

Several factors may impact solar energy production in Lages. The region experiences a humid subtropical climate with rainfall distributed throughout the year, which can temporarily reduce solar efficiency. During winter months, occasional frost and fog may further limit production during early morning hours.

The area also experiences periodic cloud cover associated with weather systems moving through southern Brazil, potentially reducing direct sunlight exposure. Additionally, the region's topography includes some hilly terrain that might create localized shading depending on the specific installation site.

Preventative Measures

To optimize solar production in Lages despite these challenges, several preventative measures can be implemented:

• Install panels with anti-reflective coatings that perform better in diffuse light conditions common during cloudy periods
• Utilize micro-inverters or power optimizers to minimize production losses when parts of the array experience shading
• Implement automated cleaning systems or regular maintenance schedules to address dust and pollen accumulation, particularly during spring months
• Consider elevated mounting systems to reduce morning fog effects and potential snow accumulation in winter
• Conduct thorough site assessments to identify and mitigate potential shading from surrounding terrain or vegetation

With proper system design and preventative measures, solar installations in Lages can achieve reasonable energy production despite seasonal variations, with summer and spring being particularly advantageous periods for generation.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

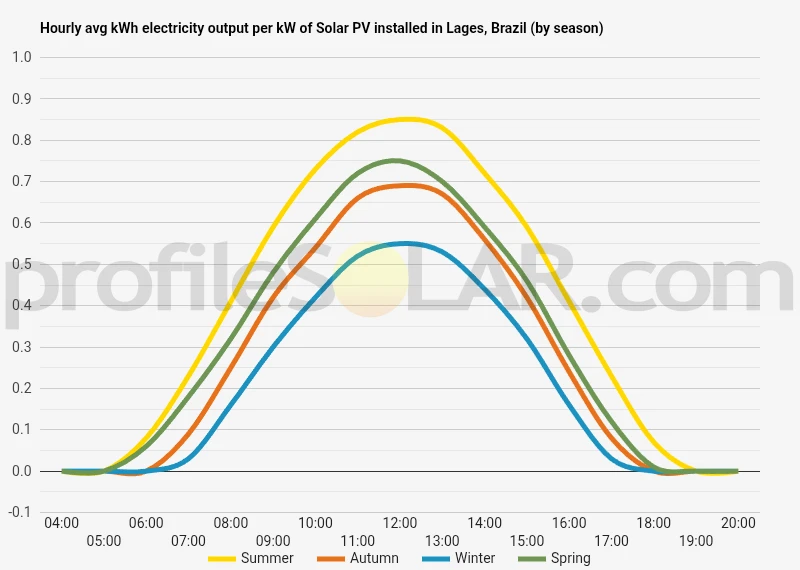

Solar output per kW of installed solar PV by season in Lages

Seasonal solar PV output for Latitude: -27.9449, Longitude: -50.3525 (Lages, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Lages, Brazil

To maximize your solar PV system's energy output in Lages, Brazil (Lat/Long -27.9449, -50.3525) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lages, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lages, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lages, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lages, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lages, Brazil

The city of Lages is situated in the mountainous region of the state of Santa Catarina in southern Brazil. The topography around Lages is characterized by a varied landscape of rolling hills, plateaus, and valleys, with the city itself sitting at an elevation of approximately 900 meters above sea level. This region is part of the larger Serra Geral formation, which creates a distinctive highland environment different from Brazil's coastal areas.

Plateau and Mountain Features

The area surrounding Lages is dominated by the Southern Brazilian Plateau (Planalto Meridional), which forms part of the Atlantic Plateau. This plateau features undulating terrain with moderate slopes in many areas, interspersed with more pronounced hills and occasional steep escarpments. The plateau gradually rises from east to west, with some surrounding peaks reaching elevations of over 1,200 meters. The Serra Catarinense (Santa Catarina Mountain Range) influences the broader regional topography, creating a mixture of highland meadows known locally as "campos de cima da serra" and areas of mixed forest. These elevated plains are punctuated by river valleys that have carved into the landscape over millennia.

River Systems and Valleys

The topography is further defined by several river systems, most notably the Rio Canoas and its tributaries, which have shaped valleys throughout the region. These waterways have created natural depressions and corridors through the otherwise elevated terrain. The Rio Caveiras also flows through the municipality, contributing to the formation of fertile valleys contrasting with the higher plateau areas. These river valleys typically run in a general east-west direction, creating natural divisions in the landscape. The valleys tend to be broader and more gently sloped in some areas while becoming narrower with steeper sides in others, particularly where they cut through more resistant rock formations.

Vegetation and Land Cover

The natural vegetation of the region reflects the topographic variation. The higher elevation areas traditionally supported Araucaria forests (featuring the distinctive Brazilian pine tree), though much of this has been modified by human activity. The landscape now presents a mosaic of remaining forest patches, reforested areas, grasslands, and agricultural lands. This mixed land cover pattern follows the topographic contours, with forests often remaining on steeper slopes and in river valleys, while plateaus and gentler slopes have been converted to agricultural use or pastureland.

Areas Suited for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Lages would be found on the extensive plateau regions that feature: 1. Relatively flat or gently sloping terrain with southern facing aspects minimized (as southern exposures receive less direct sunlight in the Southern Hemisphere) 2. Open landscapes with minimal natural shading from topographic features such as mountains or deep valleys 3. Elevated areas that experience less fog and cloud cover than the valleys The northern portions of the municipality, where the plateau extends with minimal interruption, offer particularly promising locations. These areas combine favorable topography with good solar exposure. The more level sections of the plateau between 800-1,000 meters elevation present the most practical options for development, as they avoid the steeper slopes that would complicate construction and increase costs. Areas to avoid would include the steeper escarpments, deeply incised river valleys, and locations with significant morning fog persistence (which tends to occur more frequently in the lower valley areas). The southeastern portions of the region, where the terrain becomes more dramatically dissected by river systems, would generally be less suitable for large-scale installations. The western plateau extensions beyond Lages also merit consideration, as they feature extensive areas of relatively uniform, gently rolling terrain that would minimize earthwork requirements for solar array installation while maximizing exposure to the sun's path across the sky.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
