Lago do Junco, Brazil presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates -4.6059, -45.0543, this area benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than dramatic temperature changes.

Solar Energy Production Performance

The solar energy output at Lago do Junco demonstrates remarkably consistent performance across all seasons. Winter produces the highest energy generation at 5.95 kWh per day per kW of installed solar capacity, followed closely by autumn at 5.84 kWh/day. Spring generates 5.78 kWh/day, while summer produces 5.28 kWh/day per kW installed. This pattern is typical for locations in the Southern Hemisphere tropics, where winter months often provide clearer skies and optimal sun angles. The relatively small variation between seasons (only 0.67 kWh difference between the highest and lowest performing seasons) makes this location highly reliable for consistent solar energy production throughout the year.

Optimal Installation Configuration

For maximum year-round energy production at Lago do Junco, solar panels should be installed at a fixed tilt angle of 5 degrees facing North. This shallow angle is calculated to optimize total annual solar output by accounting for the location's proximity to the equator and the sun's path throughout the year.

Environmental and Weather Challenges

Several factors could potentially impact solar energy production at this tropical location:

• High humidity and frequent rainfall: The tropical climate brings periods of heavy precipitation that can reduce solar irradiance and create challenges for equipment
• Dust and debris accumulation: Tropical environments often have high levels of airborne particles, pollen, and organic matter that can accumulate on panel surfaces
• Cloud cover during wet seasons: Extended periods of overcast skies can temporarily reduce energy output
• Extreme heat: High temperatures can reduce solar panel efficiency

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented: Regular cleaning systems are essential, either through automated washing systems or scheduled manual cleaning to remove dust, pollen, and organic debris. Installing panels with adequate spacing and ventilation helps manage heat buildup and allows for better air circulation. Choosing high-quality panels with good low-light performance and temperature coefficients will help maintain efficiency during cloudy periods and high-temperature conditions. Proper drainage systems around the installation site prevent water accumulation that could damage equipment or create safety hazards. Using corrosion-resistant mounting systems and electrical components designed for tropical climates ensures long-term reliability. Regular maintenance schedules should account for the accelerated wear that can occur in humid, tropical environments. Despite these considerations, Lago do Junco remains an excellent location for solar energy generation, with consistent year-round production making it highly suitable for both residential and commercial solar installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

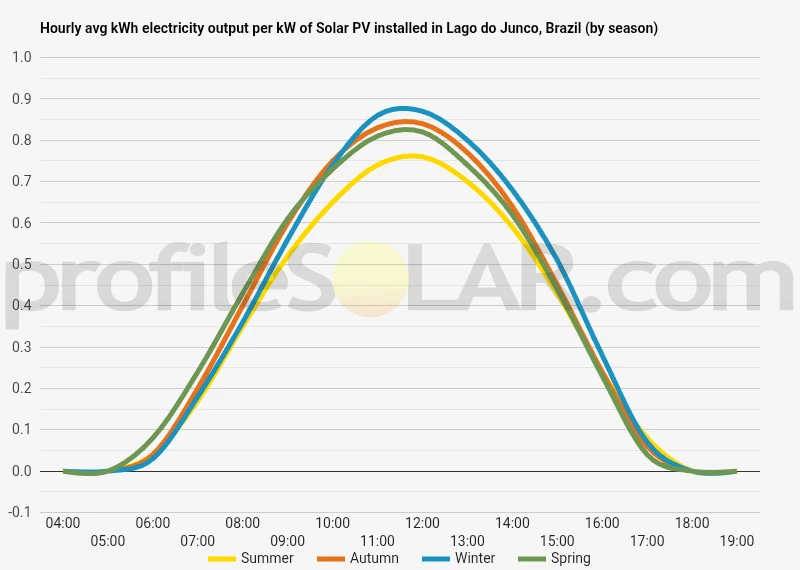

Solar output per kW of installed solar PV by season in Lago Do Junco

Seasonal solar PV output for Latitude: -4.6059, Longitude: -45.0543 (Lago Do Junco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Lago Do Junco, Brazil

To maximize your solar PV system's energy output in Lago Do Junco, Brazil (Lat/Long -4.6059, -45.0543) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lago Do Junco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lago Do Junco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	11° North in Autumn	20° North in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lago Do Junco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lago Do Junco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lago Do Junco, Brazil

Topographical Features of Lago do Junco Region

Lago do Junco sits within the northeastern Brazilian state of Maranhão, positioned in a transitional landscape between the Amazon basin and the semi-arid Caatinga region. The topography surrounding this municipality is characterized by gently rolling hills and relatively flat terrain, with elevations typically ranging from 200 to 400 meters above sea level. The landscape features broad, undulating plains interspersed with low ridges and shallow valleys that create a moderately varied but generally accessible terrain.

The region experiences a gradual transition from the wetter Atlantic forest remnants in the north to drier savanna-like cerrado vegetation toward the south and east. This creates distinct microclimates and soil conditions across relatively short distances. The area contains numerous seasonal watercourses and small lakes, with the terrain generally sloping toward these water features, creating natural drainage patterns that influence local vegetation and land use.

Rocky outcrops of crystalline basement rock occasionally punctuate the landscape, though these are typically small and scattered rather than forming major geological barriers. The predominant soils are latosols and argisols, which provide reasonable stability for construction while maintaining adequate drainage characteristics.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the elevated plateaus and gentle ridges that characterize much of the terrain south and southeast of Lago do Junco. These areas offer several advantages including naturally level or slightly sloped surfaces that minimize grading requirements, good drainage to prevent waterlogging during the wet season, and elevation that provides favorable wind patterns for natural cooling of solar panels.

The broad valley floors and plains areas, while appearing flat and accessible, may present challenges due to seasonal flooding and higher humidity levels from proximity to water features. However, the slightly elevated terraces adjacent to these valleys could provide excellent development sites, combining the benefits of level terrain with improved drainage and reduced moisture-related maintenance issues.

Areas with sparse natural vegetation cover, particularly those transitioning toward cerrado characteristics, would be preferable from both environmental and practical perspectives. These locations typically have fewer large trees requiring removal and less dense root systems that could complicate foundation work. The crystalline rock outcrops, while unsuitable for panel placement themselves, often indicate areas of good geological stability in their immediate vicinity.

The terrain's gentle nature throughout most of the region means that large contiguous areas could potentially be developed without significant topographical barriers, allowing for efficient layout designs and maintenance access roads. The natural drainage patterns should be carefully considered to ensure that solar installations work with rather than against the existing water flow, particularly during the more intense rainfall periods that characterize the regional climate.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
