Solar Energy Potential in Lagoa Vermelha, Rio Grande do Sul, Brazil

Lagoa Vermelha, Rio Grande do Sul, Brazil, situated in the Southern Sub Tropics at latitude -28.2161, longitude -51.4723, offers promising conditions for solar energy generation, though with notable seasonal variations. This location experiences significant differences in solar electricity production throughout the year, making certain seasons more favorable than others.

Seasonal Solar Production

The solar energy potential in Lagoa Vermelha follows a predictable seasonal pattern:

• Summer: Excellent production at 7.15 kWh per day for each kilowatt of installed capacity
• Spring: Good production at 5.90 kWh per day per kilowatt
• Autumn: Moderate production at 4.83 kWh per day per kilowatt
• Winter: Lower production at 3.55 kWh per day per kilowatt

This pattern shows that summer months are clearly the most productive period, generating approximately twice the electricity of winter months. Spring follows as the second most productive season, while autumn offers moderate generation potential.

Optimal Panel Installation

For maximum year-round electricity production in Lagoa Vermelha, Rio Grande do Sul, fixed solar panels should be installed at a 25-degree tilt facing North. This specific angle has been calculated to optimize annual solar capture based on the location's position in the Southern Hemisphere, accounting for the Earth's elliptical orbit and the weighted solar potential throughout the year.

Environmental and Weather Considerations

Several local factors could potentially impact solar production in Lagoa Vermelha. The region experiences a humid subtropical climate with occasional heavy rainfall and thunderstorms, particularly during summer months. These weather events can temporarily reduce solar output during what would otherwise be the most productive season. Additionally, morning fog can be common in certain parts of the year, potentially delaying peak production until later in the day. The area may also experience occasional hail storms which pose a physical risk to solar installations.

Preventative Measures

To maximize energy production despite these challenges, several preventative measures can be implemented: Installing high-quality, hail-resistant solar panels with tempered glass is advisable given the potential for severe weather. Proper drainage systems around ground-mounted installations will help manage heavy rainfall events. Regular cleaning schedules should be established to remove dust and pollen accumulation, which is common in this subtropical region. An elevated installation height can help minimize the impact of morning fog by positioning panels above low-lying mist. Finally, implementing a monitoring system will allow for quick identification of any production issues related to weather events or panel damage.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

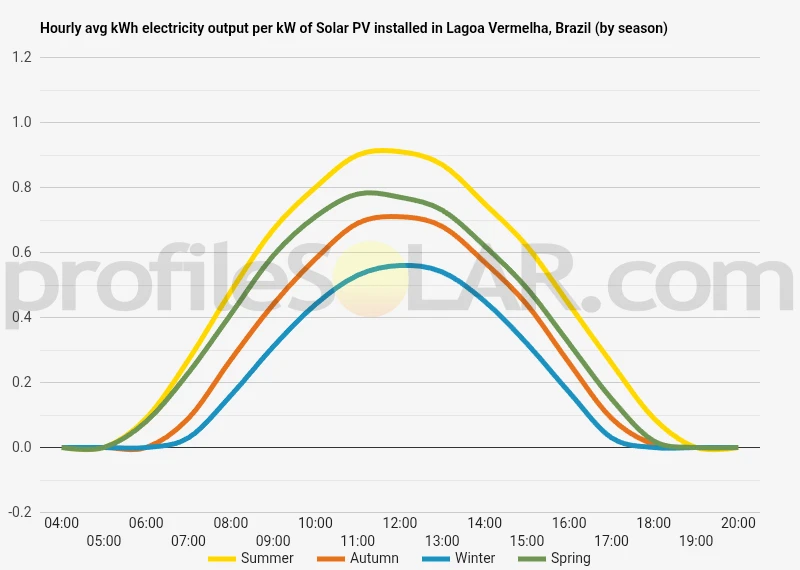

Solar output per kW of installed solar PV by season in Lagoa Vermelha

Seasonal solar PV output for Latitude: -28.2161, Longitude: -51.4723 (Lagoa Vermelha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Lagoa Vermelha, Brazil

To maximize your solar PV system's energy output in Lagoa Vermelha, Brazil (Lat/Long -28.2161, -51.4723) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lagoa Vermelha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lagoa Vermelha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lagoa Vermelha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lagoa Vermelha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lagoa Vermelha, Brazil

The topography surrounding Lagoa Vermelha, Brazil, is characterized by gently rolling hills and plateaus typical of the southern Brazilian highlands. Located in the northeastern part of Rio Grande do Sul state, this region sits at an elevation of approximately 800 meters above sea level, forming part of what is locally known as the Campos de Cima da Serra (Fields at the Top of the Mountain Range).

Landscape Features

The terrain around Lagoa Vermelha consists of undulating grasslands interspersed with patches of Araucaria forests (Brazilian pine). The region marks a transition zone between the higher plateaus of Santa Catarina state to the north and the gradually descending terrain toward the south. This transitional character creates a varied topography with modest hills, shallow valleys, and occasional plateaus. Water features are common throughout the area, with numerous small lakes and streams cutting through the landscape. The namesake "Red Lagoon" (Lagoa Vermelha) itself reflects the reddish soil coloration that is characteristic of parts of this region. The soil is predominantly derived from basaltic rock, resulting from ancient volcanic activity that formed much of southern Brazil's geology. This creates a reddish-brown soil that, while reasonably fertile for agriculture, also provides stable ground for infrastructure development.

Solar PV Potential Areas

Several aspects of the surrounding topography make certain areas near Lagoa Vermelha particularly suitable for large-scale solar photovoltaic installations: The elevated plateaus to the north and northeast of the town offer excellent potential for solar farms. These areas combine relatively flat terrain with high elevation, reducing concerns about shadowing from surrounding features. The open grassland areas, locally known as "campos," provide expansive, unobstructed spaces ideal for large panel arrays. The gently sloping south-facing hills approximately 10-15 kilometers to the northwest of Lagoa Vermelha present another promising zone. These areas receive consistent solar exposure throughout the day while offering natural drainage that helps prevent water accumulation around installation foundations. Areas along the BR-285 highway corridor, particularly the more elevated sections between Lagoa Vermelha and Caseiros, combine favorable topography with proximity to existing transportation infrastructure. This combination of flat to gently rolling terrain with accessibility makes these locations logistically advantageous for solar development. The rural districts southeast of the urban center, where the landscape transitions to slightly lower elevations, offer extensive agricultural lands that could potentially accommodate dual-use installations, allowing for both solar generation and continued agricultural activities beneath and between panel arrays. It's worth noting that while the region experiences seasonal variation in climate, the relatively high elevation of the entire area contributes to clearer atmospheric conditions than coastal regions, enhancing overall solar radiation reception. The stable basaltic bedrock also provides solid foundations for mounting systems without excessive groundwork requirements. The modest wind patterns typical of this inland region further enhance the suitability for solar installations, as extreme wind loads are less of a concern for panel stability and maintenance compared to more exposed coastal or mountainous locations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
