Lajeado, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics at coordinates -29.4221, -52.0409, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 7.29 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring offers good production at 5.78 kWh per day per kW, while autumn drops to 4.68 kWh per day per kW. Winter presents the most challenging conditions with only 3.29 kWh per day per kW of output. This seasonal pattern means that summer produces more than twice the energy of winter months. The ideal times for solar generation at this location are clearly the warmer months, with summer being peak season and spring providing strong secondary production.

Optimal Panel Configuration

For maximum year-round energy production at Lajeado, Rio Grande do Sul, solar panels should be installed at a fixed tilt angle of 25 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in this Southern Sub-tropical location could significantly impact solar panel performance:

• High humidity and moisture: The subtropical climate brings elevated humidity levels that can reduce panel efficiency and promote corrosion of electrical components
• Intense summer heat: While summer provides peak solar irradiance, excessive heat can actually decrease panel efficiency as photovoltaic cells perform less effectively at very high temperatures
• Seasonal weather patterns: The region may experience heavy rainfall, storms, or extended cloudy periods that can substantially reduce solar output during certain times of the year
• Dust and debris accumulation: Rural and agricultural areas around Lajeado may generate dust that settles on panels, reducing their ability to capture sunlight effectively

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Enhanced ventilation: Install panels with adequate spacing behind them to allow air circulation, which helps cool the panels and maintain efficiency during hot summer months
• Corrosion-resistant materials: Use marine-grade mounting hardware and electrical components designed to withstand high humidity and moisture exposure
• Regular cleaning systems: Implement easy-access mounting or automated cleaning systems to regularly remove dust, pollen, and debris that accumulate on panel surfaces
• Proper drainage: Ensure mounting systems allow water to drain quickly and completely to prevent standing water and potential electrical issues
• Quality inverters with temperature management: Choose inverters rated for high-temperature operation and install them in shaded, well-ventilated locations

Despite these challenges, Lajeado's location offers reasonable solar potential, particularly during the warmer months. With proper installation techniques and regular maintenance, solar installations can perform well at this location, though owners should expect significantly reduced output during winter months and plan their energy needs accordingly.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

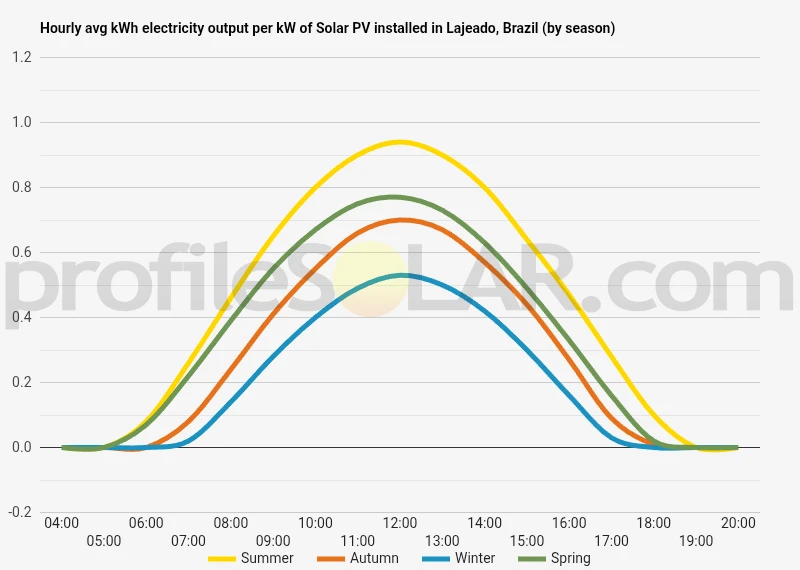

Solar output per kW of installed solar PV by season in Lajeado

Seasonal solar PV output for Latitude: -29.4221, Longitude: -52.0409 (Lajeado, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Lajeado, Brazil

To maximize your solar PV system's energy output in Lajeado, Brazil (Lat/Long -29.4221, -52.0409) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lajeado, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lajeado, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	35° North in Autumn	45° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lajeado, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lajeado, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lajeado, Brazil

Topographical Features of Lajeado and Surroundings

Lajeado sits in the Taquari Valley of Rio Grande do Sul, Brazil's southernmost state, positioned within a landscape characterized by gently rolling hills and river valleys. The city is located along the Taquari River, which flows northeast toward the Guaíba River system. The terrain around Lajeado features moderate elevation changes, with the urban area itself sitting at approximately 60 meters above sea level, while the surrounding hills rise to elevations of 200-400 meters.

The topography of this region is part of the larger Serra Geral formation, though Lajeado itself occupies a relatively flat section of the valley floor. The landscape transitions from the flatter valley bottoms to more undulating terrain as elevation increases toward the east and west. Agricultural lands dominate much of the surrounding area, with fields of soybeans, corn, and tobacco covering both the valley floor and the gentler slopes of the hills.

The Taquari River valley creates natural corridors of relatively flat terrain that extend both northeast and southwest from Lajeado. These valley systems are interspersed with low ridges and hills that generally run in a northeast-southwest orientation, following the regional geological structure. The climate in this area is subtropical, with well-distributed rainfall throughout the year supporting the region's agricultural activities.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Lajeado would be the extensive flat to gently sloping agricultural areas that dominate the Taquari Valley floor. These areas offer several advantages including minimal grading requirements, excellent accessibility via existing rural road networks, and proximity to electrical infrastructure that already serves the agricultural community.

The valley areas extending northeast and southwest of Lajeado present particularly favorable conditions due to their relatively uniform topography and large contiguous parcels of land. These flat agricultural zones would require minimal site preparation and would allow for efficient installation and maintenance of solar arrays. The existing agricultural infrastructure, including access roads and electrical connections, would facilitate development while reducing initial capital costs.

Areas on the gentler south-facing slopes of the hills surrounding the valley could also prove suitable for solar development, particularly those with gradients of less than 15 degrees. These elevated positions might offer advantages in terms of air circulation and reduced potential for flooding, while still maintaining reasonable construction and maintenance access. However, the flatter valley floor locations would likely prove more economical for large-scale installations due to lower site preparation costs and easier equipment access.

The region's well-developed agricultural road network and existing electrical infrastructure make most areas within a 20-kilometer radius of Lajeado potentially viable for solar development, provided suitable land agreements can be reached with agricultural landowners. The key limiting factors would likely be land availability and cost rather than topographical constraints, as the gentle terrain throughout much of the valley system presents few significant physical barriers to solar installation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
