Lavras da Mangabeira, Brazil presents an excellent location for year-round solar photovoltaic energy generation. This tropical location benefits from consistent sunlight throughout the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Solar Energy Production Performance

The solar energy output data for this location demonstrates remarkably consistent performance across all seasons. Winter produces 6.32 kWh per day per kW of installed solar capacity, while summer generates 6.25 kWh per day per kW. Autumn shows slightly higher production at 6.37 kWh per day per kW, but spring emerges as the peak season with an impressive 7.45 kWh per day per kW of installed capacity. Spring represents the optimal time for solar generation at this location, producing nearly 20% more energy than the lowest-performing season. This seasonal peak likely coincides with clearer skies and optimal sun angles during this period of the year.

Optimal Panel Configuration

For fixed panel installations at Lavras da Mangabeira, the ideal tilt angle to maximize total year-round solar production is 7 degrees North. This relatively shallow angle reflects the location's proximity to the equator, where the sun maintains a high position in the sky throughout the year. This optimal angle is calculated by analyzing daily solar elevation angles, determining optimal panel tilt for each day, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar production at this tropical location, though the consistently high output suggests these are manageable concerns. Dust and Particulate Accumulation: The semi-arid climate of this region in Ceará state can generate significant dust, particularly during dry seasons and periods of agricultural activity. Dust accumulation on solar panels can reduce efficiency by blocking sunlight from reaching photovoltaic cells. Seasonal Rainfall Patterns: While the wet season provides natural panel cleaning, extended periods of heavy rainfall and cloud cover can temporarily reduce solar output. However, the relatively modest seasonal variation in the production data suggests this impact is limited. High Temperatures: Tropical locations experience intense heat, which can reduce solar panel efficiency as photovoltaic cells typically perform less efficiently at very high temperatures.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize energy production despite these environmental challenges:

• Regular Cleaning Systems: Install automated cleaning systems or establish routine manual cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Adequate Ventilation: Design panel mounting systems with proper airflow underneath panels to reduce operating temperatures and maintain efficiency
• Quality Panel Selection: Choose solar panels with lower temperature coefficients that maintain better performance in high-heat conditions
• Protective Coatings: Apply anti-soiling coatings to panel surfaces to reduce dust adhesion and make cleaning more effective
• Strategic Positioning: Avoid installation near unpaved roads or agricultural areas where possible to minimize dust exposure

Overall, Lavras da Mangabeira offers exceptional conditions for solar energy generation, with consistent year-round production and manageable environmental challenges that can be effectively addressed through proper installation techniques and maintenance practices.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

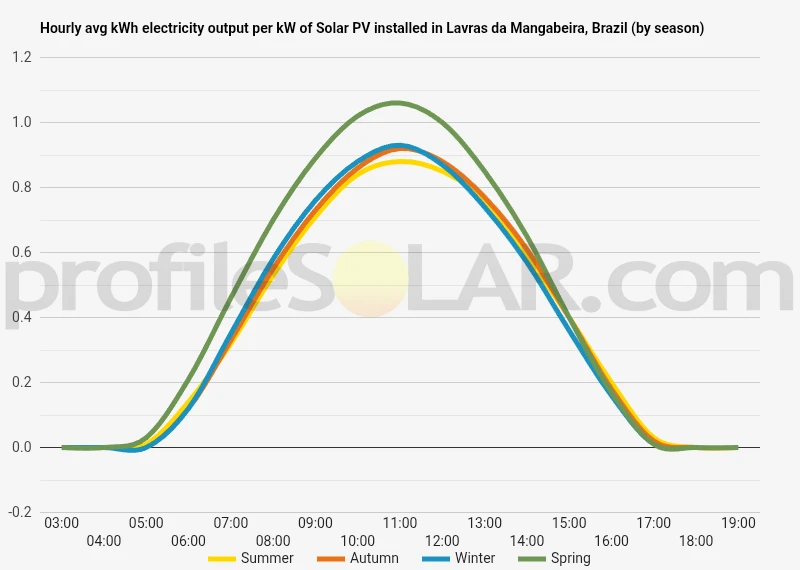

Solar output per kW of installed solar PV by season in Lavras Da Mangabeira

Seasonal solar PV output for Latitude: -6.7277, Longitude: -38.9752 (Lavras Da Mangabeira, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Lavras Da Mangabeira, Brazil

To maximize your solar PV system's energy output in Lavras Da Mangabeira, Brazil (Lat/Long -6.7277, -38.9752) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lavras Da Mangabeira, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lavras Da Mangabeira, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° South in Summer	13° North in Autumn	22° North in Winter	1° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lavras Da Mangabeira, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lavras Da Mangabeira, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lavras Da Mangabeira, Brazil

Topographical Features of Lavras da Mangabeira

Lavras da Mangabeira sits within the Caatinga region of northeastern Brazil, characterized by a semi-arid landscape that forms part of the Brazilian Highlands. The terrain around this municipality in Ceará state features rolling hills and elevated plateaus, with elevations typically ranging from 400 to 600 meters above sea level. The topography is marked by gentle undulations rather than steep mountainous terrain, creating a landscape of moderate relief that extends across much of the surrounding region. The area displays the characteristic features of the Borborema Plateau, an ancient geological formation that creates a series of low ridges and broad valleys. Rocky outcrops and exposed bedrock are common throughout the landscape, interspersed with areas of sandy and clay soils. The terrain slopes generally toward the northeast, following the natural drainage patterns that feed into the regional river systems. Vegetation in the region consists primarily of thorny scrubland typical of the Caatinga biome, with scattered trees and drought-resistant shrubs adapted to the semi-arid climate. During dry periods, much of the vegetation becomes sparse, leaving expanses of relatively open terrain across the gently rolling hills.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Lavras da Mangabeira would be the elevated plateau areas to the south and southwest of the municipality. These areas offer relatively flat terrain with gentle slopes that provide excellent conditions for solar panel installation while maintaining good drainage characteristics. The higher elevation zones, particularly those ranging from 500 to 600 meters above sea level, present ideal conditions due to their stable topography and minimal vegetation cover. These elevated areas experience consistent wind patterns that help with natural cooling of solar equipment, while the sparse Caatinga vegetation requires minimal clearing for installation purposes. Areas with southern and southeastern exposures on the gentler slopes would be particularly advantageous, as they can accommodate large arrays while taking advantage of optimal sun angles throughout the day. The relatively low relief of the terrain means that shading between panel rows would be minimized, allowing for efficient land use in solar installations. The sandy plateau regions northeast of the town center also present favorable conditions, offering stable ground conditions and good accessibility for construction and maintenance activities. These areas typically have fewer rocky outcrops compared to other parts of the region, making ground preparation more straightforward for large-scale development. Locations near existing road infrastructure would be preferable for practical considerations, particularly areas accessible from the BR-116 highway corridor and state roads that provide connections to regional power transmission networks. The relatively open terrain in these zones would facilitate both construction access and ongoing maintenance operations for utility-scale solar facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
