Lima Duarte, Minas Gerais, Brazil represents a moderately favorable location for year-round solar energy generation, with its tropical positioning providing consistent sunlight availability throughout the year. Located at coordinates -21.7881, -43.8985, this area benefits from the typical tropical climate pattern where seasonal variations are primarily driven by wet and dry periods rather than dramatic changes in daylight hours.

Seasonal Solar Performance

The solar energy output at Lima Duarte shows clear seasonal patterns that reflect the region's climate characteristics. Summer delivers the highest performance at 6.08 kWh per day per kW of installed solar capacity, making it the optimal season for solar generation. This peak performance aligns with the Southern Hemisphere's summer season when solar angles are most favorable. Spring and autumn provide similar moderate output levels, with spring generating 5.18 kWh/day per kW and autumn producing 5.25 kWh/day per kW. These shoulder seasons offer reliable energy production that supports consistent year-round solar harvesting. Winter represents the least productive period at 4.56 kWh/day per kW, though this still maintains reasonable output levels. The seasonal variation from peak to minimum represents approximately a 25% difference, which is relatively moderate for solar installations.

Optimal Panel Configuration

For maximum year-round energy production at Lima Duarte, Minas Gerais, solar panels should be installed at a fixed tilt angle of 20 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation angles throughout the year, weighted according to the solar irradiance potential for each day.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production at this location and require consideration during installation planning. Tropical Rainfall Patterns: Lima Duarte's tropical climate brings distinct wet and dry seasons, with the wet season potentially creating challenges for solar panel performance. Heavy rainfall can reduce solar irradiance reaching the panels, while frequent cloud cover during wet periods may cause temporary drops in energy generation. Humidity and Moisture: High humidity levels typical of tropical regions can lead to moisture-related issues affecting electrical components and connections. Prolonged exposure to humid conditions may cause corrosion of mounting hardware and electrical connections if not properly protected. Dust and Debris Accumulation: During dry seasons, dust accumulation on panel surfaces can reduce energy output by blocking sunlight from reaching photovoltaic cells. This issue may be compounded by local vegetation and agricultural activities in the surrounding area.

Preventative Installation Measures

To maximize energy production and system longevity at Lima Duarte, Minas Gerais, several preventative measures should be implemented during solar installation.

• Install panels with adequate drainage systems and slight tilting to prevent water pooling during heavy rains
• Use marine-grade or tropical-rated electrical components and connections designed to withstand high humidity
• Apply protective coatings to mounting hardware to prevent corrosion from moisture exposure
• Design easy access for regular cleaning to remove dust and debris accumulation
• Implement proper ventilation around panels to reduce moisture buildup and improve cooling

Regular maintenance scheduling becomes particularly important in this tropical environment, with cleaning routines adjusted to address both wet season debris and dry season dust accumulation. Proper installation techniques that account for these environmental factors will help ensure optimal energy production throughout the year at this moderately favorable solar location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

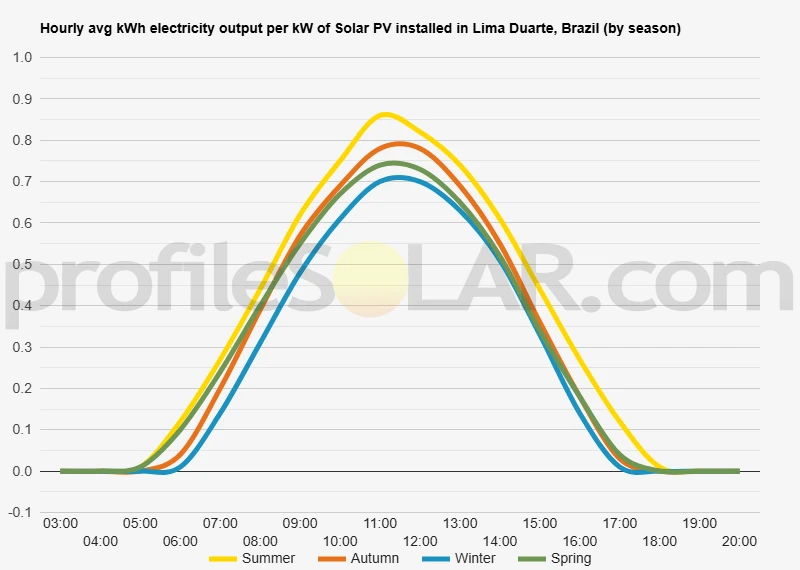

Solar output per kW of installed solar PV by season in Lima Duarte

Seasonal solar PV output for Latitude: -21.7881, Longitude: -43.8985 (Lima Duarte, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Lima Duarte, Brazil

To maximize your solar PV system's energy output in Lima Duarte, Brazil (Lat/Long -21.7881, -43.8985) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Lima Duarte, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Lima Duarte, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Lima Duarte, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Lima Duarte, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Lima Duarte, Brazil

Topographical Features of Lima Duarte Region

Lima Duarte sits nestled in the mountainous terrain of southeastern Minas Gerais, Brazil, within the Mantiqueira Mountain Range. This picturesque municipality occupies a landscape characterized by rolling hills, steep valleys, and dramatic elevation changes that create a complex topographical mosaic. The region forms part of the Atlantic Forest biome, where ancient geological formations have been sculpted over millions of years into a terrain of remarkable diversity. The immediate surroundings of Lima Duarte feature elevations ranging from approximately 800 to 1,500 meters above sea level, with some peaks reaching even higher altitudes. The landscape is dominated by granite and gneiss formations that create both gentle slopes and abrupt escarpments. Deep valleys carved by seasonal streams intersect the higher ground, creating a network of ridges and hollows that define the local geography.

Challenges for Solar Development

The mountainous nature of the Lima Duarte area presents significant challenges for large-scale solar photovoltaic installations. The steep terrain creates numerous obstacles including variable shading patterns throughout the day, complex grading requirements, and difficult access for construction equipment. The undulating landscape means that potential solar sites would require extensive earthwork and terracing to create suitable installation platforms. The region's topography also influences local weather patterns, with valleys often experiencing morning fog and mist that can reduce solar irradiance during early daylight periods. The varied elevations create microclimates that can affect the consistency of solar resource availability across different locations within the broader area.

Optimal Areas for Solar Installation

Despite the challenging terrain, several areas within the broader Lima Duarte region show promise for solar development. The most suitable locations would be found on the broader ridge tops and plateau areas where the terrain levels out sufficiently to accommodate large arrays without excessive grading. These elevated positions also benefit from reduced atmospheric interference and fewer obstructions from surrounding topographical features. Areas to the east and southeast of Lima Duarte, where the Mantiqueira Range begins to transition toward the Paraíba Valley, offer more moderate slopes and larger expanses of relatively flat terrain. These transitional zones maintain good elevation for solar exposure while providing more practical installation conditions than the steeper mountain areas closer to the town center. The southern approaches to the region, where agricultural activities have historically modified the landscape, present additional opportunities. These areas often feature gentler gradients and existing access infrastructure that could support solar development. Former pastureland and areas with less dense forest cover would require minimal environmental disruption while providing adequate space for utility-scale installations. Agricultural valleys within the region, particularly those with east-west orientation, could accommodate solar installations along their southern-facing slopes. These locations would benefit from natural wind flow for panel cooling while avoiding the most challenging aspects of the mountainous terrain. The key consideration for these valley locations would be ensuring adequate clearance from surrounding ridgelines to prevent shading during peak production periods.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
