Limoeiro do Norte, Brazil represents an excellent location for year-round solar energy generation. Located in the tropical region at coordinates -5.1743, -38.0285, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than significant changes in solar availability.

Solar Energy Production Performance

The solar energy output data for this location demonstrates remarkably consistent performance across all seasons. The expected electricity generation per kilowatt of installed solar capacity shows relatively stable production:

• Summer: 6.16 kWh per day per kW installed
• Autumn: 6.36 kWh per day per kW installed
• Winter: 6.28 kWh per day per kW installed
• Spring: 7.34 kWh per day per kW installed

Spring emerges as the optimal season for solar generation, producing approximately 19% more energy than the lowest-performing season (summer). This seasonal variation is relatively modest compared to locations at higher latitudes, making Limoeiro do Norte highly suitable for consistent solar energy production throughout the year.

Optimal Panel Configuration

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 5 degrees facing north. This shallow angle is calculated to optimize total annual solar output by accounting for the sun's path throughout the year, daily solar elevation angles, and weighting factors based on solar irradiance data that considers Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors could potentially impact solar energy production in Limoeiro do Norte and require careful consideration during installation planning. Dust and Particulate Matter: The semi-arid climate of this region can generate significant dust accumulation on solar panels, particularly during dry seasons. Regular cleaning schedules should be implemented, ideally every 2-4 weeks during dusty periods. Installing panels with anti-soiling coatings and ensuring adequate spacing between panel rows for cleaning access can help maintain optimal performance. Seasonal Rainfall Patterns: While the wet season provides natural panel cleaning, heavy tropical rains can create temporary shading from cloud cover and potential flooding issues. Proper drainage systems around solar installations and elevated mounting structures can prevent water damage to electrical components and inverters. High Humidity: Tropical humidity levels can accelerate corrosion of metal components and affect electrical connections. Using marine-grade wiring, corrosion-resistant mounting hardware, and ensuring proper ventilation around electrical equipment helps mitigate these effects. Regular inspection and maintenance of electrical connections becomes particularly important. Temperature Considerations: High ambient temperatures can reduce solar panel efficiency. Installing panels with adequate airflow underneath and using temperature-resistant components helps maintain performance. Light-colored mounting structures can also reduce heat absorption.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Elevated mounting systems improve airflow and reduce ground-reflected heat while making cleaning easier. Proper grounding and surge protection become essential due to potential electrical storms during wet seasons. Selecting high-quality components rated for tropical conditions, including UV-resistant wiring and weatherproof inverters, ensures long-term reliability. Implementing monitoring systems allows for quick identification of performance issues related to environmental factors. Overall, Limoeiro do Norte offers excellent conditions for solar energy generation, with environmental challenges that are manageable through proper installation techniques and regular maintenance protocols.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

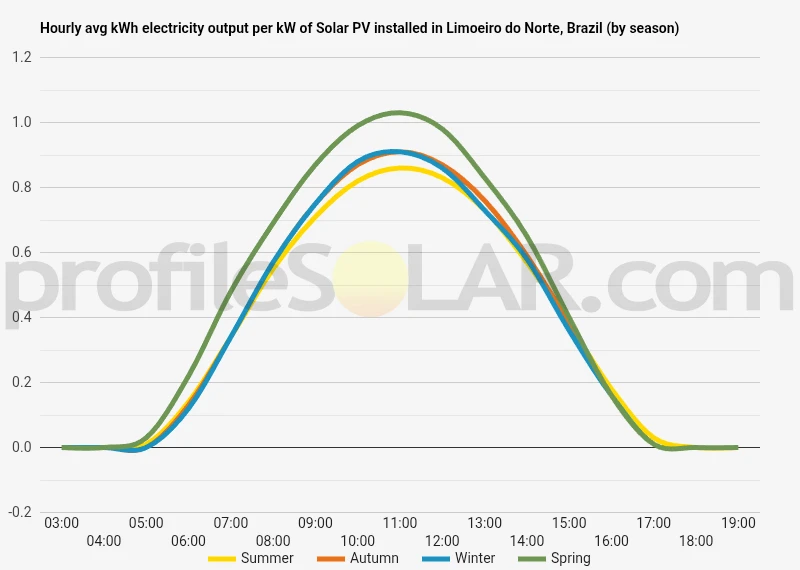

Solar output per kW of installed solar PV by season in Limoeiro Do Norte

Seasonal solar PV output for Latitude: -5.1743, Longitude: -38.0285 (Limoeiro Do Norte, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 5° North in Limoeiro Do Norte, Brazil

To maximize your solar PV system's energy output in Limoeiro Do Norte, Brazil (Lat/Long -5.1743, -38.0285) throughout the year, you should tilt your panels at an angle of 5° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Limoeiro Do Norte, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Limoeiro Do Norte, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 5° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° South in Summer	11° North in Autumn	21° North in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Limoeiro Do Norte, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Limoeiro Do Norte, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Limoeiro Do Norte, Brazil

Topographical Features of Limoeiro do Norte

Limoeiro do Norte sits in the Jaguaribe River valley within the state of Ceará in northeastern Brazil. The region is characterized by relatively flat terrain with gentle undulations, typical of the semi-arid Caatinga biome. The landscape consists primarily of low-lying plains with elevations ranging from approximately 150 to 300 meters above sea level. These plains are punctuated by occasional low hills and ridges that rarely exceed 400 meters in height.

The Jaguaribe River flows through the area, creating a fertile valley that contrasts with the surrounding drier uplands. Along the river corridor, the topography becomes slightly more varied with gentle slopes leading down to the water course. The riverine areas feature alluvial deposits that have created relatively flat, fertile terraces suitable for agriculture.

Moving away from the river valley, the terrain gradually rises into the characteristic rolling hills of the Brazilian Northeast. These areas display the typical weathered granite and gneiss formations of the region, creating a landscape of rounded hills separated by broad, shallow valleys. The rock formations are generally stable and well-weathered, covered by thin soils typical of semi-arid regions.

Optimal Areas for Large-Scale Solar Development

The elevated plateaus and gentle hillsides surrounding Limoeiro do Norte present excellent opportunities for large-scale solar photovoltaic installations. The areas located 10 to 25 kilometers southeast and southwest of the town center offer particularly favorable conditions. These locations feature stable, gently sloping terrain with gradients typically less than 5 degrees, making them ideal for solar panel installation and maintenance access.

The higher elevation areas, particularly those ranging from 200 to 350 meters above sea level, provide several advantages for solar development. These locations experience consistent air circulation that helps maintain optimal operating temperatures for photovoltaic panels. The terrain in these areas is generally well-drained, reducing concerns about water accumulation during the brief rainy season.

Areas with southern and southeastern exposures on the gentle slopes would be particularly well-suited for solar installations, as they can take advantage of optimal sun angles throughout the day. The relatively sparse vegetation in these semi-arid uplands means minimal land clearing would be required, reducing both environmental impact and development costs.

The region benefits from excellent accessibility, with several state and federal highways providing good transportation links. This infrastructure makes it feasible to transport equipment and materials to potential solar sites, while also facilitating connection to the electrical grid. Areas within 5 to 15 kilometers of existing transmission lines would be particularly attractive for development, as they would minimize the infrastructure investment required for grid connection.

The stable geological conditions throughout the region, characterized by ancient crystalline rock formations, provide excellent foundations for solar mounting systems. The low seismic activity typical of this part of Brazil further enhances the suitability of the area for long-term solar installations that require structural stability over decades of operation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
