Luzerna, Santa Catarina, Brazil presents a moderately favorable location for year-round solar photovoltaic energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location varies considerably throughout the year. Summer delivers the strongest performance at 7.01kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best performing season at 5.93kWh per day per kW, while autumn drops to 4.95kWh per day per kW. Winter presents the most challenging period for solar generation, producing only 3.68kWh per day per kW of installed capacity. This represents nearly a 50% reduction compared to summer output, which is typical for locations in the Southern Hemisphere where winter brings shorter days and lower sun angles.

Optimal Installation Configuration

For maximum year-round energy production at Luzerna, Santa Catarina, solar panels should be installed at a fixed tilt angle of 24 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying elevation throughout the year and weighting these angles according to actual solar irradiance potential.

Local Environmental Factors

Several environmental and weather factors in the Luzerna region could potentially impact solar energy production:

• High humidity levels common in subtropical climates can reduce panel efficiency and create more frequent condensation
• Intense summer thunderstorms typical of Southern Brazil may cause temporary shading from heavy cloud cover
• Dust and pollen accumulation during dry periods can reduce panel surface efficiency
• Potential for hail damage during severe weather events

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing to reduce heat buildup and improve efficiency in humid conditions
• Implement regular cleaning schedules, particularly during dusty seasons
• Use tempered glass panels rated for hail resistance
• Ensure proper drainage systems to prevent water pooling around installations
• Consider anti-reflective coatings that perform well in high-humidity environments

The seasonal variation at this location means that energy storage or grid-tie systems become particularly important for maintaining consistent power supply during the lower-production winter months. Despite the winter reduction, the strong summer and spring performance makes Luzerna a viable location for solar installations when properly planned and maintained.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

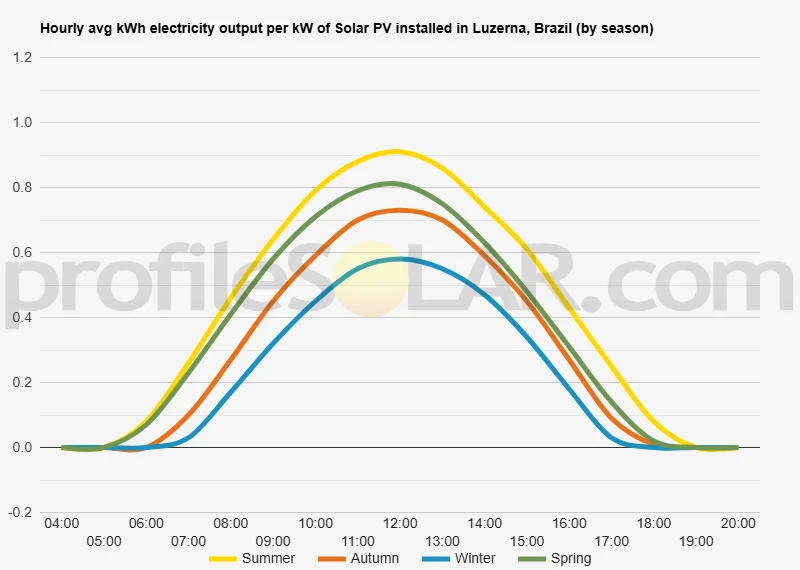

Solar output per kW of installed solar PV by season in Luzerna

Seasonal solar PV output for Latitude: -27.075, Longitude: -51.4938 (Luzerna, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Luzerna, Brazil

To maximize your solar PV system's energy output in Luzerna, Brazil (Lat/Long -27.075, -51.4938) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Luzerna, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Luzerna, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	42° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Luzerna, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Luzerna, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Luzerna, Brazil

Topographical Features of the Luzerna Region

The area surrounding Luzerna in Santa Catarina state sits within the southern Brazilian highlands, characterized by gently rolling hills and moderate elevation changes. This region forms part of the broader Serra Geral plateau system, where the landscape transitions from steeper escarpments to the east toward more gradual undulations as it extends westward. The terrain around Luzerna typically ranges from approximately 400 to 800 meters above sea level, creating a moderately elevated environment that experiences cooler temperatures than coastal areas. The topography consists primarily of rounded hills separated by shallow valleys, with occasional steeper slopes where water courses have carved deeper channels through the landscape. These hills are generally not dramatic in their relief, making much of the surrounding countryside accessible for development and infrastructure. The region's geological foundation of volcanic rock has weathered over millions of years to create relatively stable soils and gentle gradients across much of the area.

Drainage and Water Features

Several small rivers and streams flow through the region, creating narrow valleys that cut through the rolling terrain. These waterways generally follow north-south or northeast-southwest orientations, influenced by the underlying geological structure. The drainage patterns create a network of gentle valleys interspersed with broader hilltops and ridge areas that offer expansive views across the surrounding countryside. The presence of these water features means that some areas experience slightly more varied topography, with steeper banks along watercourses contrasting with the generally moderate slopes found elsewhere. Seasonal variations in water flow can affect accessibility to certain valley areas, though the region does not typically experience extreme flooding or drought conditions that would significantly impact land use planning.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and upper slope areas that characterize much of the region around Luzerna. These elevated areas offer several advantages, including relatively flat to gently sloping terrain that minimizes grading requirements and construction costs. The higher elevations also provide good exposure to prevailing winds, which helps maintain optimal operating temperatures for solar panels. Ridge areas running in east-west orientations would be particularly well-suited for solar development, as they typically offer south-facing slopes that maximize solar exposure throughout the day. These locations also tend to have fewer trees and less dense vegetation compared to valley areas, reducing clearing requirements and environmental impact during installation. Areas located within a reasonable distance of existing electrical transmission infrastructure would be especially attractive for large-scale development. The relatively gentle topography throughout much of the region means that multiple sites could potentially be developed without encountering significant terrain obstacles, allowing for efficient interconnection between installations and existing power grid infrastructure. Valley floor areas, while often flatter, may be less optimal due to potential shading from surrounding hills during certain times of day and seasons. Additionally, these lower-lying areas are more likely to experience fog formation and moisture retention, which could impact solar panel efficiency. The elevated hilltop and upper slope locations offer better atmospheric conditions and fewer obstructions to solar radiation throughout the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
