Jacutinga, Brazil presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows substantial fluctuation throughout the year. Summer delivers the strongest performance at 7.26kWh per day per kW of installed capacity, making it the peak season for solar generation. Spring follows as the second-best period with 6.01kWh daily output per kW, while autumn drops to 5.05kWh per kW. Winter presents the most challenging conditions, producing only 3.75kWh per day per kW of installed solar capacity. This seasonal pattern means that solar installations will generate nearly twice as much electricity during summer months compared to winter. The location experiences its optimal solar generation period from approximately October through March, with December and January likely representing peak production months.

Optimal Panel Configuration

For fixed panel installations at Jacutinga, the ideal tilt angle to maximize total year-round solar production is 24 degrees facing North. This angle has been calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to achieve the best annual average performance.

Environmental and Weather Challenges

Several local factors in the Jacutinga region could potentially impact solar energy production:

• High humidity levels typical of subtropical climates can reduce panel efficiency and create more frequent condensation on solar surfaces
• Seasonal rainfall patterns, particularly during summer months, may cause temporary reductions in solar output and require regular panel cleaning
• Potential for severe weather events including hailstorms and strong winds that could damage solar installations
• Dust and pollen accumulation from surrounding vegetation and agricultural activities

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies prove beneficial:

• Install panels with adequate spacing and ventilation underneath to improve cooling and reduce humidity-related efficiency losses
• Use high-quality mounting systems rated for local wind loads and severe weather conditions
• Implement regular cleaning schedules or consider anti-soiling coatings to minimize dust and organic matter buildup
• Choose panels with strong hail resistance ratings and consider protective measures for extreme weather events
• Install proper drainage systems to prevent water pooling around panel installations

While Jacutinga offers reasonable solar potential, particularly during warmer months, the significant winter reduction in output means that solar installations should be sized appropriately to meet energy needs during lower-production periods, or supplemented with battery storage systems to balance seasonal variations.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

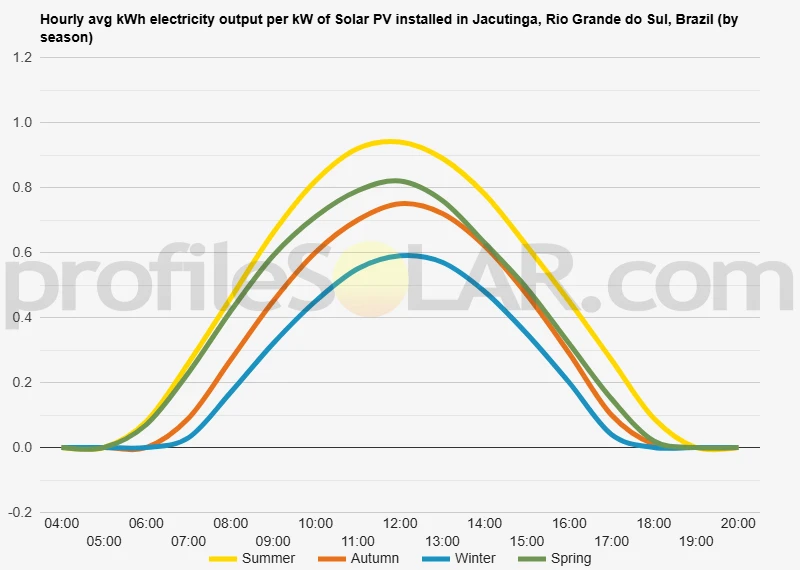

Solar output per kW of installed solar PV by season in Jacutinga, Rio Grande do Sul

Seasonal solar PV output for Latitude: -27.7771, Longitude: -52.5256 (Jacutinga, Rio Grande do Sul, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Jacutinga, Rio Grande do Sul, Brazil

To maximize your solar PV system's energy output in Jacutinga, Rio Grande do Sul, Brazil (Lat/Long -27.7771, -52.5256) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Jacutinga, Rio Grande do Sul, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Jacutinga, Rio Grande do Sul, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Jacutinga, Rio Grande do Sul, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Jacutinga, Rio Grande do Sul, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Jacutinga, Rio Grande do Sul, Brazil

Topographical Features Around Jacutinga

Jacutinga sits in the southern region of Brazil within the state of Rio Grande do Sul, positioned in an area characterized by gently rolling hills and undulating terrain typical of the southern Brazilian highlands. The landscape around this municipality features a mixed topography of moderate elevations, with the terrain gradually rising and falling across the region. The area forms part of the broader Planalto Sul-Riograndense, a plateau region that extends across much of southern Rio Grande do Sul.

The surrounding countryside displays a patchwork of agricultural fields, pastureland, and scattered forested areas. The terrain is generally well-drained due to the rolling nature of the landscape, with numerous small streams and waterways cutting through valleys between the hills. Elevations in the region typically range from moderate to relatively high compared to other parts of Rio Grande do Sul, creating a landscape that offers both elevated plateaus and protected valley areas.

The soil composition consists primarily of well-developed agricultural soils that have supported farming activities for generations. The region experiences a temperate climate influenced by its latitude and elevation, with seasonal variations that affect both agricultural practices and the overall character of the landscape throughout the year.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Jacutinga would be the elevated plateau areas and gentle south-facing slopes that dominate the regional topography. These elevated positions offer several advantages for solar development, including reduced shading from surrounding terrain features and improved air circulation that helps maintain optimal panel operating temperatures.

The rolling hills provide numerous sites with gradual slopes that are ideal for solar panel installation, as they allow for proper drainage while maintaining good solar exposure throughout the day. Areas with slopes between 5 and 15 degrees would be particularly well-suited, as they provide natural tilt angles that can enhance energy collection efficiency while remaining manageable for construction and maintenance activities.

Open agricultural areas on the higher elevations would present excellent opportunities for solar development, particularly those fields that are currently used for extensive grazing or crop production. These locations typically have minimal tree cover and existing access roads, which would reduce development costs and environmental impact. The plateau regions also tend to have more consistent wind patterns that help keep solar panels clean and operating at optimal temperatures.

Valley areas and lower-lying regions would generally be less suitable for large-scale solar installations due to potential issues with morning fog, increased humidity, and possible shading from surrounding hills during certain times of the day. However, some of the broader valley floors with good southern exposure could still be viable options, particularly if they offer advantages in terms of grid connectivity or land availability.

The existing agricultural infrastructure in the region, including farm roads and electrical connections, would support solar development by providing established access routes and potential grid tie-in points. Areas near existing transmission lines or substations would be particularly attractive for large-scale solar projects, as they would minimize the additional infrastructure required to connect new installations to the electrical grid.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
