Solar Energy Potential in Indaial, Brazil

Indaial, Brazil, located in the Southern Sub Tropics at latitude -28.3914 and longitude -48.9552, offers varying potential for solar energy generation throughout the year. This location experiences significant seasonal differences in solar electricity production. The solar energy generation follows a clear seasonal pattern. Summer stands out as the most productive season with an impressive 6.59kWh per day for each kilowatt of installed solar capacity. Spring follows as the second most productive season, generating 5.43kWh per day. Autumn yields a moderate 4.50kWh per day, while winter shows the lowest production at 3.32kWh per day.

Seasonal Performance

For residents and businesses in Indaial considering solar installation, understanding this seasonal variation is important for planning. The summer months provide nearly twice the energy compared to winter months. This pattern means that December through February would be optimal for solar energy production, while June through August would see the lowest returns on solar investment. For a fixed panel installation at this location, the ideal angle to tilt panels to maximize total year-round production from solar PV is 25 degrees North. This specific tilt optimizes the annual energy harvest by balancing the seasonal variations in sun position.

Environmental Considerations

Several environmental factors could potentially impact solar production in Indaial:

• High humidity and rainfall common in subtropical regions can reduce panel efficiency through cloud cover and direct precipitation
• Potential dust accumulation during drier periods
• Occasional hail storms that could physically damage panels

To mitigate these challenges, solar installations in Indaial should include regular cleaning schedules to remove dust and debris, especially after dry periods. Installing hail-resistant panels with tempered glass can provide protection against weather damage. Additionally, incorporating micro-inverters or power optimizers can help maintain energy production even when some panels are partially shaded or affected by environmental factors. Despite the winter reduction in output, the overall annual production remains favorable compared to many other locations at similar latitudes, making solar energy a viable renewable energy option for Indaial residents and businesses.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

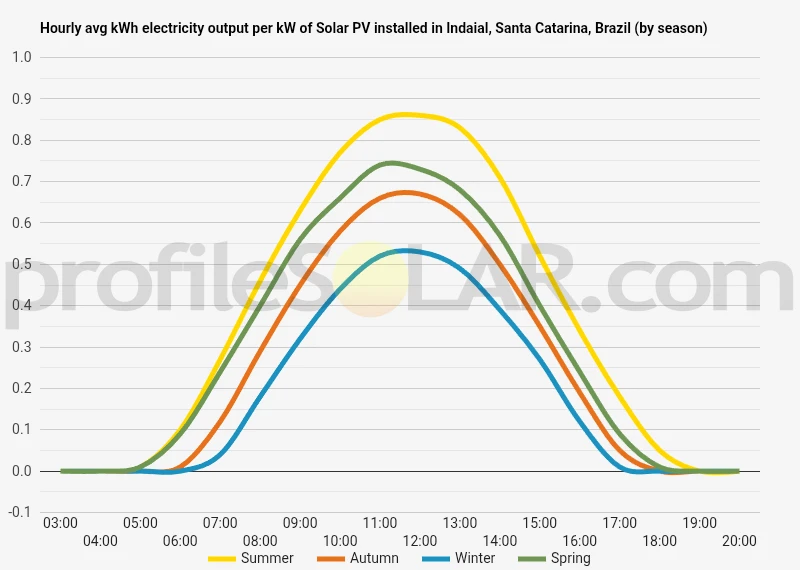

Solar output per kW of installed solar PV by season in Indaial, Santa Catarina

Seasonal solar PV output for Latitude: -28.3914, Longitude: -48.9552 (Indaial, Santa Catarina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Indaial, Santa Catarina, Brazil

To maximize your solar PV system's energy output in Indaial, Santa Catarina, Brazil (Lat/Long -28.3914, -48.9552) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Indaial, Santa Catarina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Indaial, Santa Catarina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	44° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Indaial, Santa Catarina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Indaial, Santa Catarina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Indaial, Santa Catarina, Brazil

The topography surrounding Indaial, Brazil, is characterized by a diverse and dynamic landscape. Located in the state of Santa Catarina in southern Brazil, Indaial sits within the Itajaí Valley region, which features a combination of rolling hills, river valleys, and varying elevations that create a picturesque setting. The area around Indaial is marked by the presence of the Itajaí-Açu River, which flows through the region and has shaped much of the local terrain. The valley floor where the river runs is relatively flat, gradually giving way to more undulating terrain as one moves away from the riverbanks. These gentle slopes eventually rise into more pronounced hills and elevated areas that form part of the Atlantic Forest biome.

Elevation Characteristics

The elevation in and around Indaial varies considerably. The city center itself sits at approximately 60-80 meters above sea level, while the surrounding areas rise to form hills that can reach several hundred meters in height. This variation creates a basin-like formation with the city nestled in the lower portions, surrounded by higher terrain. To the west and northwest of Indaial, the landscape becomes more mountainous as it transitions toward the Serra do Mar mountain range, which runs parallel to much of Brazil's southeastern coastline. These higher elevations create significant topographic relief in the region.

Vegetation and Land Cover

The natural vegetation of the region consists primarily of Atlantic Forest remnants, though much of the original forest has been altered by human activities. The remaining forested areas tend to be concentrated on steeper slopes and higher elevations, while the flatter, more accessible land has been largely converted to agricultural use, urban development, or other human purposes.

Potential for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several areas near Indaial present favorable conditions based on topographic considerations: The flatter areas along the Itajaí-Açu River valley offer potential sites for solar development. These locations provide relatively level terrain that would minimize the costs associated with land preparation and construction. The open expanses in these lower-elevation areas also typically face fewer shading issues from surrounding topography. Gently sloping hillsides with southern exposure (in the Southern Hemisphere, north-facing slopes receive more direct sunlight) could be suitable for solar installations, particularly those that have already been cleared of dense vegetation. These areas benefit from good drainage while still maintaining accessibility for construction and maintenance equipment.

Challenging Terrain

Conversely, certain topographic features around Indaial present challenges for large-scale solar development: The steeper hillsides and mountainous areas to the west would require significant terracing or specialized mounting systems, substantially increasing installation costs. These areas also often retain more of their natural forest cover, raising environmental concerns about clearing. Low-lying areas immediately adjacent to the river may be subject to periodic flooding or have high water tables, potentially creating problems for electrical infrastructure and increasing maintenance requirements. Areas with deep valleys or situated on eastern slopes of hills may experience morning fog or extended periods of shade, reducing overall solar exposure and efficiency.

Optimal Locations

Considering these topographic factors, the most promising areas for large-scale solar PV development near Indaial would likely be found in the moderately elevated plateaus and gentle slopes that extend away from the river valley, particularly in areas that have already been modified by human activity such as former agricultural lands or cleared areas. These locations offer a balance of favorable terrain, good exposure, and minimal environmental impact compared to developing pristine areas. The broader region surrounding Indaial contains numerous small plateaus and elevated flatlands that could accommodate substantial solar installations while minimizing both environmental disruption and construction challenges posed by extreme topography.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
