Machacalis, Minas Gerais, Brazil offers excellent conditions for year-round solar energy generation, making it a highly suitable location for solar PV installations. Located in the tropics at coordinates -17.0909, -40.7157, this region benefits from consistent sunlight throughout most of the year, with seasonal variations typically defined by wet and dry periods rather than dramatic temperature changes.

Solar Energy Output Performance

The solar energy production at Machacalis shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest output at 6.04 kWh per day per kW of installed solar capacity, making it the peak production period. Spring and autumn provide very similar and robust production levels at 5.50 kWh/day and 5.55 kWh/day respectively, demonstrating consistent performance during transitional seasons. Winter represents the lowest production period at 4.25 kWh/day per kW, though this figure still indicates reasonable solar generation capability even during the least favorable season. The difference between peak summer and winter production is approximately 1.79 kWh/day per kW, showing seasonal variation but maintaining year-round viability.

Optimal Installation Configuration

For fixed panel installations at Machacalis, Minas Gerais, the ideal tilt angle to maximize total year-round solar production is 16 degrees North. This angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning, and weighting these angles according to solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Challenges

Several environmental factors at Machacalis could potentially impact solar energy production and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance and create challenges for solar panel performance. Heavy rains and associated cloud cover during these periods directly correlate with reduced energy output. Additionally, high humidity levels common in tropical regions can lead to moisture-related issues with electrical components and connections. Dust accumulation presents another concern, particularly during dry seasons when reduced rainfall means less natural cleaning of panel surfaces. The tropical environment may also support vegetation growth that could create shading issues if not properly managed during site preparation and ongoing maintenance.

Preventative Measures for Optimal Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate drainage systems and slight tilting to prevent water pooling during heavy rains
• Use high-quality weatherproof electrical components and junction boxes rated for high humidity tropical conditions
• Implement regular cleaning schedules, particularly during dry seasons when dust accumulation is highest
• Ensure proper site clearing and ongoing vegetation management to prevent shading from plant growth
• Consider elevated mounting systems that improve air circulation around panels, helping reduce moisture buildup and improve cooling

Despite these considerations, Machacalis remains an excellent location for solar energy generation, with the seasonal output data demonstrating consistent and substantial energy production throughout the year. Proper installation techniques and maintenance practices can effectively address the tropical environmental challenges while capitalizing on the region's abundant solar resources.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

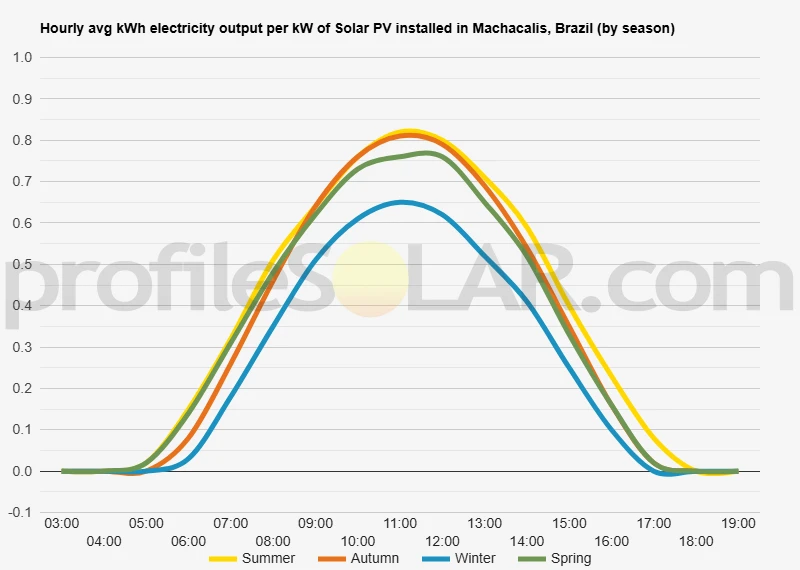

Solar output per kW of installed solar PV by season in Machacalis

Seasonal solar PV output for Latitude: -17.0909, Longitude: -40.7157 (Machacalis, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 16° North in Machacalis, Brazil

To maximize your solar PV system's energy output in Machacalis, Brazil (Lat/Long -17.0909, -40.7157) throughout the year, you should tilt your panels at an angle of 16° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Machacalis, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Machacalis, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 16° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	22° North in Autumn	33° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Machacalis, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Machacalis, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Machacalis, Brazil

Regional Topography and Landscape

Machacalis sits within the northeastern region of Minas Gerais state in Brazil, positioned in an area characterized by gently rolling hills and relatively modest elevation changes. The terrain around this location features a mix of undulating countryside with scattered valleys and low ridges that are typical of the Brazilian interior highlands. The landscape is predominantly rural, with expanses of agricultural land, pastures, and patches of native cerrado vegetation interspersed throughout the region.

The elevation in and around Machacalis ranges from approximately 200 to 600 meters above sea level, creating a moderately elevated plateau environment. The topography is generally favorable for development projects, as the terrain is neither too steep nor too flat, providing good drainage while remaining accessible for construction and maintenance activities. The area experiences a semi-arid to tropical climate pattern, which has shaped the local vegetation into a mixture of grasslands, scrubland, and drought-resistant trees.

Drainage Patterns and Water Features

The region's drainage system consists of several small to medium-sized streams and seasonal watercourses that flow generally eastward toward the Atlantic Ocean. These waterways have carved gentle valleys through the landscape, creating natural boundaries and slight variations in elevation across the area. During the wet season, these streams become more prominent, while many smaller tributaries may run dry during extended dry periods.

The presence of these water features creates a mosaic of slightly different microtopographies, with some areas featuring gentle slopes toward stream beds and others sitting on slightly elevated interfluves between drainage channels. This varied but generally mild topography provides multiple options for large-scale development while maintaining good natural drainage characteristics.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Machacalis would be the broad, gently sloping plateaus and interfluves that sit between the major drainage channels. These elevated areas typically feature slopes of less than 5 degrees, making them ideal for solar panel installation while providing natural drainage to prevent water accumulation around equipment.

Areas located on the southern and southeastern facing slopes would be particularly advantageous, as they can capture optimal sun exposure throughout the day. The relatively open terrain, combined with the semi-arid climate that limits dense forest growth, means that large tracts of land are available without requiring extensive clearing of mature vegetation.

The regions extending roughly 10 to 30 kilometers in all directions from Machacalis offer the best combination of favorable topography, accessibility, and land availability. These areas feature the gentle, stable terrain necessary for large solar installations while remaining close enough to existing infrastructure to facilitate construction and grid connection. The consistent elevation and minimal risk of flooding make these locations particularly attractive for long-term solar energy projects.

Areas closer to the main drainage channels, while still potentially suitable, would require more careful site preparation and drainage management. The higher, more stable ground away from these water features presents fewer technical challenges and lower long-term maintenance requirements for solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
