Machadinho, Rio Grande do Sul, Brazil presents a moderately good location for year-round solar energy generation, though with significant seasonal variation typical of its Southern Sub Tropical climate. Located at coordinates -27.5944, -51.6908, this region experiences substantial differences in solar output throughout the year that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy production at Machadinho varies considerably across the seasons. Summer delivers the strongest performance at 7.01 kWh per day per kW of installed capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.93 kWh per day per kW, while autumn drops to 4.95 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.68 kWh per day per kW of installed solar capacity. This seasonal pattern means that summer and spring combined provide the most productive six-month period for solar energy generation. The nearly 50% reduction in output between summer and winter highlights the importance of proper system sizing to ensure adequate power generation during the less productive months.

Optimal Panel Configuration

For fixed panel installations at this Machadinho location, the ideal tilt angle is 24 degrees facing North to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Factors

Several local factors in this Southern Sub Tropical region can impact solar production efficiency:

• High humidity levels can create moisture buildup on panels, reducing light transmission
• Frequent rainfall during certain seasons may cause dirt and debris accumulation
• Subtropical vegetation growth can lead to shading issues if not properly managed
• Temperature fluctuations between seasons may affect panel efficiency

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies prove effective:

• Install panels with adequate spacing and ventilation to prevent moisture-related issues
• Design mounting systems that allow for easy cleaning and maintenance access
• Conduct thorough site surveys to identify and eliminate potential shading from trees or structures
• Use anti-reflective coatings and self-cleaning panel technologies where budget permits
• Implement regular maintenance schedules, particularly during transition seasons when debris accumulation peaks

Regular vegetation management around the installation site becomes particularly important in this climate, as the subtropical conditions promote rapid plant growth that could create shading issues over time. Proper drainage around panel installations also helps prevent water-related problems during the region's wetter periods.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

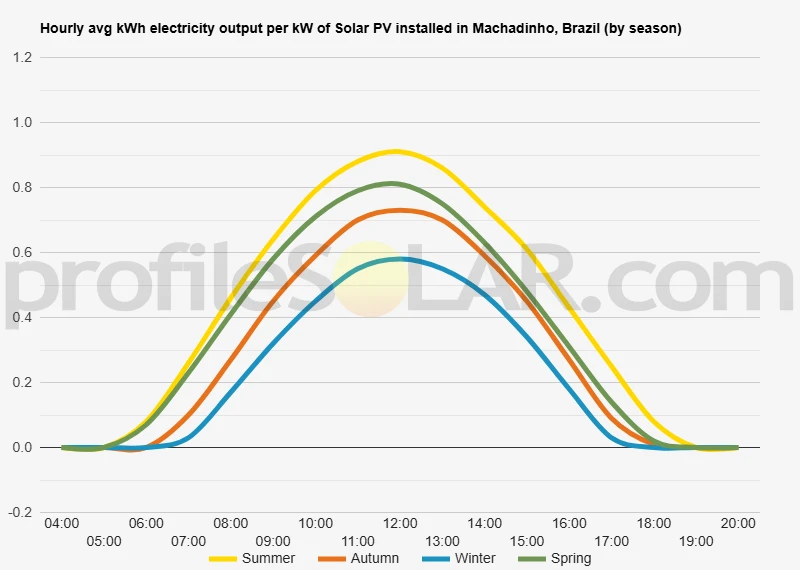

Solar output per kW of installed solar PV by season in Machadinho

Seasonal solar PV output for Latitude: -27.5944, Longitude: -51.6908 (Machadinho, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Machadinho, Brazil

To maximize your solar PV system's energy output in Machadinho, Brazil (Lat/Long -27.5944, -51.6908) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Machadinho, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Machadinho, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	33° North in Autumn	43° North in Winter	20° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Machadinho, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Machadinho, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Machadinho, Brazil

Topography Around Machadinho

Machadinho is situated in the mountainous region of Rio Grande do Sul, Brazil's southernmost state, nestled within the Serra Geral mountain range. The terrain around this municipality is characterized by rolling hills, steep valleys, and elevated plateaus that form part of the Brazilian Highlands. The landscape features significant elevation changes, with the town itself positioned at approximately 650 meters above sea level on a plateau that overlooks dramatic canyon formations.

The immediate vicinity of Machadinho displays a mix of gently undulating farmland and more pronounced topographical features. To the east and south, the terrain becomes increasingly rugged as it approaches the spectacular canyons of Aparados da Serra National Park, including the famous Itaimbezinho Canyon. These areas are marked by steep escarpments, deep gorges, and rocky outcrops that drop dramatically toward the Atlantic coastal plain.

The western and northwestern areas around Machadinho present a more moderate topography, with broader valleys and gentler slopes that have been extensively used for agriculture. The landscape here consists of rolling hills interspersed with flatter areas that have been cleared for farming, particularly soybean and corn cultivation. Small streams and tributaries flow through these valleys, creating a network of waterways that eventually feed into larger river systems.

Optimal Areas for Large-Scale Solar PV Development

The most suitable locations for large-scale solar photovoltaic installations around Machadinho would be the relatively flat to gently sloping agricultural areas located to the west and northwest of the town center. These regions offer several advantages for solar development, including minimal grading requirements, easier access for construction equipment, and reduced installation costs compared to steeper terrain.

The elevated plateau areas surrounding the town center present excellent opportunities for solar farms due to their combination of adequate flatness and elevated position. These locations benefit from reduced atmospheric interference and minimal shading from surrounding topographical features. The higher elevation also provides natural drainage advantages and reduces the risk of flooding during heavy rainfall periods common in this region.

Areas along the broader valley floors, particularly those currently used for large-scale agriculture, would be well-suited for solar installations. These locations typically have existing road access infrastructure and electrical grid connections that could be adapted for solar farm operations. The relatively flat terrain in these valleys would minimize the need for extensive site preparation and allow for optimal panel orientation.

The gentler slopes facing north and northeast would also be favorable for solar development, as they can be engineered to provide optimal sun exposure while maintaining reasonable construction costs. However, areas approaching the dramatic canyon systems to the east and south should be avoided for large-scale installations due to their steep gradients, rocky terrain, and environmental sensitivity as part of the region's protected natural heritage.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
