Machados, Pernambuco, Brazil presents a highly favorable location for year-round solar PV energy generation. Located in the tropical region at coordinates -7.7173, -35.5158, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy output at Machados demonstrates excellent year-round performance. Spring offers the highest production at 6.76 kWh per day per kW of installed solar capacity, followed closely by summer at 6.23 kWh per day. Even during the lowest production period in winter, the location still generates a respectable 5.09 kWh per day per kW, while autumn produces 5.54 kWh per day per kW. This consistent output makes Machados an ideal location for solar installations, as the variation between peak and lowest production seasons is relatively modest. The spring and summer months represent the optimal times for maximum solar generation, though the location maintains good productivity throughout the entire year. For fixed panel installations at this location, the ideal tilt angle to maximize total year-round solar production is 7 degrees North. This relatively shallow angle reflects the location's proximity to the equator and helps optimize solar collection across all seasons.

Environmental and Weather Considerations

Being located in a tropical climate zone, Machados faces several environmental factors that could potentially impact solar production:

• High humidity levels can create moisture-related issues with electrical components
• Tropical rainfall during wet seasons may temporarily reduce solar output and create water accumulation concerns
• Dust and debris accumulation during dry periods can reduce panel efficiency
• Potential for tropical storms or severe weather events

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these tropical challenges, several installation strategies should be implemented: Proper drainage systems around solar installations are essential to prevent water pooling during heavy rainfall periods. Installing panels with adequate spacing and ventilation helps combat humidity-related issues and allows for better air circulation. Regular cleaning schedules become particularly important in this environment. During dry seasons, dust removal should be performed more frequently, while wet season maintenance should focus on ensuring drainage systems remain clear and checking for any moisture intrusion in electrical components. Selecting solar equipment specifically rated for tropical climates is crucial. This includes using corrosion-resistant mounting systems, weatherproof electrical enclosures, and panels with appropriate temperature coefficients for hot, humid conditions. Despite these considerations, the consistently high solar output levels throughout the year make Machados an excellent location for solar PV installations, provided that proper installation techniques and maintenance practices are followed to address the tropical environmental factors.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

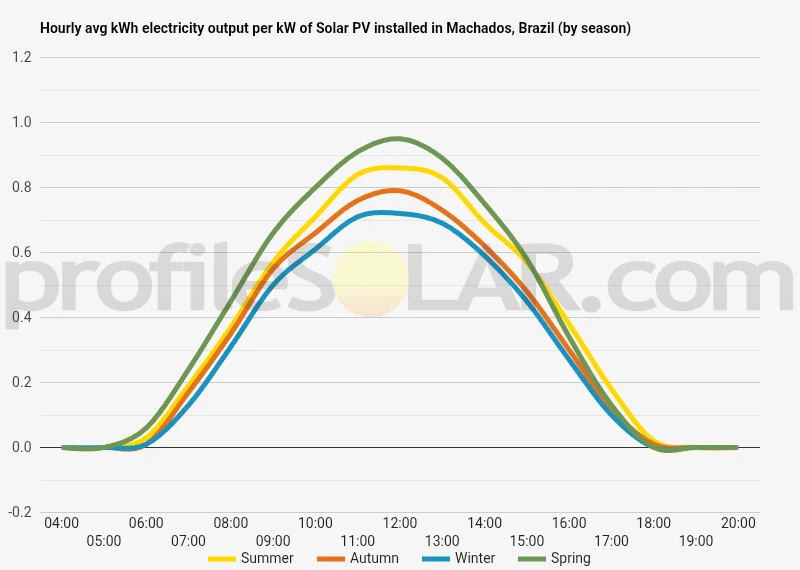

Solar output per kW of installed solar PV by season in Machados

Seasonal solar PV output for Latitude: -7.7173, Longitude: -35.5158 (Machados, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 7° North in Machados, Brazil

To maximize your solar PV system's energy output in Machados, Brazil (Lat/Long -7.7173, -35.5158) throughout the year, you should tilt your panels at an angle of 7° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Machados, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Machados, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 7° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	14° North in Autumn	24° North in Winter	2° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Machados, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Machados, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Machados, Brazil

Topographical Features of the Machados Region

The area surrounding Machados in Brazil sits within the northeastern region of the country, characterized by relatively gentle topographical features typical of the Caatinga biome. The landscape consists primarily of low-lying plains and modest undulating hills, with elevations generally ranging from 400 to 800 meters above sea level. This region forms part of the broader Brazilian Highlands, though it represents one of the more subdued sections of this geological formation. The terrain around Machados features a mix of flat to gently rolling countryside, interrupted by occasional rocky outcrops and low ridges. These geological formations are remnants of ancient crystalline rocks that have been weathered over millions of years, creating a landscape that is neither mountainous nor completely flat. The area experiences typical semi-arid conditions, which have shaped the land through processes of erosion and weathering, resulting in relatively stable ground conditions. Drainage patterns in the region are defined by seasonal streams and small tributaries that flow toward larger river systems. During dry periods, many of these waterways become intermittent, leaving behind sandy or rocky beds that contribute to the overall gentle topography. The soil composition varies from sandy to clay-rich areas, with rocky substrates appearing closer to the surface in elevated locations.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader flat plains and gentle slopes that dominate much of the surrounding landscape. These areas offer the advantage of minimal grading requirements and reduced construction costs, while providing stable foundations for mounting systems. The relatively low relief means that shading between solar arrays would be minimal, allowing for efficient panel spacing and maximum energy capture. Areas with slight southern-facing slopes would be particularly advantageous, as they naturally optimize the angle for solar collection in this southern hemisphere location. The rocky outcrops and ridges, while offering good drainage and stable ground conditions, would be less suitable due to the irregular terrain and potential access difficulties for construction and maintenance equipment. The flat agricultural areas and natural clearings present the most promising opportunities for development. These locations typically have existing access routes, relatively uniform ground conditions, and fewer obstacles such as large rocks or steep gradients. The semi-arid climate has created extensive areas of natural grassland and sparse vegetation, which would require minimal clearing for solar installations. Ground stability is generally favorable throughout the region due to the underlying crystalline bedrock, though areas closer to seasonal waterways might require additional geotechnical assessment. The combination of stable geology, gentle topography, and extensive flat areas makes this region well-suited to accommodate the infrastructure requirements of large-scale solar facilities, including access roads, electrical transmission connections, and maintenance facilities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
