Macuco, Rio de Janeiro, Brazil presents a reasonably good location for year-round solar PV energy generation, though it's not among the most ideal solar locations globally. The area experiences moderate seasonal variation in solar output, with production ranging from a low of 4.49kWh per day per kW of installed capacity during winter months to a peak of 6.45kWh per day per kW during summer.

Seasonal Solar Performance

The location shows a typical pattern for its latitude, with summer providing the strongest solar generation at 6.45kWh/day per kW. Spring follows with 5.17kWh/day per kW, while autumn drops to 5.40kWh/day per kW. Winter represents the least productive season at 4.49kWh/day per kW, though this still provides meaningful energy output. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several factors at this Brazilian location could potentially impact solar energy production:

• High humidity and frequent rainfall during wet seasons can reduce solar irradiance and create more frequent cloud cover
• Dust and debris accumulation on panels, particularly during drier periods
• Potential for severe weather events including heavy storms that could damage equipment
• High ambient temperatures that can reduce panel efficiency despite strong sunlight

Preventative Measures for Better Performance

To maximize energy production despite these challenges, several installation strategies should be considered:

• Install panels with adequate ventilation spacing to prevent overheating and maintain efficiency
• Implement regular cleaning schedules or automated cleaning systems to remove dust and debris
• Use high-quality mounting systems designed to withstand severe weather conditions
• Consider microinverters or power optimizers to minimize impact when individual panels are shaded or soiled
• Ensure proper drainage around installation areas to prevent water damage to electrical components

Despite these considerations, Macuco's location still offers consistent solar potential throughout the year, making it a viable location for solar PV installations with proper planning and maintenance protocols.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

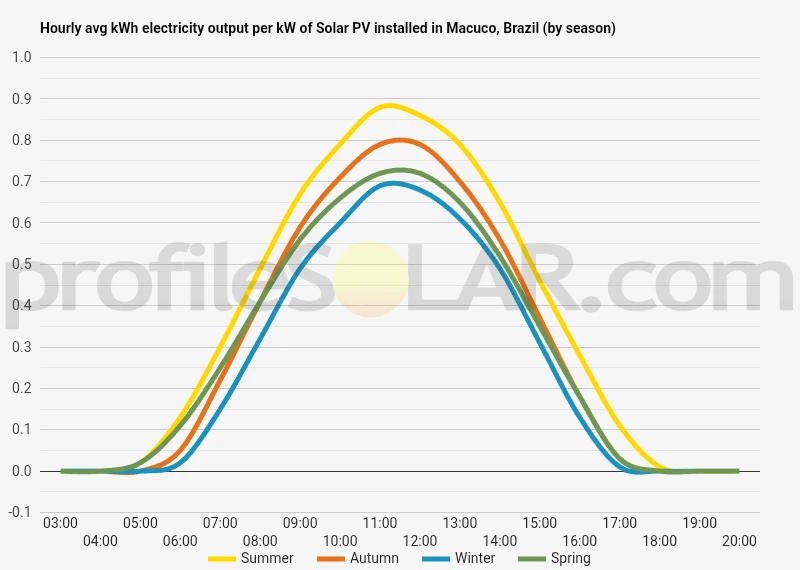

Solar output per kW of installed solar PV by season in Macuco

Seasonal solar PV output for Latitude: -21.9847, Longitude: -42.2619 (Macuco, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Macuco, Brazil

To maximize your solar PV system's energy output in Macuco, Brazil (Lat/Long -21.9847, -42.2619) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Macuco, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Macuco, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Macuco, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Macuco, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Macuco, Brazil

Topographical Features Around Macuco

Macuco is situated in the mountainous region of Rio de Janeiro state, nestled within the Serra do Mar mountain range. This area is characterized by dramatic elevation changes, with steep hillsides and narrow valleys creating a complex terrain pattern. The landscape features dense Atlantic Forest coverage across much of the region, with elevations ranging from relatively low coastal plains to significant peaks that rise well above sea level.

The immediate vicinity around Macuco displays typical characteristics of the Brazilian highlands, with rolling hills interspersed with more pronounced ridgelines. The terrain is generally rugged, featuring numerous streams and small rivers that have carved valleys through the landscape over geological time. The topography creates natural drainage patterns that flow toward the Atlantic Ocean, with water courses following the steepest gradients down the mountainsides.

Vegetation in this region is predominantly tropical rainforest, creating a canopy that covers much of the natural landscape. The climate supports lush growth, and the combination of elevation, moisture, and temperature creates ideal conditions for dense forest coverage. Agricultural activities in the area tend to focus on crops that can adapt to the sloping terrain, with some areas cleared for pasture or small-scale farming operations.

Optimal Areas for Large-Scale Solar Development

The challenging topography around Macuco presents both opportunities and constraints for solar photovoltaic installations. The most suitable locations for large-scale solar development would be found in areas where the terrain has been modified for agricultural use, particularly former pastureland or areas that have been cleared for cattle grazing. These locations typically offer more manageable slopes and reduced vegetation clearance requirements.

South-facing slopes with moderate gradients would provide excellent conditions for solar installations, as they receive consistent solar exposure throughout the day. Areas with elevations between the valley floors and the highest peaks often present the best compromise between accessibility and solar exposure, avoiding both the potentially flood-prone lower elevations and the extreme slopes of the highest terrain.

The region's proximity to existing agricultural infrastructure makes certain areas more practical for development. Locations near established roads and power transmission lines would significantly reduce installation and maintenance costs. Former agricultural land that has been abandoned or is underutilized presents particularly attractive opportunities, as much of the initial land preparation work may already be complete.

Areas with eastern or southeastern exposure on the surrounding hillsides could also prove suitable, especially where the terrain allows for proper equipment access and installation. The key consideration in this mountainous environment is finding locations that balance solar exposure, reasonable terrain gradients, and practical access for construction and ongoing maintenance activities.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
