Magda, São Paulo, Brazil presents a very favorable location for year-round solar PV energy generation, benefiting from its tropical positioning where consistent sunlight is available throughout most of the year with seasons characterized more by wet and dry periods than temperature variations.

Solar Energy Production Potential

The solar energy output data for Magda shows strong performance across all seasons. Summer delivers the highest production at 6.98 kWh per day per kW of installed capacity, followed closely by spring at 6.56 kWh per day. Even during the lowest production period in winter, the location still generates a respectable 5.10 kWh per day per kW, while autumn provides 5.86 kWh per day. The ideal times for solar generation at this location are summer and spring, when production peaks due to optimal sun angles and weather conditions. However, the relatively modest variation between seasons - with winter production only about 27% lower than summer - demonstrates the location's reliability for consistent year-round solar energy generation.

Optimal Panel Installation

For maximum year-round energy production, fixed solar panels at Magda should be tilted at 19 degrees toward the north. This angle is calculated to optimize total annual output by accounting for the sun's path throughout the year and weighting for daily solar potential based on irradiance data.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this location and require consideration during installation:

• Wet season impacts: Extended periods of cloud cover and frequent rainfall during wet seasons can reduce solar irradiance and require panels with good low-light performance
• High humidity: Tropical humidity can lead to moisture-related electrical issues and accelerated degradation of components
• Heavy rainfall: Intense tropical downpours may cause water infiltration problems if systems aren't properly sealed
• Dust and debris: Dry seasons can lead to dust accumulation on panels, reducing efficiency

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several installation strategies should be implemented:

• Waterproofing: Use high-quality sealing materials and ensure all electrical connections are properly weatherproofed with IP65 or higher rated components
• Ventilation: Install panels with adequate air circulation underneath to prevent moisture buildup and allow for cooling
• Corrosion-resistant materials: Choose aluminum or stainless steel mounting systems specifically designed for high-humidity tropical environments
• Regular maintenance scheduling: Plan for more frequent cleaning during dry seasons and post-storm inspections during wet periods
• Drainage design: Ensure mounting systems allow proper water runoff and don't create standing water areas

Despite these considerations, Magda's location offers excellent potential for solar energy generation with relatively minor seasonal variation, making it highly suitable for both residential and commercial solar installations when proper environmental precautions are taken.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

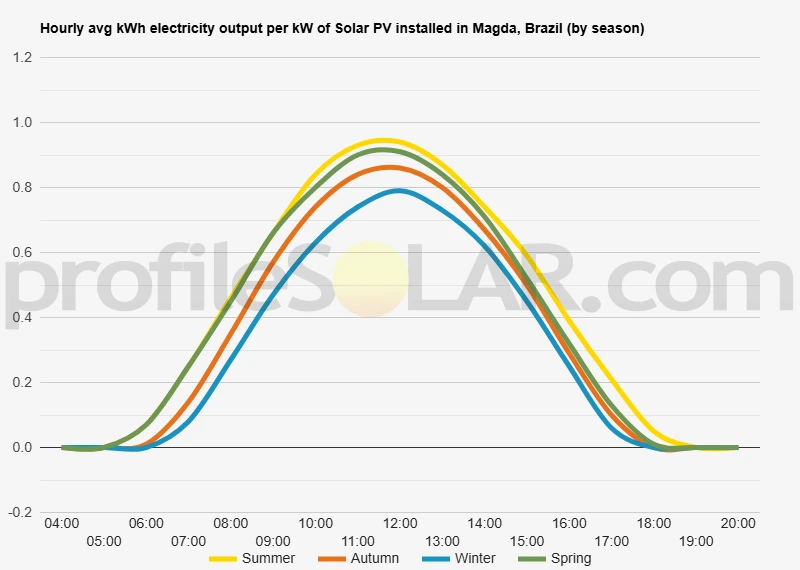

Solar output per kW of installed solar PV by season in Magda

Seasonal solar PV output for Latitude: -20.5741, Longitude: -50.2232 (Magda, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Magda, Brazil

To maximize your solar PV system's energy output in Magda, Brazil (Lat/Long -20.5741, -50.2232) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Magda, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Magda, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Magda, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Magda, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Magda, Brazil

Topographical Features of the Magda Region

The area surrounding Magda in São Paulo state sits within Brazil's southeastern highlands, characterized by gently rolling terrain that transitions between the coastal mountain ranges and the interior plateau. This region forms part of the broader Planalto Paulista, where elevations typically range from 400 to 600 meters above sea level. The landscape consists of undulating hills interspersed with broader valleys, creating a moderately varied topography that avoids the extreme elevations found closer to the Serra da Mantiqueira to the northeast.

The terrain around Magda displays the characteristic features of weathered crystalline basement rocks, resulting in rounded hilltops and gentle slopes. Stream valleys cut through the landscape in dendritic patterns, creating natural drainage systems that flow toward larger river basins. The soils in this region have developed from the weathering of igneous and metamorphic rocks, producing deep profiles that support both agricultural activities and natural vegetation.

Agricultural land use dominates much of the surrounding area, with extensive areas cleared for cattle pasture and crop cultivation. This land use pattern has created large open spaces with minimal tree cover, interrupted by gallery forests along watercourses and occasional patches of secondary forest on steeper slopes. The climate supports year-round vegetation growth, though seasonal variations in rainfall create distinct wet and dry periods that influence both natural vegetation and agricultural practices.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Magda vicinity would be the extensive areas of gently sloping agricultural land, particularly those currently used for cattle pasture. These areas offer several advantages including minimal topographical obstacles, existing access infrastructure, and reduced environmental sensitivity compared to forested areas. The rolling nature of the terrain provides natural drainage while avoiding the complications associated with steep slopes or flood-prone valley bottoms.

South-facing slopes throughout the region present particularly favorable conditions for solar panel orientation, allowing optimal capture of solar radiation throughout the day. The moderate elevation changes across the landscape enable developers to select sites that balance good solar exposure with practical construction considerations. Areas where the terrain opens into broader valleys or plateau-like surfaces would minimize the need for extensive grading while providing sufficient space for large installation footprints.

The existing agricultural infrastructure in these areas, including farm roads and proximity to electrical transmission lines, reduces development costs and environmental impact compared to undeveloped locations. Many of the cleared agricultural areas maintain relatively flat to gently rolling topography that would require minimal site preparation for solar installations. The absence of significant forest cover in these zones also eliminates concerns about habitat fragmentation while taking advantage of land already modified for human use.

Areas to avoid would include the steeper hillsides where erosion control would become problematic, riparian zones along streams and rivers that serve important ecological functions, and any remaining patches of native forest that provide habitat connectivity. The valley bottoms, while flat, may present seasonal flooding risks and would be better preserved for their natural drainage functions and higher agricultural value.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
