Malacacheta, Minas Gerais, Brazil presents a highly favorable location for year-round solar energy generation. Situated in the tropics at coordinates -17.8361, -42.0924, this region benefits from consistent sunlight throughout most of the year, with seasonal variations typically characterized by wet and dry periods rather than dramatic temperature changes.

Solar Energy Output Performance

The solar energy output data for Malacacheta demonstrates strong year-round performance for photovoltaic systems. Summer delivers the highest output at 5.83 kWh per day per kW of installed solar capacity, followed closely by spring at 5.55 kWh per day per kW. Autumn maintains solid performance at 5.47 kWh per day per kW, while winter shows the lowest but still respectable output of 4.66 kWh per day per kW. The variation between the best performing season (summer) and the weakest (winter) is only about 20%, indicating excellent consistency throughout the year. This makes Malacacheta an ideal location for solar installations, as energy production remains reliable across all seasons.

Optimal Installation Configuration

For fixed panel installations at this location, the ideal angle to tilt solar panels to maximize total year-round production is 17 degrees North. This optimal angle is calculated by analyzing daily solar elevation angles at the latitude, determining daily optimal panel tilt angles, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Despite the favorable solar conditions, several local factors could potentially impede solar production in Malacacheta:

• Heavy rainfall during wet seasons can reduce solar irradiance and create cloud cover
• High humidity levels may lead to moisture-related equipment issues
• Dust accumulation during dry periods can reduce panel efficiency
• Tropical vegetation growth may create shading issues if not properly managed

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these challenges, several preventative measures should be implemented during installation: Regular cleaning systems or schedules should be established to remove dust and debris, particularly important during dry seasons when dust accumulation is highest. Panel mounting systems should be designed with adequate drainage and ventilation to prevent moisture buildup and ensure proper air circulation around equipment. Vegetation management around solar installations is crucial, requiring regular trimming and maintenance to prevent shading from growing plants. Installing panels with anti-reflective coatings and robust weatherproofing can help maintain efficiency during heavy rainfall periods. Monitoring systems should be implemented to track performance and quickly identify any issues related to weather impacts. Additionally, selecting equipment rated for high humidity and temperature variations will ensure longer system lifespan and more consistent performance throughout the varying seasonal conditions typical of this tropical location.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

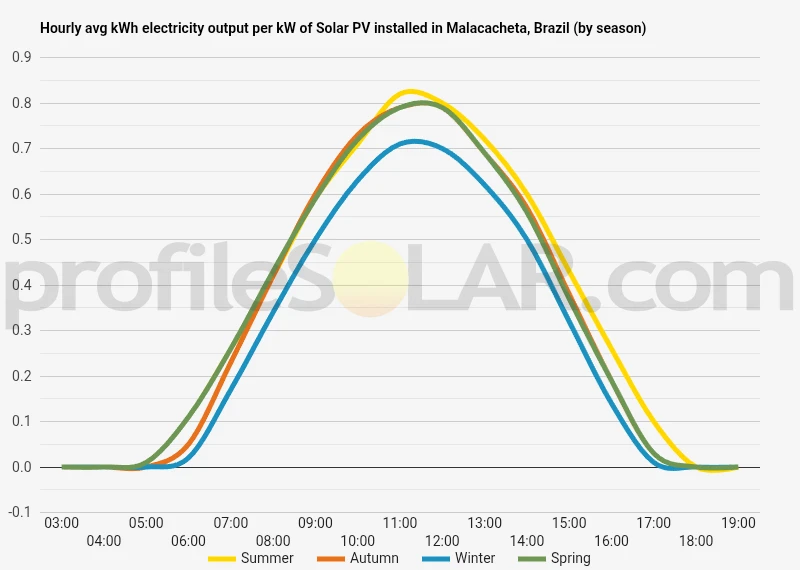

Solar output per kW of installed solar PV by season in Malacacheta

Seasonal solar PV output for Latitude: -17.8361, Longitude: -42.0924 (Malacacheta, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Malacacheta, Brazil

To maximize your solar PV system's energy output in Malacacheta, Brazil (Lat/Long -17.8361, -42.0924) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Malacacheta, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Malacacheta, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
2° North in Summer	23° North in Autumn	33° North in Winter	12° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Malacacheta, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Malacacheta, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Malacacheta, Brazil

Topographical Features Around Malacacheta

Malacacheta sits within the southeastern region of Minas Gerais state in Brazil, positioned in an area characterized by rolling hills and moderate elevation changes typical of the Brazilian Highlands. The terrain around this municipality features undulating landscapes with elevations generally ranging from approximately 200 to 800 meters above sea level. The topography is part of the broader Espinhaço Mountain Range system, though Malacacheta itself occupies a relatively gentler portion of this geological formation. The surrounding landscape consists primarily of weathered crystalline rocks and sedimentary formations that have been shaped over millions of years into rounded hills and broad valleys. These geological features create a series of natural plateaus and gentle slopes that characterize much of the region. The area experiences typical tropical highland conditions, with the elevated terrain contributing to more moderate temperatures than might be expected at this latitude. Drainage patterns in the region follow the natural topographical contours, with several small rivers and streams flowing through the valleys between the hills. The Jequitinhonha River basin influences the broader regional hydrology, though the immediate area around Malacacheta features smaller tributaries and seasonal watercourses that have carved modest valleys into the landscape over time.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Malacacheta would be the elevated plateaus and gently sloping hillsides that face predominantly south or southwest. These areas combine favorable topographical characteristics with practical accessibility considerations essential for major solar developments. The broad plateau areas northwest and southwest of the municipality center offer particularly attractive conditions for solar farms. These locations feature relatively flat terrain with gentle gradients that minimize the need for extensive ground preparation while providing excellent solar exposure throughout the day. The stable geological foundation in these areas, composed primarily of weathered crystalline bedrock, would support the infrastructure requirements of large-scale installations. Valley floors and lower-lying areas, while potentially offering flat terrain, may be less suitable due to potential drainage issues during the rainy season and possible morning fog formation that could reduce solar efficiency. The higher elevation sites not only avoid these concerns but also benefit from clearer atmospheric conditions and reduced dust accumulation. Areas with southern and southwestern exposures on the moderate slopes surrounding Malacacheta would be particularly well-suited for solar development. These locations can take advantage of natural terrain angles that optimize panel positioning while maintaining accessibility for construction and maintenance vehicles. The existing road network in the region provides reasonable access to many of these elevated sites, though some infrastructure development might be necessary for the most optimal locations. The relatively stable climate patterns and low seismic activity in this part of Minas Gerais contribute to the overall suitability of the region for long-term solar installations. The crystalline bedrock foundation provides excellent stability for mounting systems, while the moderate elevation helps ensure consistent atmospheric conditions favorable to solar energy generation throughout the year.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
