Mandirituba, Paraná, Brazil presents a moderately good location for year-round solar energy generation, though it experiences significant seasonal variation typical of its Southern Sub Tropical climate zone.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer delivers the strongest performance at 6.17kWh per day per kilowatt of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best season with 5.05kWh daily output, while autumn drops to 4.48kWh per day. Winter presents the most challenging period with only 3.64kWh daily generation per kilowatt installed. This seasonal pattern means the location produces nearly 70% more energy in summer compared to winter. The shoulder seasons of spring and autumn provide intermediate performance levels, with spring being notably more productive than autumn.

Optimal Panel Configuration

For maximum year-round energy production at Mandirituba, Paraná, solar panels should be installed at a fixed tilt angle of 23 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Mandirituba region can impact solar energy generation:

• High humidity and frequent rainfall: The subtropical climate brings significant moisture, especially during summer months, which can reduce solar irradiance and create more frequent cloud cover
• Atmospheric haze: Humid conditions often create atmospheric haze that can scatter and reduce direct sunlight reaching solar panels
• Seasonal storms: The region may experience thunderstorms and severe weather that can temporarily block sunlight and potentially damage equipment
• Dust and pollen accumulation: The subtropical environment with abundant vegetation can lead to faster accumulation of organic matter on panel surfaces

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Regular cleaning systems: Install automated panel cleaning systems or establish frequent manual cleaning schedules to remove dust, pollen, and moisture residue
• Improved drainage: Ensure proper panel mounting with adequate drainage to prevent water pooling and promote quick drying after rainfall
• Weather-resistant equipment: Use solar panels and inverters rated for high humidity and temperature fluctuations typical of subtropical climates
• Strategic positioning: Install panels with sufficient spacing for air circulation to reduce moisture retention and improve cooling
• Lightning protection: Implement comprehensive grounding and surge protection systems due to increased thunderstorm activity in the region

Despite these environmental challenges, Mandirituba's solar potential remains viable for year-round energy generation, particularly when proper installation techniques and maintenance practices are employed to address the subtropical climate conditions.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

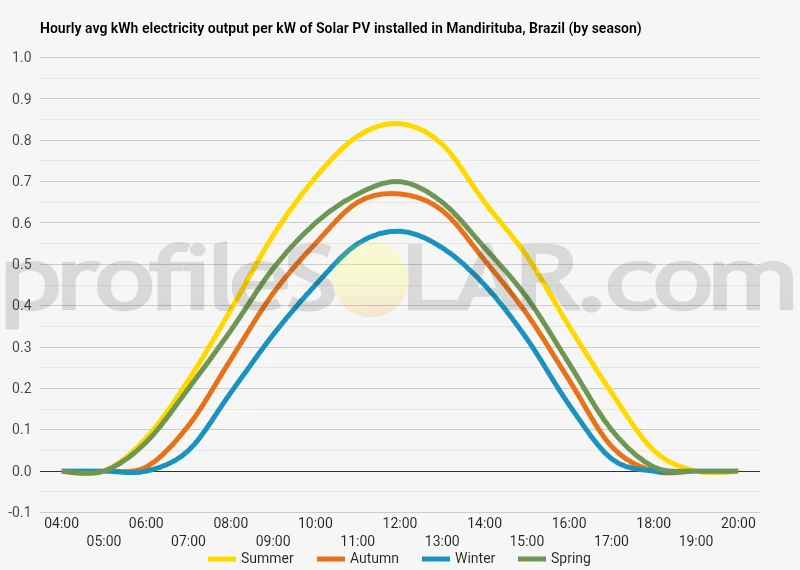

Solar output per kW of installed solar PV by season in Mandirituba

Seasonal solar PV output for Latitude: -25.8468, Longitude: -49.3311 (Mandirituba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 23° North in Mandirituba, Brazil

To maximize your solar PV system's energy output in Mandirituba, Brazil (Lat/Long -25.8468, -49.3311) throughout the year, you should tilt your panels at an angle of 23° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mandirituba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mandirituba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 23° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° North in Summer	32° North in Autumn	41° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mandirituba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mandirituba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mandirituba, Brazil

Topography and Terrain Features

Mandirituba sits within the First Plateau region of Paraná state, characterized by gently rolling hills and undulating terrain that forms part of Brazil's broader highland landscape. The municipality is positioned at an elevation of approximately 900 meters above sea level, placing it within a transitional zone between the coastal lowlands to the east and the higher interior plateaus to the west.

The local topography consists primarily of moderate slopes and rounded hilltops, with valleys carved by small streams and tributaries that eventually drain toward the Atlantic Ocean. The terrain exhibits the typical characteristics of weathered crystalline rock formations, creating a landscape of gentle undulations rather than steep mountainous features. Mixed forests of Araucaria and Atlantic Forest remnants cover much of the higher elevations, while agricultural lands occupy the more accessible valley floors and moderate slopes.

The region experiences a subtropical highland climate with distinct wet and dry seasons, influenced by its elevation and position relative to the Serra do Mar mountain range. Morning fog and cloud cover are common during certain periods, particularly in the cooler months, as moisture from the Atlantic Ocean encounters the elevated terrain.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Mandirituba would be the broader hilltops and gentle south-facing slopes that characterize much of the local landscape. These elevated areas offer several advantages including reduced vegetation density, better air circulation for equipment cooling, and fewer issues with morning fog that can affect lower-lying areas.

The agricultural zones on moderate slopes present excellent opportunities for solar development, particularly areas currently used for pasture or low-intensity farming. These locations typically have existing road access for construction and maintenance activities, while the gentle gradients minimize earthwork requirements and reduce installation costs. The rolling nature of the terrain allows for strategic positioning of solar arrays to optimize sun exposure throughout the day.

Areas to the west and southwest of the municipality center appear particularly promising, where the terrain opens into broader agricultural valleys with good southern exposure. These zones benefit from being somewhat sheltered from the moisture-laden winds coming from the Atlantic, potentially reducing cloud cover impacts during peak generation periods.

The proximity to existing electrical infrastructure along the BR-116 highway corridor provides additional advantages for grid connection, making areas within reasonable distance of this transportation route more economically viable for large-scale solar development. The relatively stable geology of the crystalline basement rocks also provides solid foundations for mounting systems without requiring extensive ground preparation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
