Manduri, Brazil presents a moderately favorable location for year-round solar energy generation, though it faces some seasonal challenges typical of its subtropical climate zone. Located at coordinates -23.0539, -49.3026, this area sits just outside the tropical belt in São Paulo state, where solar conditions vary more significantly between seasons compared to equatorial regions.

Seasonal Solar Performance

The solar energy output at Manduri shows considerable seasonal variation throughout the year. Summer delivers the strongest performance at 6.89 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 6.07 kWh per day per kW, while autumn drops to 5.32 kWh per day per kW. Winter presents the most challenging conditions, producing only 4.45 kWh per day per kW of installed capacity. This seasonal pattern reflects Manduri's position in the Southern Hemisphere, where summer months (December through February) receive the most direct sunlight, while winter months (June through August) experience reduced solar irradiance due to the sun's lower angle in the sky.

Optimal Panel Installation

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 21 degrees facing North. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data for the region.

Environmental and Weather Factors

Several local factors could potentially impact solar energy production in Manduri and require consideration during installation planning. The region's subtropical climate brings distinct wet and dry seasons, with the wet season typically occurring during summer months when solar potential is highest. Heavy rainfall and frequent cloud cover during these periods can temporarily reduce solar output, despite the season's overall strong performance. Thunderstorms common during summer afternoons may cause brief but significant drops in energy generation. High humidity levels throughout much of the year can lead to increased soiling of solar panels, as dust and organic matter tend to adhere more readily to panel surfaces in humid conditions. This buildup reduces light transmission and decreases energy output over time if not properly managed. The area may experience occasional hailstorms during severe weather events, which could potentially damage solar installations if panels are not adequately protected.

Preventative Measures for Enhanced Performance

Several installation strategies can help maximize solar energy production despite these environmental challenges:

• Install panels with adequate spacing and ventilation to prevent moisture buildup and allow for proper air circulation
• Use high-quality mounting systems designed to withstand local weather conditions, including strong winds and potential hail
• Implement regular cleaning schedules, particularly during and after the wet season when soiling tends to be most problematic
• Consider anti-soiling coatings on panels to reduce dirt and organic matter adhesion
• Install monitoring systems to track performance and identify when cleaning or maintenance is needed

Proper drainage around the installation site helps prevent water accumulation that could lead to equipment damage or reduced performance. Additionally, selecting panels and inverters rated for high humidity environments ensures reliable long-term operation in Manduri's subtropical climate. Despite these considerations, Manduri's location offers reasonable solar potential, particularly during spring and summer months when energy demand for cooling may be highest. The key to success lies in proper system design and maintenance practices that account for local environmental conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

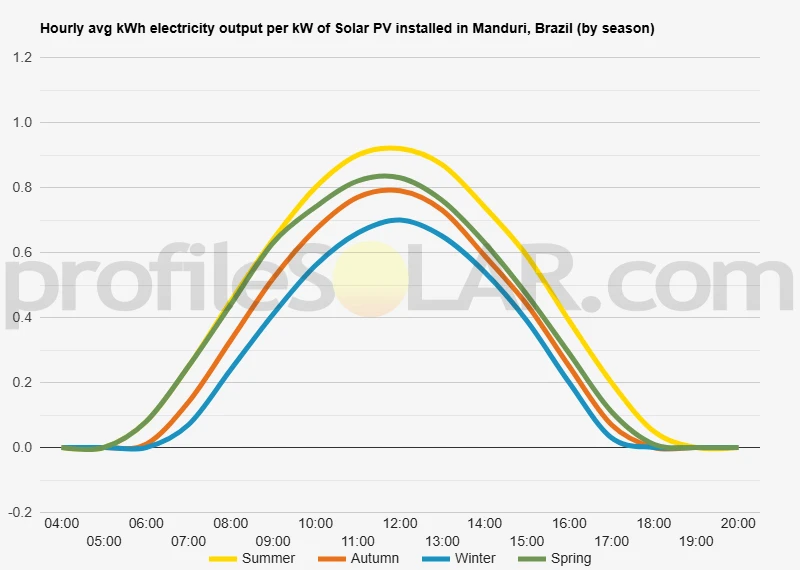

Solar output per kW of installed solar PV by season in Manduri

Seasonal solar PV output for Latitude: -23.0539, Longitude: -49.3026 (Manduri, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Manduri, Brazil

To maximize your solar PV system's energy output in Manduri, Brazil (Lat/Long -23.0539, -49.3026) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manduri, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manduri, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	39° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manduri, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manduri, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manduri, Brazil

Topographical Features Around Manduri

The region surrounding Manduri in São Paulo state features predominantly rolling hills and gentle undulations characteristic of the Brazilian Plateau's western edge. This area sits within the broader Paranapanema River basin, where the landscape consists of moderately elevated terrain with elevations typically ranging from 400 to 600 meters above sea level. The topography is generally favorable for development, with slopes that are neither too steep nor completely flat. The terrain around Manduri exhibits a mix of agricultural plateaus and shallow valleys carved by small tributaries of the Paranapanema River system. These geological formations create a landscape of moderate relief, where the highest points offer expansive views across the surrounding countryside. The soil composition in this region reflects its position on ancient sedimentary formations, contributing to both the area's agricultural productivity and its stability for infrastructure development.

Drainage Patterns and Water Features

The local drainage network consists of several small streams and seasonal watercourses that flow generally westward toward the Paranapanema River. These waterways have created subtle valleys and depressions in the landscape, while the interfluves between them form broad, gently sloping ridges. The drainage pattern is dendritic, resembling the branches of a tree, which is typical for areas with relatively uniform rock types and gentle regional slopes. During the wet season, some of the lower-lying areas may experience temporary flooding or waterlogging, particularly in the valley bottoms and areas with poor drainage. However, the majority of the elevated terrain remains well-drained throughout the year, making it suitable for various types of development and land use.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Manduri would be the elevated plateaus and gentle south-facing slopes that dominate the regional landscape. These areas offer several advantages including stable ground conditions, minimal shading from topographical features, and excellent accessibility for construction and maintenance activities. The broad ridgetops and interfluves between drainage channels present ideal conditions for solar farms, as they provide extensive flat to gently sloping surfaces with minimal obstruction. These elevated areas also benefit from consistent air circulation, which helps maintain optimal operating temperatures for solar panels. The relatively uniform topography across these plateaus allows for efficient panel arrangement and reduces the complexity of installation. Areas to avoid would include the narrow valley bottoms where seasonal flooding might occur, steep-sided slopes that would require extensive grading, and locations too close to existing watercourses where environmental restrictions might apply. The gentle nature of most slopes in the region means that even areas with modest inclines could be suitable with appropriate engineering, particularly those with southern exposure that would maximize solar collection throughout the day. The agricultural nature of much of the surrounding landscape also suggests that large parcels of relatively flat, accessible land may be available for solar development, particularly on properties where farming operations could coexist with solar installations or where agricultural productivity may be declining.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
