Mangaratiba, Rio de Janeiro, Brazil presents a moderately good location for year-round solar energy generation, though it's not among the most ideal tropical locations for solar PV systems. Located in Brazil's coastal region, this area receives consistent sunlight throughout the year, which is typical for tropical and subtropical zones.

Seasonal Solar Performance

The solar energy output varies significantly across the seasons at this location. Summer delivers the strongest performance at 6.15 kWh per day for each kilowatt of installed solar capacity, making it the optimal time for solar generation. Spring follows as the second-best season with 5.32 kWh/day per kW, while autumn produces 5.24 kWh/day per kW. Winter shows the lowest output at 4.54 kWh/day per kW, representing about 26% less energy production compared to summer months. This seasonal variation means that solar systems will generate approximately 35% more electricity during the peak summer months compared to the winter low point. For fixed panel installations at this location, the ideal tilt angle is 22 degrees facing north to maximize total year-round energy production.

Environmental and Weather Challenges

Several local factors can significantly impact solar energy production in Mangaratiba and require careful consideration during installation: High Humidity and Salt Air Being located near Brazil's coast, Mangaratiba experiences high humidity levels and salt-laden air that can corrode solar panel frames, mounting systems, and electrical connections over time. This coastal environment accelerates the degradation of metal components and can reduce system lifespan. Heavy Rainfall and Storm Activity The region experiences intense tropical rainfall, particularly during wet seasons, which can temporarily reduce solar output and create challenges for system maintenance. Heavy rains can also cause flooding in low-lying areas, potentially damaging ground-mounted systems or electrical equipment. Dust and Debris Accumulation Tropical vegetation growth and seasonal dust can accumulate on solar panels, reducing their efficiency by blocking sunlight from reaching the photovoltaic cells.

Preventative Installation Measures

To maximize energy production and system longevity in Mangaratiba's challenging environment, several protective measures should be implemented:

• Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed to resist saltwater corrosion
• Apply protective coatings to all metal components and ensure proper grounding systems to prevent galvanic corrosion
• Install panels with adequate drainage and ventilation to prevent water accumulation and allow for proper air circulation
• Position electrical components and inverters in weatherproof enclosures elevated above potential flood levels
• Design mounting systems with steeper tilt angles where possible to promote self-cleaning during rainfall

Regular maintenance becomes particularly important in this environment. Monthly cleaning of panels during dry periods and quarterly inspections of all electrical connections and mounting hardware will help maintain optimal performance. Installing monitoring systems allows for quick identification of performance drops that might indicate cleaning needs or equipment issues. Despite these challenges, Mangaratiba's consistent tropical sunlight makes it a viable location for solar energy generation, provided that proper installation techniques and regular maintenance schedules are followed to address the local environmental conditions.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

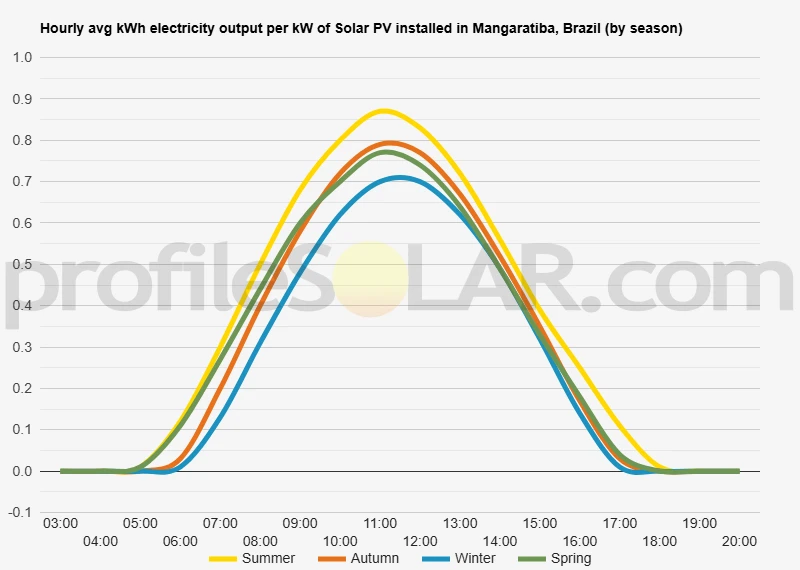

Solar output per kW of installed solar PV by season in Mangaratiba

Seasonal solar PV output for Latitude: -22.9778, Longitude: -44.0062 (Mangaratiba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Mangaratiba, Brazil

To maximize your solar PV system's energy output in Mangaratiba, Brazil (Lat/Long -22.9778, -44.0062) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mangaratiba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mangaratiba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mangaratiba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mangaratiba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mangaratiba, Brazil

Topographical Features of Mangaratiba

Mangaratiba sits along Brazil's stunning Costa Verde coastline in Rio de Janeiro state, where the Atlantic Ocean meets dramatic mountainous terrain. The municipality occupies a unique position where the Serra do Mar mountain range descends sharply toward the sea, creating a landscape of steep ridges, narrow valleys, and coastal plains. This topographical complexity results from ancient geological processes that formed the Brazilian Highlands, with elevations ranging from sea level to peaks exceeding 1,000 meters within relatively short distances. The coastal zone features a narrow strip of relatively flat terrain interrupted by rocky headlands and small bays. Moving inland, the topography becomes increasingly rugged as the Serra do Mar rises abruptly from the coastal lowlands. These mountains form part of the Great Escarpment that runs parallel to Brazil's southeastern coast, characterized by steep slopes, deep valleys carved by numerous streams, and dense Atlantic Forest coverage on the higher elevations. The region's drainage patterns reflect this mountainous terrain, with several rivers and streams flowing from the highland areas toward the ocean. These waterways have carved valleys and created alluvial deposits in some areas, contributing to the varied topographical mosaic. The combination of coastal influence and mountainous terrain creates distinct microclimates and vegetation zones throughout the municipality.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie in the transitional zone between the immediate coastal strip and the steeper mountain slopes. These areas typically feature gentler gradients and larger continuous parcels of land suitable for utility-scale development. The coastal plains, while flat, are often constrained by existing development, environmental protections, and proximity to sensitive marine ecosystems. Rolling hills and plateaus at moderate elevations present excellent opportunities for solar farms. These elevated areas benefit from reduced atmospheric interference while maintaining accessibility for construction and maintenance activities. The terrain in these zones often allows for optimal panel orientation and spacing without excessive grading requirements. Areas with southern and southeastern exposures on gentle slopes prove particularly attractive for solar development, as they can maximize energy capture throughout the day. The region's topographical diversity means that careful site selection can identify locations with minimal shading from surrounding ridges and peaks. Agricultural areas and pasturelands scattered throughout the less steep portions of the landscape represent prime candidates for solar development. These locations typically have established access roads, cleared vegetation, and fewer environmental constraints compared to forested mountain slopes. The transition zones between different land uses often provide the space and accessibility needed for large-scale renewable energy projects. Avoiding the steepest mountain slopes and environmentally sensitive areas near waterways ensures that solar installations can be developed sustainably while taking advantage of the region's favorable climatic conditions. The key lies in identifying those portions of the landscape that balance accessibility, suitable terrain characteristics, and minimal environmental impact.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
