Solar Energy Potential in Manhumirim, Minas Gerais, Brazil

Manhumirim, Minas Gerais, Brazil, located at latitude -20.3473 and longitude -41.9334, offers generally favorable conditions for solar PV energy generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns, though with some seasonal variations that affect energy production. The solar energy output varies across the meteorological seasons, with the highest production occurring during summer months. During summer, each kilowatt of installed solar capacity generates approximately 6.12kWh per day. Autumn sees a slight decrease to 5.50kWh/day, while winter represents the annual low point with 4.56kWh/day. Production rebounds in spring to 5.13kWh/day.

Optimal Panel Installation

For fixed solar panel installations in Manhumirim, Minas Gerais, the ideal tilt angle to maximize year-round energy production is 19 degrees facing North. This specific angle has been calculated based on the location's latitude and solar elevation patterns throughout the year, weighted by the daily photovoltaic potential at this tropical location.

Seasonal Considerations

The summer months (December through February) represent the peak solar generation period in Manhumirim, Minas Gerais, making this an excellent time for energy production. While winter shows a reduction of approximately 25% compared to summer values, it's worth noting that even winter production remains relatively strong compared to many non-tropical locations globally.

Environmental and Weather Factors

Several environmental factors may affect solar production in Manhumirim:

• Rainfall patterns: The region experiences a wet season which can reduce solar efficiency due to cloud cover. Installing panels with good drainage and self-cleaning properties can mitigate these effects.
• Dust and pollen: Agricultural activities in the region may generate dust that can accumulate on panels. Regular cleaning maintenance or automated cleaning systems are recommended.
• Temperature: High tropical temperatures can reduce panel efficiency. Using panels with good temperature coefficients and ensuring adequate airflow beneath the mounting structure can help manage this issue.
• Vegetation growth: The tropical climate promotes rapid vegetation growth that could potentially shade panels. Regular site maintenance to control surrounding vegetation is advisable.

Despite these considerations, Manhumirim remains quite favorable for solar energy generation, with relatively high production values throughout the year. The consistent tropical sunlight patterns provide a reliable energy source, with only moderate seasonal variations compared to locations at higher latitudes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

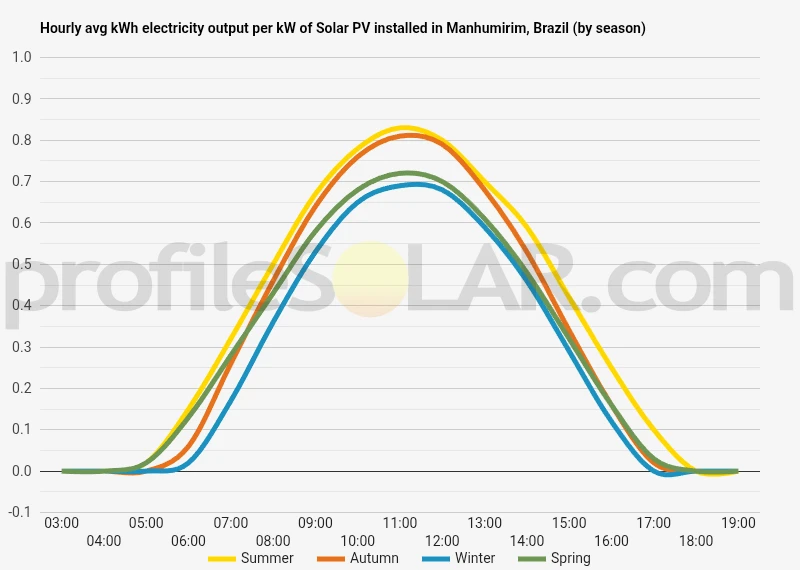

Solar output per kW of installed solar PV by season in Manhumirim

Seasonal solar PV output for Latitude: -20.3473, Longitude: -41.9334 (Manhumirim, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Manhumirim, Brazil

To maximize your solar PV system's energy output in Manhumirim, Brazil (Lat/Long -20.3473, -41.9334) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manhumirim, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manhumirim, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manhumirim, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manhumirim, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manhumirim, Brazil

The region surrounding Manhumirim in Brazil's Minas Gerais state features a predominantly mountainous topography, characterized by rolling hills and steep slopes that form part of the Atlantic Forest biome. Manhumirim itself sits at an elevation of approximately 650 meters above sea level, nestled within the Serra do Caparaó mountain range. This mountainous terrain continues throughout much of the surrounding area, with elevations varying significantly across relatively short distances. The landscape is marked by numerous valleys cut by small rivers and streams that flow through the region, creating a patchwork of ridges and depressions. These valleys often run in a roughly north-south orientation, following the general alignment of the regional mountain ranges. The terrain becomes increasingly rugged as one moves eastward toward the Caparaó National Park, where Pico da Bandeira, one of Brazil's highest mountains, reaches over 2,890 meters in elevation.

Vegetation and Land Use

The natural vegetation consists primarily of Atlantic Forest remnants, though much of the original forest cover has been replaced by agricultural land, particularly coffee plantations which thrive in the local climate and soil conditions. The hillsides around Manhumirim display a mosaic of forest fragments, pastures, and cultivated areas, with the steeper slopes often retaining more of their forest cover due to the difficulty of cultivation.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic installations, the optimal areas near Manhumirim would be the relatively flatter plateaus and gentler slopes that can be found interspersed among the more rugged terrain. These areas would provide the necessary space for extensive arrays while minimizing the need for significant land modification. The northwestern direction from Manhumirim offers some promising locations, where the topography gradually becomes less steep and more open areas can be found. These locations would provide adequate space for large installations while still being reasonably close to existing infrastructure. South and southwest of Manhumirim, where some broader valley floors exist, could also accommodate substantial solar installations. These areas benefit from reduced shadowing effects from surrounding hills compared to the narrower valleys in other directions. The elevated plateaus in the region, while limited in extent, provide excellent exposure to sunlight throughout the day. These natural terraces, where they occur with sufficient area, would be prime locations for solar PV development as they typically have fewer obstructions to block sunlight and often feature less valuable agricultural land than the fertile valley bottoms. Areas to avoid would include the steeper eastern slopes leading toward Caparaó National Park, where the combination of rugged terrain, environmental protections, and increased cloud cover due to orographic effects would make solar development both practically difficult and potentially inappropriate from an environmental perspective.

Topographical Considerations for Installation

Any large-scale solar development in this region would need to account for the directional aspect of slopes, with north-facing slopes in the southern hemisphere receiving more direct sunlight throughout the year. The undulating nature of the terrain means that careful site selection is essential to maximize energy generation potential. The region's soil stability would also be an important consideration, as the combination of steep slopes and periodic heavy rainfall could create erosion concerns for large installations if not properly engineered. Areas with more stable soil profiles and moderate slopes would therefore be preferable from both a construction and maintenance perspective.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
