Manoel Viana, Rio Grande do Sul, Brazil presents a moderately good location for year-round solar energy generation, though with notable seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant fluctuation throughout the year. Summer delivers the strongest performance at 7.86 kWh per day per kW of installed capacity, making it the prime season for solar generation. Spring follows as the second-best period with 6.24 kWh per day per kW, offering solid energy production as the region transitions into its peak solar months. However, the location experiences a substantial drop in solar output during cooler months. Autumn production falls to 4.80 kWh per day per kW, while winter represents the weakest period with only 3.48 kWh per day per kW of installed solar capacity.

Optimal Panel Configuration

For fixed panel installations at Manoel Viana, Rio Grande do Sul, the ideal tilt angle is 25 degrees North to maximize total year-round solar production. This specific angle has been calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these factors using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at this location:

• Seasonal cloud cover and precipitation patterns that coincide with the region's subtropical climate
• Dust and agricultural particles from surrounding farming activities that can accumulate on solar panels
• High humidity levels typical of subtropical regions that may affect equipment performance
• Potential for severe weather events including hail storms during certain seasons

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help:

• Install panels with adequate spacing to allow natural rain cleaning and air circulation
• Use anti-soiling coatings on panel surfaces to reduce dust accumulation
• Implement regular cleaning schedules, particularly during dry seasons when dust buildup is most problematic
• Choose panels and mounting systems rated for high humidity and temperature variations
• Install hail-resistant panels or protective screens in areas prone to severe weather
• Ensure proper drainage around installations to prevent water pooling during heavy rains

Despite the seasonal variations and environmental considerations, Manoel Viana offers reasonable solar potential, particularly during the summer and spring months when energy production peaks.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

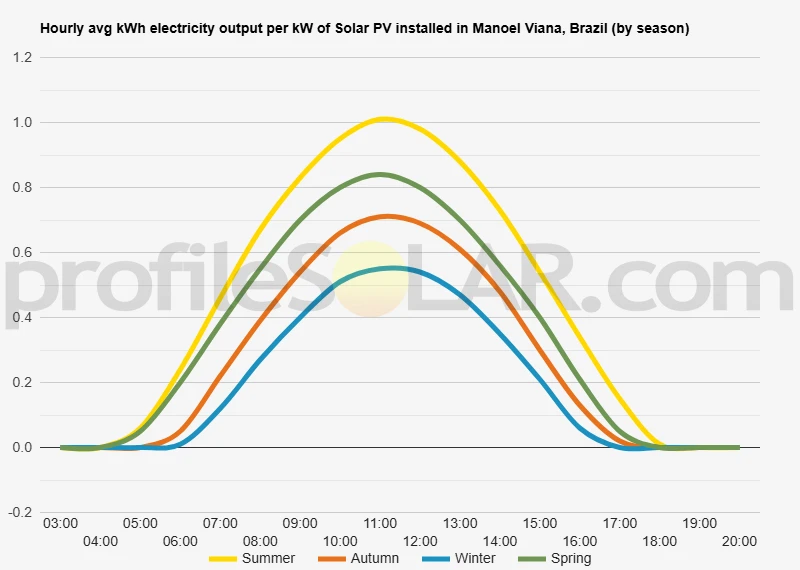

Solar output per kW of installed solar PV by season in Manoel Viana

Seasonal solar PV output for Latitude: -29.407, Longitude: -55.5687 (Manoel Viana, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Manoel Viana, Brazil

To maximize your solar PV system's energy output in Manoel Viana, Brazil (Lat/Long -29.407, -55.5687) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Manoel Viana, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Manoel Viana, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° North in Summer	34° North in Autumn	44° North in Winter	22° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Manoel Viana, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Manoel Viana, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Manoel Viana, Brazil

Topographical Features of Manoel Viana

Manoel Viana sits in the western region of Rio Grande do Sul, Brazil's southernmost state, within a landscape characterized by gently rolling hills and expansive grasslands typical of the Pampa biome. The terrain around this municipality consists primarily of undulating plains with modest elevation changes, creating a relatively flat to mildly hilly topography that extends across much of the surrounding region. The area forms part of the broader Rio de la Plata basin, where the landscape has been shaped by ancient geological processes and river systems over millions of years.

The immediate vicinity features a mix of natural grasslands interspersed with agricultural fields, primarily used for cattle ranching and crop cultivation. Small streams and seasonal watercourses meander through the landscape, creating shallow valleys that add gentle contours to the otherwise predominantly flat terrain. The elevation varies gradually across the region, with no significant mountain ranges or steep escarpments present in the immediate area.

The soil composition consists largely of fertile sedimentary deposits, supporting the region's agricultural activities. Native vegetation includes grasses and scattered shrubs characteristic of the Pampa ecosystem, though much of the original landscape has been modified for farming and livestock grazing. The relatively open nature of the terrain, with minimal tree cover in many areas, creates expansive views across the countryside.

Optimal Areas for Large-Scale Solar Development

The gently rolling topography around Manoel Viana presents several advantages for large-scale solar photovoltaic installations. The most suitable areas would be the flatter sections of grassland and converted agricultural fields, particularly those with southern-facing slopes that can maximize solar exposure throughout the day. These locations offer the dual benefits of minimal grading requirements and reduced installation costs compared to steeper terrain.

Areas with slight elevations above the surrounding landscape would be particularly favorable, as they tend to experience better air circulation and reduced potential for moisture accumulation, which can affect solar panel performance. The elevated positions also minimize the risk of flooding during heavy rainfall periods, which can occur in this region during certain seasons.

The extensive grassland areas to the north and east of Manoel Viana appear especially promising for solar development, as they combine relatively flat terrain with good accessibility for construction and maintenance vehicles. These areas typically have minimal existing infrastructure that would need to be relocated, and the open landscape provides flexibility in designing optimal panel layouts and spacing.

Former or current agricultural fields that are not prime farmland could also serve as excellent locations for solar installations. These areas often have existing road access and may have already been cleared and leveled to some degree, potentially reducing site preparation costs. The transition from agricultural use to solar energy production can provide landowners with alternative revenue streams while maintaining productive use of the land.

Areas near existing electrical transmission infrastructure would be particularly advantageous, as they would minimize the costs and complexity of connecting large solar installations to the electrical grid. The relatively flat terrain throughout much of the region also facilitates the construction of access roads and transmission lines needed to support major solar developments.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
