Mantena, Minas Gerais, Brazil presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -18.6855, -41.1075, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than dramatic changes in solar availability.

Solar Energy Production Potential

The solar energy output at Mantena demonstrates strong performance across all seasons. Summer delivers the highest production at 6.08 kWh per day for each kilowatt of installed solar capacity. Spring follows with 5.25 kWh/day, while autumn generates 5.51 kWh/day. Even during winter, the location maintains respectable output at 4.39 kWh/day per kilowatt installed. For optimal year-round energy production, solar panels at this location should be installed at a fixed tilt angle of 17 degrees facing north. This angle maximizes total annual solar output by accounting for the sun's path throughout the year and the area's specific latitude.

Optimal Solar Generation Periods

The data reveals that summer and autumn represent the peak solar generation seasons at Mantena. Summer offers the absolute highest daily energy production, making it the ideal time for maximum solar output. The relatively strong performance during autumn extends the peak production period well into the year. While winter shows the lowest production figures, the output remains substantial enough to make year-round solar installation economically viable. Spring marks the beginning of the solar production recovery, leading into the high-output summer months.

Environmental and Weather Challenges

Several environmental factors could potentially impact solar energy production at Mantena and require consideration during installation planning. The tropical climate brings significant rainfall during wet seasons, which can reduce solar irradiance when heavy cloud cover persists. Additionally, the high humidity typical of tropical regions can lead to increased dust and debris accumulation on solar panels, reducing their efficiency over time.

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels with adequate drainage systems to prevent water accumulation during heavy rains
• Implement regular cleaning schedules to remove dust, pollen, and organic debris that accumulate more rapidly in humid tropical conditions
• Use high-quality mounting systems resistant to corrosion from humidity and occasional severe weather
• Consider slightly steeper panel angles than the optimal 17 degrees to promote better self-cleaning through rainfall

The consistent solar resource at Mantena makes it an excellent location for solar PV installations, with proper maintenance and installation techniques addressing the manageable environmental challenges typical of tropical climates.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

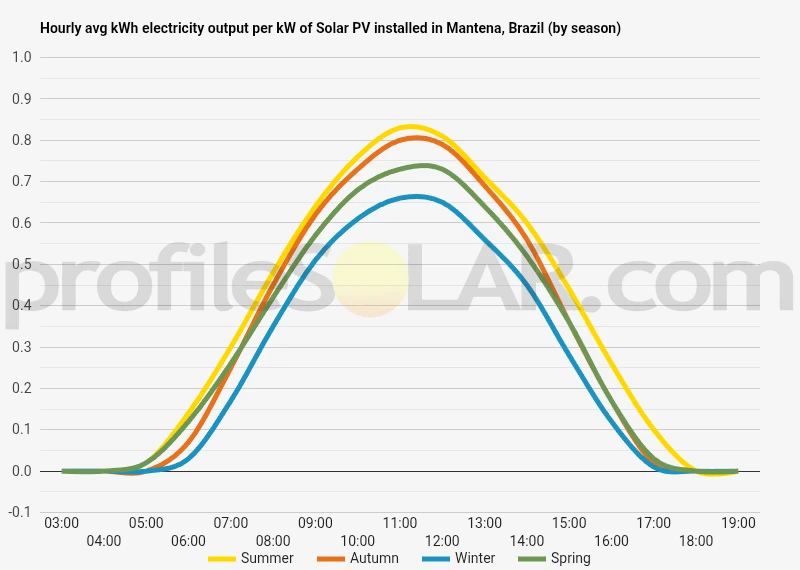

Solar output per kW of installed solar PV by season in Mantena

Seasonal solar PV output for Latitude: -18.6855, Longitude: -41.1075 (Mantena, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° North in Mantena, Brazil

To maximize your solar PV system's energy output in Mantena, Brazil (Lat/Long -18.6855, -41.1075) throughout the year, you should tilt your panels at an angle of 17° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mantena, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mantena, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	24° North in Autumn	34° North in Winter	13° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mantena, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mantena, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mantena, Brazil

Topographical Features of the Mantena Region

Mantena sits within the eastern portion of Minas Gerais state in Brazil, positioned in a transitional zone between the Atlantic Forest remnants and the more open landscapes of the Doce River valley system. The terrain around this municipality is characterized by gently rolling hills and moderate elevation changes, with the landscape gradually rising from the river valleys toward the surrounding uplands.

The region features a series of low ridges and broad valleys that create an undulating topography typical of the Brazilian Highlands' eastern margins. These hills generally trend in a north-south direction, following the geological grain of the ancient crystalline basement rocks that underlie much of this part of Minas Gerais. The elevation varies moderately across the area, with valley floors giving way to rounded hilltops and gentle slopes that rarely present steep gradients.

Water courses play a significant role in shaping the local landscape, with several tributaries of the Doce River system creating fertile valleys between the hills. These waterways have carved shallow but distinct channels through the terrain over geological time, leaving behind alluvial deposits in the valley bottoms while exposing older rock formations on the hillsides.

Vegetation and Land Use Patterns

The natural vegetation of the Mantena area represents a mix of Atlantic Forest fragments on the hillsides and gallery forests along the watercourses, though much of the original forest cover has been converted to agricultural use over the past century. Pastureland for cattle grazing dominates much of the landscape, particularly on the gentler slopes and valley floors where accessibility is better.

Coffee cultivation historically played an important role in shaping the land use patterns, with many hillsides terraced or cleared for plantations. While coffee remains present, the agricultural landscape has diversified to include other crops and extensive cattle ranching operations that utilize both the natural grasslands and improved pastures established on former forest lands.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Mantena would be the broader valley floors and gentle hillside slopes that face generally northward. These areas offer several advantages including relatively flat to gently sloping terrain that minimizes grading requirements and reduces installation costs while maximizing panel efficiency through optimal sun exposure angles.

The elevated plateaus and ridge tops scattered throughout the region present excellent opportunities for solar development due to their exposure to unobstructed sunlight throughout the day. These higher elevations typically experience less atmospheric interference and avoid the morning fog or mist that can occasionally settle in the valleys during certain seasons.

Areas currently used as extensive cattle pasture on gentle to moderate slopes would be particularly well-suited for solar installations, as they are already cleared of vegetation, have established access routes, and often feature relatively stable soils. The existing agricultural infrastructure in these zones, including roads and power transmission corridors, would facilitate the integration of solar facilities into the regional energy grid.

The transitional zones between valley floors and hillsides offer an ideal compromise between accessibility and solar exposure. These areas typically have sufficient slope to promote natural drainage while avoiding the steeper gradients that would require extensive site preparation. Additionally, their position above the immediate valley floors helps ensure consistent air circulation, which aids in keeping solar panels operating at optimal temperatures.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
