Solar Energy Potential in Marau, Rio Grande do Sul, Brazil

Marau, Rio Grande do Sul, Brazil, located in the Southern Sub Tropics, offers a variable but generally favorable environment for solar energy production throughout the year. The location experiences significant seasonal variations in solar energy generation potential. The solar production at this location follows a clear seasonal pattern. Summer months deliver the highest energy output at 7.42kWh per day for each kilowatt of installed capacity. Spring follows as the second most productive season with 6.05kWh/day. Autumn sees a moderate decrease to 4.91kWh/day, while winter represents the lowest production period with just 3.61kWh/day per installed kilowatt.

Seasonal Considerations

This seasonal pattern means that December through February (summer in the Southern Hemisphere) represents the peak production period in Marau. During these months, the higher sun angle and typically clearer skies contribute to nearly double the energy production compared to the winter months of June through August. The shoulder seasons of spring (September-November) and autumn (March-May) offer moderate production levels, with spring being notably more productive than autumn. This makes spring an unexpectedly good production period, likely due to favorable weather conditions and moderate temperatures that enhance panel efficiency.

Optimal Panel Installation

For maximizing year-round solar energy production in Marau, Rio Grande do Sul, fixed solar panels should be installed at a tilt angle of 25 degrees facing North. This specific angle has been calculated to optimize annual energy capture based on the location's latitude and seasonal solar patterns.

Environmental Considerations

Several environmental factors could potentially impact solar production in Marau. The region can experience periodic heavy rainfall and thunderstorms, particularly during summer months. These weather events can temporarily reduce solar output and potentially damage improperly secured installations. Dust and pollen accumulation may also be significant in this agricultural region, gradually reducing panel efficiency if not addressed. Additionally, morning fog or mist can sometimes delay peak production hours, particularly in autumn and winter.

Preventative Measures

To maximize production despite these challenges, several preventative measures should be considered:

• Install secure mounting systems designed to withstand strong winds and storms common to the region
• Implement a regular cleaning schedule, particularly during dry periods when dust accumulation is highest
• Consider automated cleaning systems for larger installations
• Ensure proper drainage around ground-mounted systems to prevent water accumulation
• Use high-quality inverters with wide operating ranges to maximize production during varying light conditions

With these considerations addressed, a properly designed solar PV system in Marau can provide reliable energy generation, with particularly strong performance during summer and spring months, helping to offset the lower winter production.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

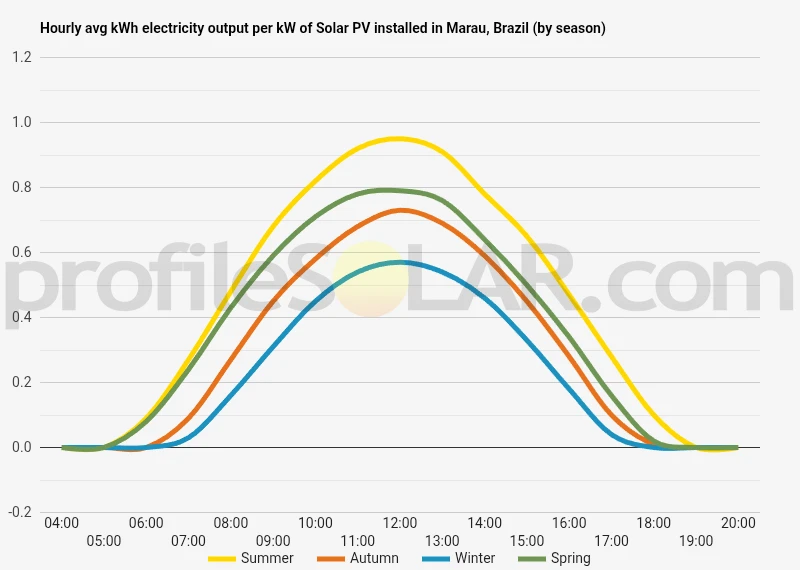

Solar output per kW of installed solar PV by season in Marau

Seasonal solar PV output for Latitude: -28.4411, Longitude: -52.2723 (Marau, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° North in Marau, Brazil

To maximize your solar PV system's energy output in Marau, Brazil (Lat/Long -28.4411, -52.2723) throughout the year, you should tilt your panels at an angle of 25° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Marau, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Marau, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° North in Summer	34° North in Autumn	43° North in Winter	21° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Marau, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Marau, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Marau, Brazil

The topography surrounding Marau, Brazil presents a diverse and undulating landscape characteristic of the northern Rio Grande do Sul state. Situated on the southern edge of the Brazilian plateau, this region features rolling hills interspersed with shallow valleys that create a gently varied terrain. The elevation in the area averages approximately 600-700 meters above sea level, positioning it in what is known locally as the "Planalto Médio" or Middle Plateau region. The landscape around Marau exhibits a mixture of open fields, agricultural lands, and patches of remaining Atlantic Forest vegetation. The terrain gradually slopes from higher elevations in the north and northeast toward lower areas in the southwest. Several small rivers and streams cut through the region, creating natural drainage systems that have, over millennia, contributed to the sculpting of the current topography.

Soil and Surface Characteristics

The soils in the Marau region are predominantly classified as fertile oxisols (latossolos in Portuguese), which are typical of subtropical regions. These soils are generally deep, well-drained, and have developed from basaltic rock weathering. The land surface alternates between exposed areas and those covered with agricultural crops, primarily soybean, corn, and wheat, depending on the season.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas near Marau would be the gently sloping, south-facing hillsides that receive consistent solar exposure throughout the day. Particularly promising are the elevated plateaus to the north and northeast of the city, where the combination of higher altitude and reduced morning fog offers enhanced solar radiation potential. The areas approximately 5-10 kilometers east of Marau's urban center present especially favorable conditions. These locations combine relatively flat terrain (reducing installation costs) with good drainage (minimizing flood risk) and minimal shading from surrounding topographical features. Additionally, these areas typically have less agricultural productivity than the prime farmland in the valleys, making them economically viable for conversion to energy production. Another promising zone lies to the northwest of Marau, where several extended ridgelines with gradual slopes face the optimal northerly direction (in the Southern Hemisphere) for maximizing solar capture. These ridges, rising approximately 50-100 meters above the surrounding landscape, would minimize early morning and late afternoon shading effects that can reduce overall system efficiency. The southwestern areas, while generally having suitable flat terrain, may experience slightly more atmospheric moisture from the lower elevations and proximity to water bodies, potentially reducing optimal conditions for solar energy capture compared to the higher northeastern zones.

Topographical Challenges

Despite the generally favorable conditions, certain topographical features present challenges for solar development. The numerous small valleys that intersect the region can create localized fog conditions during certain seasons, particularly in winter mornings. Additionally, some steeper slopes would require more extensive earthwork to prepare suitable foundations for solar arrays. The region also experiences seasonal variation in rainfall patterns, with potential for erosion on newly cleared land. This necessitates careful site selection and preparation to ensure long-term stability of large-scale installations. The most suitable sites would incorporate natural drainage patterns that minimize erosion risk while maximizing exposure to the sun's path across the sky.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.
