Solar Energy Potential in Maravilha, Santa Catarina, Brazil

Maravilha, Santa Catarina, Brazil, located in the Southern Sub Tropics, offers a promising location for solar energy generation throughout the year. The seasonal variations in solar output provide insights into the effectiveness of photovoltaic (PV) systems in this area. Summer stands out as the most productive season, with an impressive 7.06 kWh of electricity generated per day for each kilowatt of installed solar capacity. Spring follows closely, yielding 6.06 kWh/day, while autumn produces a respectable 5.21 kWh/day. Winter, as expected, sees the lowest output at 3.83 kWh/day, but still contributes significantly to the overall annual production. The ideal times for solar generation in Maravilha are during the summer months, typically from December to February, when daylight hours are longest and solar intensity is at its peak. Spring and autumn also offer excellent conditions for solar energy production, making solar PV systems a viable option for most of the year.

Optimal Panel Installation

For those considering a fixed panel installation in Maravilha, Santa Catarina, the ideal tilt angle to maximize year-round solar production is 24 degrees facing North. This angle has been calculated to optimize energy capture across all seasons, taking into account the Earth's elliptical orbit and the location's specific latitude and longitude.

Environmental Considerations

While Maravilha generally provides favorable conditions for solar energy production, there are a few environmental factors to consider: 1. Rainfall: The region experiences significant rainfall, which could temporarily reduce solar output. To mitigate this, panels should be installed at the recommended angle to facilitate water runoff and self-cleaning. 2. Cloud cover: Occasional cloud cover, especially during the rainy season, may impact solar generation. Using high-efficiency panels and micro-inverters can help maximize energy production even in partially cloudy conditions. 3. Dust and pollen: Agricultural activities in the area may lead to dust and pollen accumulation on panels. Regular cleaning and maintenance of the solar array is crucial to maintain optimal performance. By addressing these factors during installation and maintenance, solar PV systems in Maravilha can achieve high levels of energy production throughout the year, making it an attractive location for solar energy investments.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

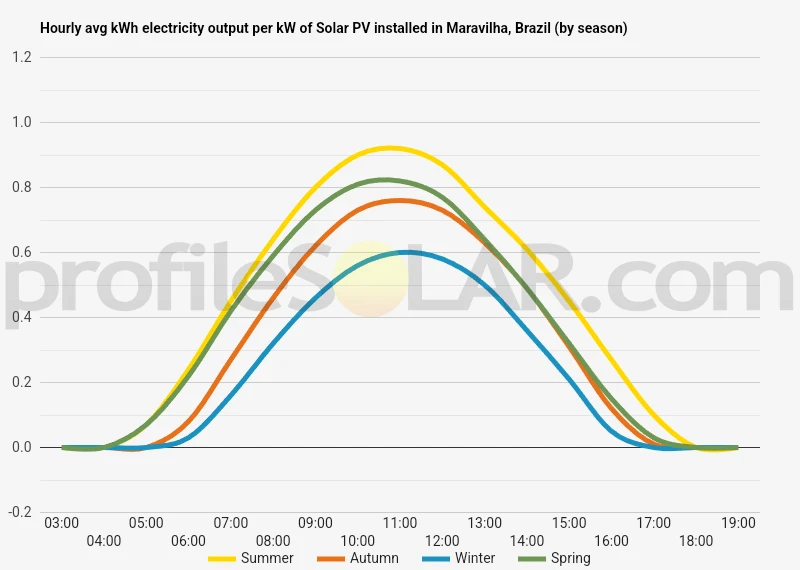

Solar output per kW of installed solar PV by season in Maravilha

Seasonal solar PV output for Latitude: -26.7541, Longitude: -53.1834 (Maravilha, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Maravilha, Brazil

To maximize your solar PV system's energy output in Maravilha, Brazil (Lat/Long -26.7541, -53.1834) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maravilha, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maravilha, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maravilha, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maravilha, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maravilha, Brazil

The topography around Maravilha, Brazil, located at latitude -26.7541 and longitude -53.1834, is characterized by a diverse landscape with rolling hills, gentle slopes, and some flatter areas interspersed throughout the region. This part of southern Brazil is situated within the Atlantic Forest biome, which has been significantly altered by human activity over the centuries. The terrain in and around Maravilha features a mix of agricultural lands, pastures, and remnants of native forest. The elevation in this area generally ranges from about 400 to 700 meters above sea level, creating a moderately undulating landscape. Small streams and rivers cut through the terrain, forming shallow valleys and contributing to the overall topographic variety.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations for solar PV projects in this region would be relatively flat or gently sloping areas with good exposure to sunlight throughout the day. Some of the more suitable areas for solar PV development near Maravilha would likely be found on the higher ground of the rolling hills, where there is less shadowing from surrounding terrain. These elevated areas often have clearer views of the sky and receive more consistent sunlight exposure. Agricultural lands that are less productive or have been set aside could also be potential candidates for solar PV installations. These areas are often already cleared of dense vegetation and have existing access roads, which can reduce the cost and environmental impact of developing a solar farm. It's important to note that while the topography around Maravilha offers some promising sites for solar PV, other factors such as grid connectivity, local regulations, and environmental considerations would also need to be taken into account when determining the most suitable locations for large-scale solar projects in this region.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
