Maresias, São Paulo, Brazil presents a reasonably good location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows clear seasonal patterns. Summer delivers the strongest performance at 6.24kWh per day per kW of installed solar capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 5.20kWh/day, while autumn produces 5.10kWh/day. Winter presents the most challenging period for solar generation, dropping to 4.12kWh/day per kW. This represents a significant 34% reduction compared to summer output, which is typical for locations at this latitude due to the sun's lower position during winter months.

Optimal Panel Configuration

For fixed panel installations at Maresias, São Paulo, the ideal tilt angle is 22 degrees facing North to maximize total year-round solar production. This angle has been calculated to optimize energy capture across all seasons by accounting for the sun's varying elevation throughout the year and weighting for solar irradiance potential.

Environmental and Weather Challenges

Several local factors at Maresias could potentially impact solar energy production:

• Coastal humidity and salt air exposure from the nearby Atlantic Ocean
• Tropical storm activity during certain seasons
• High rainfall periods that can reduce solar irradiance
• Sand and debris accumulation from the coastal environment

Preventative Measures for Better Performance

To combat these environmental challenges and ensure optimal energy production, several installation strategies should be considered:

• Use corrosion-resistant mounting systems and hardware designed for marine environments
• Install panels with anti-reflective coatings that resist salt buildup
• Design robust mounting structures to withstand high winds from coastal storms
• Implement regular cleaning schedules to remove salt, sand, and organic debris
• Consider micro-inverters or power optimizers to minimize impact from partial shading or soiling

Regular maintenance becomes particularly important in this coastal location to prevent performance degradation from environmental factors. With proper installation techniques and ongoing care, Maresias can provide solid solar energy returns throughout the year, despite the seasonal variations and coastal challenges.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

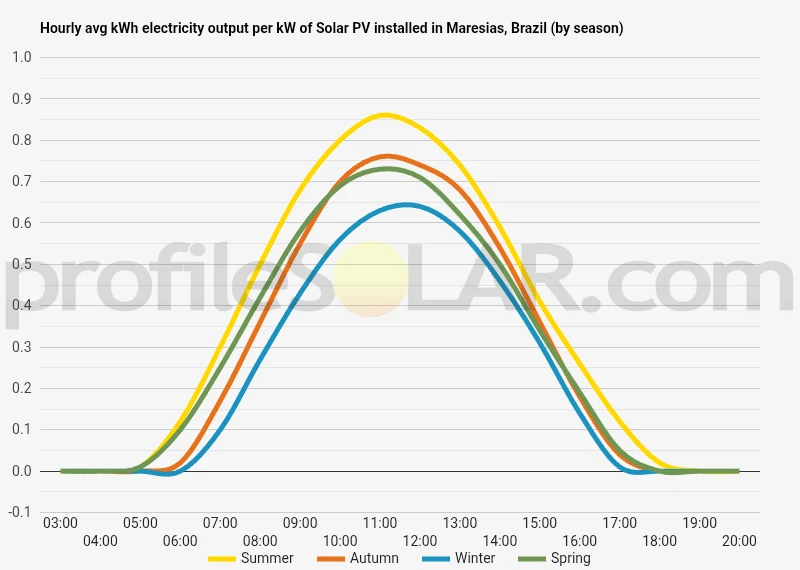

Solar output per kW of installed solar PV by season in Maresias

Seasonal solar PV output for Latitude: -23.7941, Longitude: -45.5597 (Maresias, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Maresias, Brazil

To maximize your solar PV system's energy output in Maresias, Brazil (Lat/Long -23.7941, -45.5597) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Maresias, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Maresias, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Maresias, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Maresias, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Maresias, Brazil

Topography of Maresias

Maresias sits along Brazil's southeastern coastline in São Paulo state, nestled between the Atlantic Ocean and the steep, forested slopes of the Serra do Mar mountain range. This popular beach town occupies a narrow coastal plain that extends only a few kilometers inland before rising dramatically into densely vegetated hills and mountains. The immediate area features a classic tropical coastal landscape with sandy beaches giving way to rolling terrain that quickly becomes mountainous as it moves away from the shore.

The surrounding region is characterized by the remnants of Brazil's Atlantic Forest, known locally as Mata Atlântica, which covers much of the higher elevation areas. These forested hills create a natural backdrop to the coastal settlements and contribute to the area's scenic beauty. The topography becomes increasingly rugged moving inland, with steep valleys, ridgelines, and peaks that can reach several hundred meters in elevation within relatively short distances from the coast.

Small rivers and streams flow down from the mountainous interior toward the ocean, creating modest valleys and drainage patterns throughout the landscape. The coastal plain itself remains relatively flat near the beach areas but begins to undulate and rise as it approaches the foothills of the Serra do Mar.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Maresias would be found on the gentler slopes and plateaus of the coastal plain, particularly in areas that have been cleared for agriculture or pasture. These locations offer the necessary combination of relatively flat terrain, reduced forest cover, and reasonable accessibility for construction and maintenance activities.

Areas slightly inland from the immediate coastal zone present the best opportunities, where the land begins to rise but has not yet become too steep or heavily forested. These locations would provide adequate space for solar arrays while avoiding the most environmentally sensitive coastal dune systems and remaining Atlantic Forest fragments. The rolling hills at moderate elevations could accommodate solar installations on south-facing slopes, which would be ideal for capturing solar radiation throughout the day.

Former agricultural lands or areas currently used for cattle grazing represent particularly attractive options, as they already have reduced vegetation and established access routes. These cleared areas often feature gentler gradients that would minimize the need for extensive site preparation and grading. The slightly elevated positions of these inland areas also provide natural drainage advantages and can help avoid potential flooding issues that might affect lower-lying coastal areas.

Areas closer to existing electrical infrastructure and transportation networks would be preferable for large-scale development, as they would reduce the costs and environmental impact associated with new transmission lines and access roads. The region's existing highway connections and proximity to São Paulo's electrical grid infrastructure make certain inland locations particularly well-suited for utility-scale solar development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
