Martins Soares, Minas Gerais, Brazil presents a highly favorable location for year-round solar PV energy generation. Located in the tropics at coordinates -20.2564, -41.8384, this region benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Year-Round Solar Performance

The solar energy output at Martins Soares demonstrates strong production capabilities across all seasons. Summer delivers the highest output at 6.12 kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows as the second-best season with 5.13 kWh/day per kW, while autumn provides solid performance at 5.50 kWh/day per kW. Winter represents the lowest production period at 4.56 kWh/day per kW, though this still constitutes approximately 75% of summer's peak output. This relatively modest seasonal variation makes the location excellent for consistent year-round solar energy production. For optimal performance, solar panels should be installed at a fixed tilt angle of 19 degrees facing north. This angle maximizes total annual energy production by accounting for the sun's path throughout the year and the location's specific latitude.

Environmental and Weather Considerations

Several local factors could potentially impact solar production at this tropical location:

• Seasonal rainfall patterns: The wet season can reduce solar irradiance through increased cloud cover and atmospheric moisture
• High humidity levels: Tropical humidity can cause moisture buildup on panels, reducing efficiency
• Dust and debris accumulation: Dry periods may lead to dust coating panels, while wet seasons can deposit organic matter
• Tropical storms: Intense weather events can damage installations or reduce production during storm periods

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies prove effective: Regular cleaning schedules become essential, particularly during transitions between wet and dry seasons. Installing panels with adequate spacing allows for proper air circulation, reducing moisture-related issues and helping panels operate at cooler, more efficient temperatures. Robust mounting systems designed for tropical conditions can withstand high winds and intense rainfall. Using high-quality inverters and electrical components rated for humid environments prevents premature equipment failure. Implementing monitoring systems helps identify performance drops quickly, allowing for prompt maintenance. Strategic placement away from areas prone to excessive dust or organic debris accumulation also improves long-term performance. Overall, Martins Soares represents an excellent location for solar PV installation, with strong year-round production potential that can be maximized through proper installation techniques and regular maintenance protocols.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

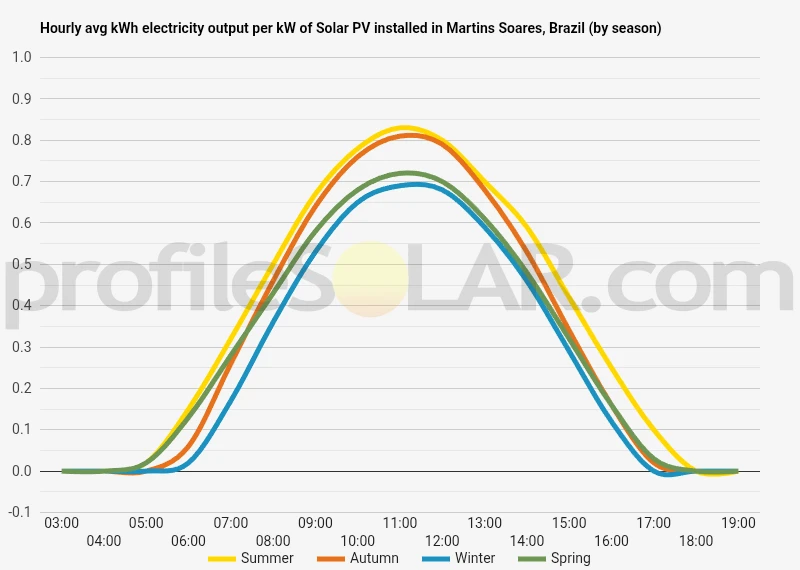

Solar output per kW of installed solar PV by season in Martins Soares

Seasonal solar PV output for Latitude: -20.2564, Longitude: -41.8384 (Martins Soares, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Martins Soares, Brazil

To maximize your solar PV system's energy output in Martins Soares, Brazil (Lat/Long -20.2564, -41.8384) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Martins Soares, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Martins Soares, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	26° North in Autumn	36° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Martins Soares, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Martins Soares, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Martins Soares, Brazil

Topographical Features of the Martins Soares Region

The area around Martins Soares in Brazil sits within the southeastern highlands of Minas Gerais state, characterized by rolling hills and moderate elevation changes typical of the Brazilian Shield geological formation. This region forms part of the Atlantic Plateau, where ancient crystalline rocks have been weathered over millions of years to create a landscape of gentle slopes and rounded hilltops interspersed with river valleys. The terrain exhibits a series of undulating hills with elevations generally ranging from 200 to 600 meters above sea level. These hills are not steep or mountainous but rather present as gradual inclines that create natural drainage patterns toward local waterways. The topography has been shaped significantly by erosional processes, resulting in broad, open valleys separated by low ridges that run in various directions across the landscape.

Geological Foundation and Soil Characteristics

The underlying geology consists primarily of Precambrian metamorphic and igneous rocks, including gneiss and granite formations that provide a stable foundation. Over these ancient rocks, lateritic soils have developed, which are typically well-drained and relatively stable. The weathering of the crystalline basement has created areas of decomposed granite and clay-rich soils that generally provide good structural support for infrastructure development. Stream networks have carved shallow valleys throughout the region, creating a dendritic drainage pattern that flows generally toward the Atlantic coast. These waterways have created fertile alluvial deposits in the valley bottoms, while the higher elevations tend to have thinner, more weathered soils.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader hilltops and gentle slopes that face northward, taking advantage of the southern hemisphere's solar orientation. These elevated areas typically offer several advantages including consistent air circulation for cooling equipment, reduced risk of flooding, and minimal shading from surrounding terrain features. The rolling nature of the landscape provides numerous sites with gradual slopes of less than 10 degrees, which are ideal for solar panel mounting systems. These areas require minimal grading and earthwork, reducing installation costs while maintaining good drainage. The higher elevations also tend to have fewer trees and less dense vegetation, making land preparation more straightforward. Valley floors, while often flatter, may be less suitable due to potential for seasonal water accumulation, higher humidity levels, and morning fog formation that could affect panel efficiency. The elevated positions on ridge tops and south-facing slopes would provide the most consistent exposure to direct sunlight throughout the day. Areas with existing agricultural use on the gentler slopes could potentially be converted to solar farms, as the terrain modifications required would be minimal. The stable geological foundation and generally good drainage characteristics of the higher elevations make these locations particularly attractive for large-scale installations that require long-term structural integrity.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
