Martins, Rio Grande do Norte, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Situated in the tropics at coordinates -6.0928, -37.9287, this location benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output data for Martins demonstrates strong and reliable performance across all seasons:

• Spring: 7.55 kWh/day per kW installed (highest production)
• Summer: 6.67 kWh/day per kW installed
• Autumn: 6.53 kWh/day per kW installed
• Winter: 6.14 kWh/day per kW installed (lowest production)

Spring emerges as the most productive season for solar generation, delivering approximately 23% more energy than the winter months. Even during the least productive season, winter still provides substantial solar output, making this location highly suitable for consistent year-round energy production.

Optimal Panel Configuration

For fixed panel installations at Martins, Rio Grande do Norte, the ideal tilt angle to maximize total year-round solar production is 6 degrees North. This relatively shallow angle reflects the location's proximity to the equator and helps optimize solar collection throughout the year by accounting for seasonal variations in the sun's path and the area's solar irradiance patterns.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency at this tropical location, though most can be effectively managed through proper installation practices. The wet season presents the most significant challenge, as increased cloud cover and frequent rainfall can temporarily reduce solar output. Heavy rains, while beneficial for natural panel cleaning, may also bring extended periods of overcast skies that diminish energy generation during peak wet season months. High humidity levels, common in tropical climates, can create conditions conducive to dust and organic matter accumulation on panel surfaces. Additionally, the combination of heat and moisture may accelerate wear on electrical components if not properly protected.

Preventative Installation Measures

Several installation strategies can help maximize energy production despite these environmental challenges. Proper panel spacing and mounting systems that promote air circulation help prevent overheating and reduce moisture-related issues. Installing panels with adequate drainage ensures rainwater flows off efficiently without pooling. Using marine-grade or tropically-rated electrical components, including corrosion-resistant wiring and weatherproof inverters, helps combat the effects of high humidity and occasional salt air. Regular maintenance schedules that include panel cleaning during dry periods can maintain optimal surface conditions for light absorption. Implementing monitoring systems allows for quick identification of performance issues, while designing installations with slight overproduction capacity can help offset temporary reductions during particularly cloudy wet season periods. Overall, Martins offers excellent conditions for solar energy generation with manageable environmental considerations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

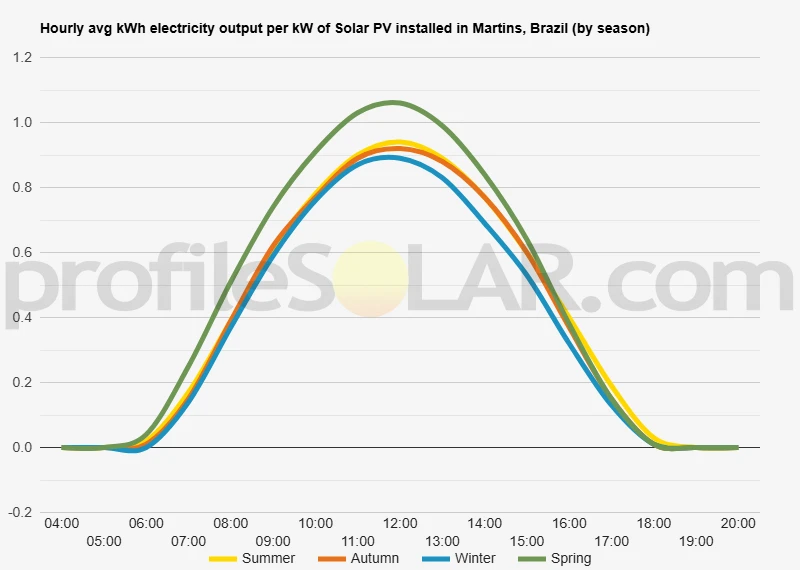

Solar output per kW of installed solar PV by season in Martins

Seasonal solar PV output for Latitude: -6.0928, Longitude: -37.9287 (Martins, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° North in Martins, Brazil

To maximize your solar PV system's energy output in Martins, Brazil (Lat/Long -6.0928, -37.9287) throughout the year, you should tilt your panels at an angle of 6° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Martins, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Martins, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
10° South in Summer	12° North in Autumn	22° North in Winter	0° in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Martins, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Martins, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Martins, Brazil

Topographical Features of the Martins Region

Martins is located in the interior of Rio Grande do Norte state in northeastern Brazil, positioned within the semi-arid region known as the Caatinga. The topography around Martins is characterized by gently rolling hills and low-lying plains typical of the Brazilian Northeast's interior landscape. The terrain consists primarily of crystalline basement rock formations that create a moderately undulating surface with elevations generally ranging from 200 to 400 meters above sea level.

The landscape features scattered inselbergs - isolated rocky hills that rise abruptly from the surrounding plains - which are common geological formations throughout this part of Brazil. These granite and gneiss outcrops create distinctive landmarks but occupy relatively small areas compared to the broader expanses of gentler terrain. The region's topography has been shaped by millions of years of weathering in a semi-arid climate, resulting in extensive areas of relatively flat to gently sloping land interspersed with seasonal drainage channels.

Drainage Patterns and Land Use

The area around Martins is drained by intermittent streams and seasonal watercourses that flow primarily during the rainy season. These temporary waterways have carved shallow valleys and depressions into the landscape, but much of the terrain between these drainage features remains relatively level. The natural vegetation consists of Caatinga scrubland - drought-resistant trees, shrubs, and cacti adapted to the semi-arid climate.

Agricultural activities in the region focus on drought-tolerant crops and livestock grazing, with much of the land remaining in its natural state or used for extensive cattle ranching. The combination of sparse population density and limited intensive agriculture means that large tracts of land remain available for potential alternative uses.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Martins would be the extensive flat to gently sloping plains that dominate the regional landscape. These areas offer several advantages for solar development, including minimal grading requirements, reduced construction costs, and optimal positioning for solar panel arrays. The relatively stable geological conditions provided by the crystalline basement rock ensure solid foundations for large installations.

Areas with slopes of less than five percent would be particularly well-suited for solar farms, as they require minimal site preparation while still providing adequate drainage. The broad valleys between the scattered hills and inselbergs offer some of the best potential sites, combining favorable topography with good accessibility for construction and maintenance equipment.

The seasonal drainage channels should be avoided for solar installations, but these represent a small fraction of the total available land. The areas between these watercourses, particularly the broad interfluves and gentle ridge tops, provide excellent opportunities for solar development. The sparse vegetation and limited competing land uses in much of the region mean that large contiguous areas could potentially be developed without significant environmental or social conflicts.

Transportation access would favor sites closer to existing roads and the town of Martins itself, though the generally favorable topography throughout the region means that access roads could be constructed relatively easily to more remote but topographically superior locations. The stable, well-drained soils typical of the crystalline terrain provide good conditions for both temporary construction activities and permanent infrastructure installation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
