Massaranduba, Santa Catarina, Brazil presents a moderately favorable location for year-round solar PV energy generation, though with notable seasonal variations that potential solar installers should consider carefully.

Seasonal Solar Performance

The solar energy output at this Southern Sub Tropics location shows significant seasonal fluctuation. Summer delivers the strongest performance at 6.11 kWh per day per kW of installed capacity, making it the ideal time for solar generation. Spring follows as the second-best season with 4.49 kWh per day per kW, while autumn produces 4.40 kWh per day per kW. Winter presents the most challenging period for solar generation, dropping to just 3.26 kWh per day per kW of installed capacity. This represents nearly a 47% reduction compared to summer output, which is quite substantial and should factor into any solar installation planning.

Optimal Panel Configuration

For maximum year-round solar production at Massaranduba, Santa Catarina, fixed solar panels should be tilted at 24 degrees facing North. This angle has been calculated to optimize total annual energy output by accounting for the sun's path throughout the year and the location's specific latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors could potentially impact solar energy generation at this location:

• Humidity and moisture: The subtropical climate typically brings high humidity levels, which can reduce solar panel efficiency and create more frequent condensation on panel surfaces
• Seasonal rainfall: The region likely experiences distinct wet and dry seasons, with heavy rainfall during certain months potentially reducing solar irradiance
• Tropical storms: The subtropical location may be subject to severe weather events that could damage installations or create extended periods of cloud cover

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help: Proper ventilation spacing should be maintained behind solar panels to allow air circulation and reduce heat buildup caused by high humidity. Installing panels with adequate clearance from the roof surface helps prevent moisture accumulation and improves cooling efficiency. Regular cleaning schedules become particularly important in humid climates where dust, pollen, and organic matter can accumulate more readily on panel surfaces. Anti-reflective coatings designed for humid environments can also help maintain panel efficiency. Robust mounting systems designed to withstand high winds and potential storm conditions should be prioritized. Additionally, installing micro-inverters or power optimizers can help maintain system performance even when individual panels are partially shaded by passing clouds during stormy weather. Proper drainage around the installation area prevents water pooling that could create humidity problems or foundation issues for ground-mounted systems.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

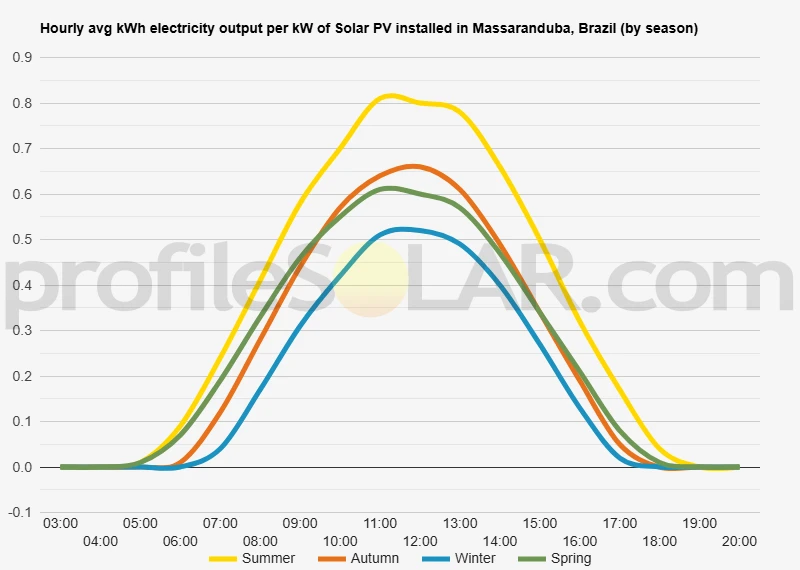

Solar output per kW of installed solar PV by season in Massaranduba

Seasonal solar PV output for Latitude: -26.6206, Longitude: -48.9777 (Massaranduba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 24° North in Massaranduba, Brazil

To maximize your solar PV system's energy output in Massaranduba, Brazil (Lat/Long -26.6206, -48.9777) throughout the year, you should tilt your panels at an angle of 24° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Massaranduba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Massaranduba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 24° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
11° North in Summer	32° North in Autumn	42° North in Winter	19° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Massaranduba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Massaranduba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Massaranduba, Brazil

Topographical Features of Massaranduba

Massaranduba sits within the coastal mountain region of Santa Catarina state in southern Brazil, positioned in the foothills of the Serra do Mar mountain range. The terrain around this municipality is characterized by rolling hills and moderate elevation changes, with the landscape transitioning from the Atlantic coastal plain to the more mountainous interior regions. The area features a mix of gentle slopes and steeper inclines, with elevations ranging from approximately 100 to 600 meters above sea level. The region displays typical Atlantic Forest topography, where valleys carved by small rivers and streams create a undulating landscape. These waterways flow generally eastward toward the Atlantic Ocean, creating natural drainage patterns that have shaped the local terrain over millennia. The soil composition consists primarily of well-drained sedimentary and metamorphic formations, with some areas showing evidence of past volcanic activity from the broader geological history of southern Brazil.

Climate and Environmental Conditions

The subtropical climate of the Massaranduba region brings distinct wet and dry seasons, with the topography influencing local weather patterns. The mountainous terrain to the west creates orographic effects, where moisture-laden air masses from the Atlantic are forced upward, resulting in increased precipitation on windward slopes. This creates microclimatic variations across the area, with some locations receiving more rainfall than others depending on their position relative to the prevailing wind patterns. The elevation changes throughout the region also contribute to temperature variations, with higher elevations experiencing cooler conditions than the lower-lying areas. The presence of the Atlantic Forest ecosystem in many areas provides natural wind breaks and influences local humidity levels, though much of the original forest cover has been converted to agricultural and urban uses.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations around Massaranduba are found on the gentler slopes and plateau areas at moderate elevations, typically between 200 and 400 meters above sea level. These areas offer the best combination of relatively flat terrain suitable for panel installation while avoiding the shadowing effects that can occur in deeper valleys or on steep hillsides. The southeastern and southwestern facing slopes present particular advantages for solar development, as they receive optimal sun exposure throughout the day while being less affected by morning fog and mist that can occur in lower-lying areas near water courses. Areas that have been previously cleared for agriculture or pasture are especially well-suited, as they already lack the tree cover that might create shading issues and have established access routes for construction and maintenance. The ridge areas and broader hilltops scattered throughout the region offer excellent potential for solar farms, as these elevated positions typically experience better air circulation, which helps maintain panel efficiency by preventing excessive heat buildup. These locations also tend to have fewer issues with ground-level moisture and fog that can reduce solar irradiance in valley locations.

Infrastructure and Access Considerations

The proximity to existing electrical infrastructure makes certain areas around Massaranduba more attractive for solar development. The region benefits from its location along major transportation corridors connecting the coast with the interior, providing good access for construction equipment and ongoing maintenance operations. Areas closer to existing transmission lines and substations would require less investment in electrical infrastructure to connect solar installations to the grid. The relatively stable geological conditions throughout most of the region provide good foundations for solar mounting systems, though areas with steeper slopes or unstable soils should be avoided. The moderate elevation changes mean that most suitable sites can be accessed without extreme engineering challenges, making development more economically viable than in areas with more dramatic topographical features.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
