Matias Barbosa, Minas Gerais, Brazil presents a good to very good location for year-round solar PV energy generation. Located in the tropics at coordinates -21.8744, -43.3081, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods than dramatic changes in solar availability.

Seasonal Solar Performance

The solar energy output at Matias Barbosa shows strong seasonal consistency. Summer delivers the highest production at 6.08 kWh per day per kW of installed solar capacity, making it the ideal time for maximum energy generation. Spring and autumn provide nearly equivalent output at 5.18 kWh/day and 5.25 kWh/day respectively, demonstrating excellent shoulder-season performance. Winter represents the lowest production period at 4.56 kWh per day per kW, but this still constitutes a respectable output level that maintains system viability year-round. The relatively small difference between peak summer and minimum winter production indicates this location's tropical advantage for consistent solar generation.

Optimal Panel Configuration

For fixed panel installations at Matias Barbosa, Minas Gerais, the ideal tilt angle to maximize total year-round solar production is 21 degrees North. This angle accounts for the location's latitude and optimizes capture of solar irradiance across all seasons by balancing the sun's varying elevation angles throughout the year.

Environmental Factors and Mitigation Strategies

Several environmental factors in Matias Barbosa could potentially impact solar production efficiency:

• Tropical rainfall and humidity - The wet season can reduce solar output through cloud cover and atmospheric moisture
• Dust and particulate accumulation - Dry periods may lead to dust buildup on panels, reducing light transmission
• High ambient temperatures - Excessive heat can decrease panel efficiency despite abundant sunlight
• Vegetation growth - Rapid tropical plant growth may create shading issues if not properly managed

Recommended Preventative Measures

To maximize energy production despite these challenges, several installation strategies prove effective. Regular cleaning schedules during dry periods help maintain panel efficiency by removing dust and debris. Installing panels with adequate ventilation spacing allows air circulation to reduce heat buildup and maintain optimal operating temperatures. Proper site selection and vegetation management prevent shading issues by maintaining clear solar access paths and regularly trimming nearby plants. Using high-quality mounting systems designed for tropical conditions ensures panels withstand humidity and occasional severe weather while maintaining optimal positioning. Anti-reflective coatings and self-cleaning panel surfaces can reduce maintenance requirements while improving light capture efficiency. Additionally, incorporating monitoring systems allows for quick identification of performance issues, enabling prompt maintenance responses to maintain peak output levels throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

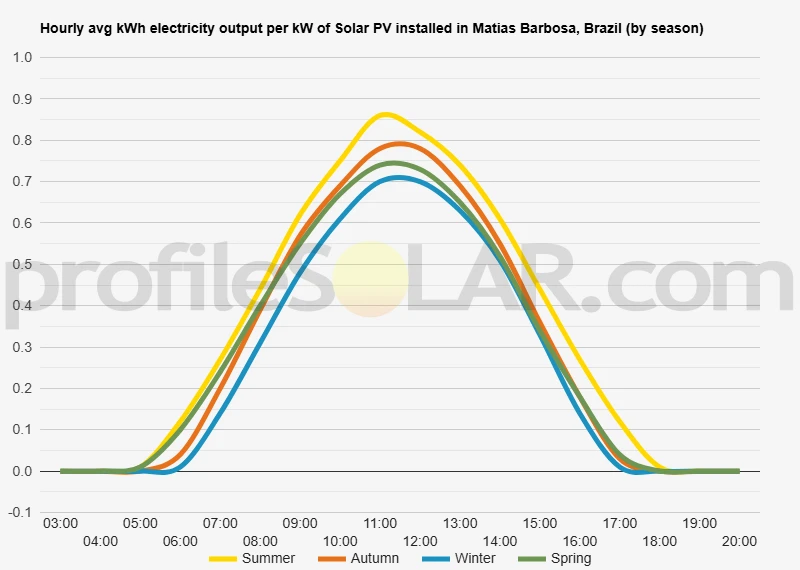

Solar output per kW of installed solar PV by season in Matias Barbosa

Seasonal solar PV output for Latitude: -21.8744, Longitude: -43.3081 (Matias Barbosa, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Matias Barbosa, Brazil

To maximize your solar PV system's energy output in Matias Barbosa, Brazil (Lat/Long -21.8744, -43.3081) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Matias Barbosa, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Matias Barbosa, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Matias Barbosa, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Matias Barbosa, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Matias Barbosa, Brazil

Topographical Features of Matias Barbosa

Matias Barbosa sits in the southeastern region of Minas Gerais state, positioned within the complex mountainous terrain of the Brazilian Highlands. The municipality occupies a transitional zone where the steep escarpments of the Serra da Mantiqueira mountain range begin to give way to gentler rolling hills toward the north and west. The landscape is characterized by dramatic elevation changes, with the terrain rising sharply from approximately 400 meters above sea level in the valley floors to over 1,200 meters on the surrounding ridgelines. The topography immediately around Matias Barbosa features a mix of steep-sided valleys carved by tributaries of the Paraíba do Sul River system, interspersed with narrow ridges and occasional plateau areas. The geology consists primarily of ancient crystalline rocks that have been heavily weathered and eroded over millions of years, creating the characteristic undulating landscape of deeply incised valleys separated by rounded hilltops and ridge systems. Moving northward and westward from the town center, the terrain gradually becomes less rugged, transitioning into the broader upland areas that characterize much of central Minas Gerais. These areas feature more extensive flat to gently rolling surfaces, though still punctuated by isolated hills and low mountain ranges. The drainage patterns flow generally southward toward the Paraíba do Sul valley, creating a series of parallel ridges and valleys aligned in a northeast-southwest direction.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations lie in the plateau areas and broader valley floors found 15 to 30 kilometers northwest and north of Matias Barbosa. These areas offer the essential combination of relatively flat terrain, adequate space for extensive solar arrays, and reasonable accessibility for construction and maintenance activities. The elevated plateaus at moderate elevations between 600 and 900 meters provide excellent exposure to solar radiation while avoiding the extreme slopes that characterize the immediate vicinity of the town. The rolling uplands extending toward the municipalities of Lima Duarte and Bom Jardim de Minas present particularly favorable conditions. These areas feature gentler gradients typically ranging from 0 to 8 percent, which are well within acceptable limits for solar panel installation. The broader valley systems in this direction also offer substantial contiguous areas of relatively level ground that could accommodate utility-scale solar facilities without requiring extensive grading or terracing. Areas to the east and southeast, while potentially receiving good solar exposure, present significant challenges due to the steep terrain associated with the Serra da Mantiqueira foothills. The narrow valleys and sharp ridges in these directions would require extensive site preparation and would likely prove economically unfavorable for large installations. Similarly, the immediate vicinity of Matias Barbosa itself, while accessible, offers limited areas of sufficient size and appropriate topography for major solar developments. The transportation infrastructure accessibility also favors the northern and western areas, where existing road networks provide better connections to regional transmission systems and urban centers. These locations would facilitate both the construction phase logistics and the long-term operational requirements of large-scale solar installations while taking advantage of the region's favorable topographical characteristics for solar energy generation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
