Matozinhos, Minas Gerais, Brazil offers a promising location for solar energy generation, with relatively consistent solar production throughout the year. Located in the tropics at coordinates -19.518, -44.0516, this site demonstrates good potential for photovoltaic (PV) energy systems with seasonal variations that are less extreme than those in temperate regions.

Seasonal Solar Production

The solar energy production in Matozinhos shows moderate seasonal fluctuation. Summer months yield the highest output at 6.46 kWh per day for each kilowatt of installed capacity. Spring follows closely with 6.20 kWh/day, while autumn produces 5.97 kWh/day. Winter shows the lowest production at 5.38 kWh/day per kW installed, but this reduction is relatively modest compared to non-tropical locations.

This pattern creates favorable conditions for year-round solar energy generation, with only about a 17% difference between the highest and lowest producing seasons. The relatively small variation makes Matozinhos an attractive location for solar PV installations that need consistent output throughout the year.

Optimal Panel Installation

For fixed solar panel installations in Matozinhos, Minas Gerais, the ideal tilt angle is 19 degrees facing North. This specific angle maximizes year-round energy production by optimizing the panels' exposure to the sun's path across the sky throughout the year. Proper installation at this angle can significantly enhance the overall efficiency of a solar system at this location.

Environmental and Weather Considerations

Several environmental factors could potentially impact solar production in Matozinhos:

• Seasonal rainfall patterns may reduce solar output during the wet season (typically October to March), when cloud cover is more prevalent
• Dust and pollen accumulation can be significant in this region, potentially reducing panel efficiency if not addressed
• Occasional hail storms, though rare, could pose a risk to panel integrity

To mitigate these challenges, several preventative measures can be implemented. Regular cleaning schedules should be established to remove dust and debris, especially during dry periods when accumulation is highest. Installing panels with high-quality tempered glass can provide protection against potential hail damage. Additionally, implementing a slight increase in the tilt angle (beyond the optimal 19 degrees) may help with natural cleaning during rainfall events.

Overall, Matozinhos presents a favorable location for solar PV installations with its consistent year-round production and relatively minor seasonal variations, making it well-suited for reliable renewable energy generation when proper installation practices are followed.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

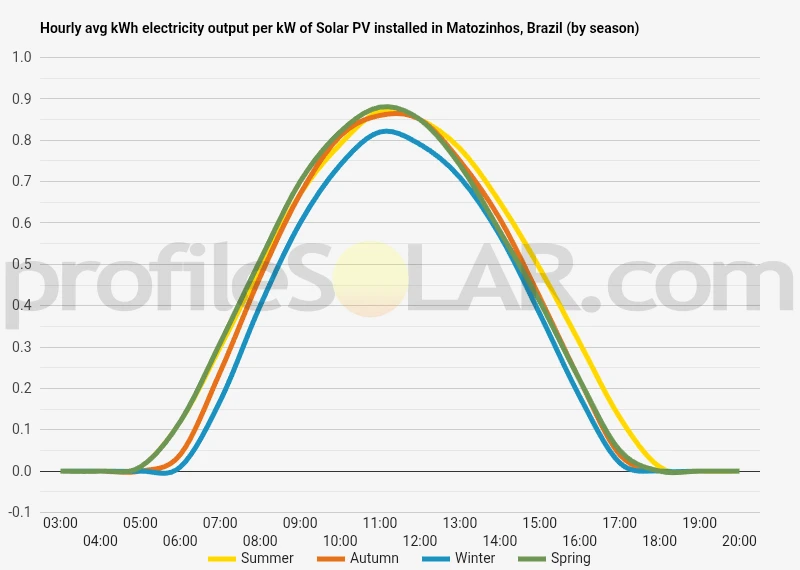

Solar output per kW of installed solar PV by season in Matozinhos

Seasonal solar PV output for Latitude: -19.518, Longitude: -44.0516 (Matozinhos, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 19° North in Matozinhos, Brazil

To maximize your solar PV system's energy output in Matozinhos, Brazil (Lat/Long -19.518, -44.0516) throughout the year, you should tilt your panels at an angle of 19° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Matozinhos, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Matozinhos, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	25° North in Autumn	35° North in Winter	14° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Matozinhos, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Matozinhos, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Matozinhos, Brazil

The topography around Matozinhos, Brazil presents a diverse landscape characterized by rolling hills, limestone formations, and varied elevation patterns. Located in the state of Minas Gerais, approximately 45 kilometers north of Belo Horizonte, this region sits within the Brazilian highlands, showing a transition between the more mountainous areas to the east and the flatter terrain stretching westward.

Landscape Features

Matozinhos is situated in what geologists call the "Bambuí Group," a geological formation known for its karst topography. This distinctive landscape features numerous caves, sinkholes, and underground drainage systems formed by the dissolution of soluble rocks like limestone. The area's elevation typically ranges between 700-850 meters above sea level, creating a moderately undulating terrain rather than sharp mountainous features. The region exhibits a mixture of open fields, cerrado (Brazilian savanna) vegetation, and patches of forest. The natural vegetation has been significantly modified by human activities, primarily agriculture and cattle ranching, which have created a mosaic of land uses throughout the landscape.

Hydrography

The area around Matozinhos falls within the São Francisco River basin, with several smaller tributaries flowing through the region. The karst nature of the terrain means that some water flow occurs underground through cave systems and natural conduits in the limestone. This creates a complex hydrological system where surface water can quickly disappear into underground channels.

Solar PV Potential Areas

For large-scale solar photovoltaic installations, several nearby areas show promising characteristics: The gently sloping plateaus to the west of Matozinhos offer ideal conditions for solar farms. These areas feature relatively flat terrain with minimal shading from topographical features, allowing for efficient panel placement and maximum solar exposure throughout the day. The gradual incline of many of these plateaus can be advantageous for solar collection when panels are oriented properly. The cleared agricultural lands north and northwest of Matozinhos present excellent opportunities for solar development. These areas typically have good road access, minimal forest cover that would require clearing, and appropriate drainage patterns to prevent flooding issues for infrastructure. The relatively consistent elevation in these zones simplifies construction and maintenance operations. Areas along the corridor between Matozinhos and Pedro Leopoldo (to the south) also demonstrate favorable conditions, with open expanses that receive consistent solar radiation throughout the year. The existing transportation infrastructure in this corridor provides logistical advantages for construction and maintenance of large-scale installations.

Topographical Challenges

Despite these promising areas, certain topographical features present challenges for solar development. The limestone outcroppings and karst features scattered throughout the region can complicate foundation work and increase installation costs in specific locations. Additionally, some of the more heavily dissected terrain with frequent changes in elevation would require significant grading, potentially increasing environmental impact and project costs. The areas with denser forest cover, particularly in the more rugged eastern sections, would require substantial clearing and present greater environmental concerns. These zones generally represent less optimal locations for large-scale solar developments compared to the already modified agricultural landscapes and natural plateaus. The topographical diversity of the Matozinhos region ultimately offers numerous viable options for solar PV development, with the western and northern plateaus representing the most promising balance of favorable terrain, existing land use, and accessibility.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
