Medina, Minas Gerais, Brazil presents an excellent location for year-round solar energy generation. Located in the tropics at coordinates -16.3015, -41.5382, this region benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Performance

The solar energy output at Medina demonstrates strong and reliable performance across all seasons. Spring emerges as the peak production period, generating 5.99 kWh per day per kW of installed solar capacity. Summer follows closely with 5.85 kWh/day, while autumn maintains solid output at 5.61 kWh/day. Even during the lowest-producing season of winter, the location still generates a respectable 4.67 kWh/day per kW. This seasonal variation of only 1.32 kWh between the best and worst performing seasons indicates remarkable consistency compared to many other global locations. The relatively minor dip in winter production makes this location highly suitable for year-round solar installations.

Optimal Installation Configuration

For fixed panel installations at Medina, Minas Gerais, the ideal tilt angle to maximize total year-round solar production is 15 degrees North. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles according to daily photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar production efficiency at this Brazilian location:

• Seasonal rainfall and humidity: The tropical climate brings distinct wet seasons that can reduce solar irradiance through cloud cover and atmospheric moisture
• Dust accumulation: Dry seasons may lead to dust buildup on solar panels, reducing their efficiency
• High temperatures: Intense tropical heat can decrease photovoltaic cell efficiency
• Vegetation growth: The favorable growing conditions may cause nearby vegetation to create shading issues over time

Preventative Measures for Optimal Performance

To maximize energy production despite these challenges, several installation strategies should be implemented: Regular cleaning schedules become essential, particularly during dry periods when dust accumulation peaks. Installing panels with adequate ventilation spacing helps manage heat buildup and maintains optimal operating temperatures. Proper site selection that accounts for future vegetation growth prevents long-term shading problems. Additionally, using high-quality mounting systems that can withstand tropical weather conditions, including heavy rainfall and potential wind events, ensures long-term reliability. Implementing monitoring systems allows for quick identification of performance issues related to weather or environmental factors. Despite these considerations, Medina's consistent solar output throughout the year makes it an highly favorable location for solar energy investment, with the seasonal variations being relatively minor compared to locations at higher latitudes.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

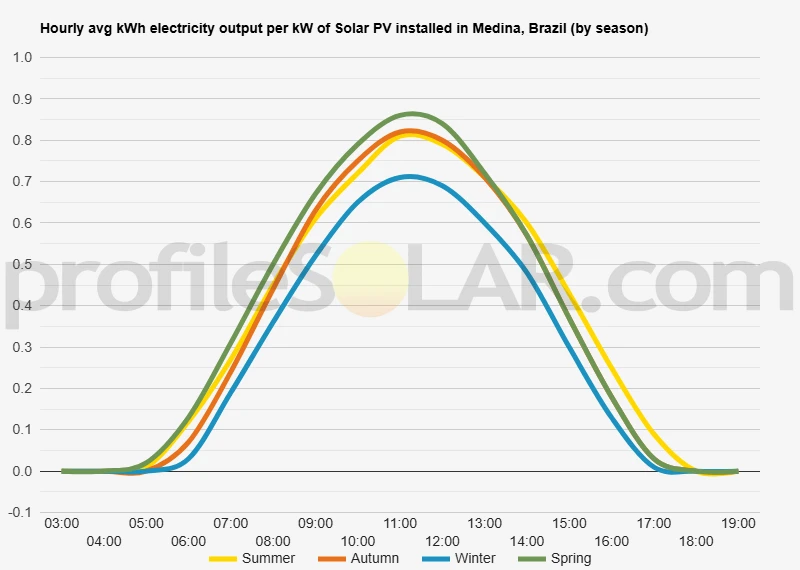

Solar output per kW of installed solar PV by season in Medina

Seasonal solar PV output for Latitude: -16.3015, Longitude: -41.5382 (Medina, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 15° North in Medina, Brazil

To maximize your solar PV system's energy output in Medina, Brazil (Lat/Long -16.3015, -41.5382) throughout the year, you should tilt your panels at an angle of 15° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Medina, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Medina, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 15° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° North in Summer	22° North in Autumn	32° North in Winter	11° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Medina, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Medina, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Medina, Brazil

Topographical Features Around Medina, Brazil

Medina sits within the northern region of Minas Gerais state, positioned in Brazil's semi-arid interior where the landscape is characterized by gently rolling hills and expansive plateaus. The terrain around this municipality features moderate elevation changes, with the area sitting at approximately 800 meters above sea level on the Brazilian Plateau. The topography consists primarily of undulating terrain with scattered low hills and broad valleys, creating a landscape that transitions between the Cerrado savanna and Caatinga dry forest biomes.

The surrounding region displays typical characteristics of Brazil's interior highlands, with weathered rock formations and ancient geological structures that have been shaped by millions of years of erosion. Rolling grasslands dominate much of the landscape, interspersed with patches of native vegetation and agricultural areas. The terrain generally slopes gradually toward river valleys, with the Jequitinhonha River system providing the primary drainage for the region.

Rock outcroppings and small escarpments are common features throughout the area, though they rarely present significant obstacles to development. The soil composition varies from sandy to clay-rich depending on location, with much of the surface geology consisting of crystalline basement rocks covered by sedimentary deposits.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations around Medina would be the broad, relatively flat plateau areas that extend in several directions from the municipality. These elevated plains offer excellent potential due to their gentle gradients and minimal topographical obstacles that could create shading issues or complicate construction activities.

The expansive grassland areas to the north and northeast of Medina present particularly attractive opportunities for solar development. These regions feature large contiguous areas of relatively level terrain with minimal vegetation that would require clearing. The consistent elevation and open landscape provide ideal conditions for maximizing solar panel efficiency while minimizing installation costs.

Areas along the broader valley floors also show promise, particularly where the terrain opens up into wide, flat expanses. These locations typically offer good accessibility for construction equipment and maintenance vehicles, while the stable geological conditions provide solid foundations for large-scale installations.

The southwestern areas around Medina feature some of the most promising topography for solar development, where the landscape consists of gentle slopes and extensive flat areas. These regions benefit from minimal shading from surrounding hills and offer the space necessary for substantial solar farms. The relatively sparse population density in these areas also reduces potential conflicts with existing land uses.

When considering sites for major solar installations, the areas with southern and southeastern exposures on gentle slopes would be particularly advantageous, as they can optimize panel positioning while maintaining manageable construction conditions. The stable, well-drained soils found on higher elevations around the municipality also provide excellent foundations for solar infrastructure while reducing concerns about flooding or waterlogging during the rainy season.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
