Mendes, Rio de Janeiro, Brazil presents a moderately good location for year-round solar energy generation, though it's not among the most ideal tropical locations for solar PV installations.

Solar Energy Production Potential

The solar energy output at this location varies significantly throughout the year. Summer provides the strongest performance with 6.36 kWh per day for each kilowatt of installed solar capacity. Spring offers decent production at 4.98 kWh/day, while autumn drops to 5.19 kWh/day. Winter shows the lowest output at 4.23 kWh/day per kilowatt installed. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 21 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation patterns throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several local factors could significantly impact solar energy production in Mendes:

• High humidity and frequent rainfall: The tropical climate brings substantial moisture that can reduce panel efficiency and create persistent cloud cover during wet seasons
• Dust and debris accumulation: The combination of dry periods followed by heavy rains can leave residue on panels, blocking sunlight
• Vegetation growth: The lush tropical environment means rapid plant growth that could shade panels if not properly managed

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be considered:

• Proper drainage systems: Install panels with adequate spacing and drainage to prevent water pooling and ensure quick drying
• Regular cleaning schedules: Implement monthly panel cleaning routines, especially during transition periods between wet and dry seasons
• Strategic positioning: Place panels away from large trees and ensure surrounding vegetation is regularly trimmed to prevent shading
• Quality mounting systems: Use corrosion-resistant materials designed for high-humidity environments to ensure long-term stability

While Mendes offers consistent tropical sunlight, the seasonal variation in output and local environmental factors require careful planning and maintenance to achieve optimal solar energy production throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

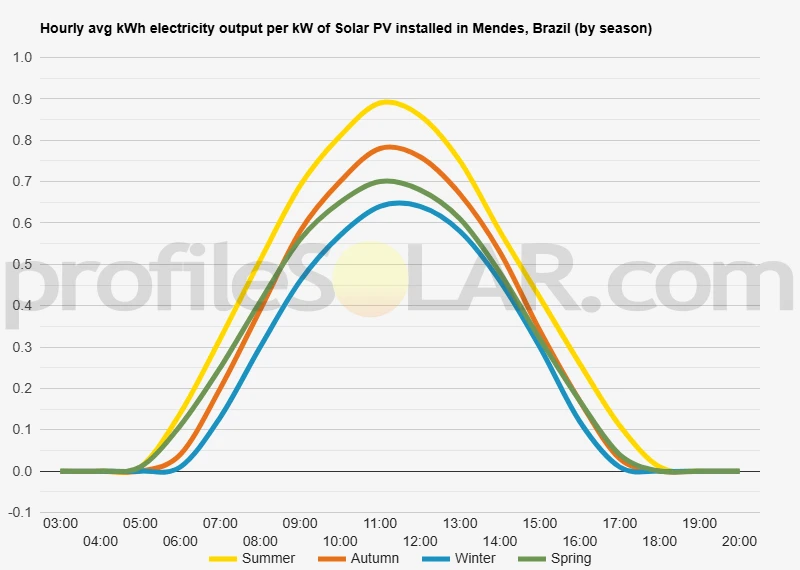

Solar output per kW of installed solar PV by season in Mendes

Seasonal solar PV output for Latitude: -22.5403, Longitude: -43.7488 (Mendes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Mendes, Brazil

To maximize your solar PV system's energy output in Mendes, Brazil (Lat/Long -22.5403, -43.7488) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mendes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mendes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	28° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mendes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mendes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mendes, Brazil

Topography Around Mendes, Brazil

Mendes is situated in the state of Rio de Janeiro, nestled within the Paraíba do Sul River valley region. The area features a predominantly hilly and mountainous terrain that is characteristic of the Serra do Mar mountain range system. Rolling hills and gentle slopes dominate the immediate landscape, with elevations typically ranging from 400 to 800 meters above sea level throughout the surrounding region.

The topography consists of a series of undulating ridges and valleys that create a varied landscape of moderate relief. These hills are interspersed with flatter valley floors where agricultural activities and settlements have traditionally been established. The terrain gradually rises toward the southeast, where higher elevations of the coastal mountain ranges become more pronounced.

The region's geology is primarily composed of crystalline rocks from the Brazilian Shield, which has been shaped over millions of years by weathering and erosion processes. This has resulted in rounded hilltops and relatively stable slopes that characterize much of the area. Small streams and tributaries flow through the valleys, eventually draining toward the Paraíba do Sul River system.

Optimal Areas for Large-Scale Solar PV Development

The most suitable locations for large-scale solar photovoltaic installations around Mendes would be the broader valley floors and gently sloping hillsides with southern and southeastern exposures. These areas offer the necessary flat to moderately sloped terrain that minimizes construction costs and maximizes solar panel efficiency through optimal positioning.

The valley areas between the hills provide the most practical sites for utility-scale solar farms, as they offer relatively level ground that reduces the need for extensive grading and earthwork. These locations also tend to have better access to existing transportation infrastructure and electrical transmission lines, which are crucial factors for large-scale renewable energy projects.

Gently sloping hillsides facing north would be particularly advantageous in this southern hemisphere location, as they naturally provide optimal solar panel orientation. Areas with slopes between 5 and 15 degrees are ideal, as they allow for effective water drainage while maintaining construction feasibility and panel stability.

The agricultural lands in the broader valleys could potentially be converted or utilized for dual-purpose agrivoltaic systems, where solar panels are installed above crops or grazing areas. This approach maximizes land use efficiency while maintaining some agricultural productivity in the region.

Areas to avoid for large-scale solar development would include the steeper hillsides and ridge tops, where construction would be more challenging and expensive. Additionally, heavily forested areas and locations prone to flooding near waterways would present environmental and practical obstacles for solar installations.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
