Meruoca, Ceará, Brazil represents an excellent location for year-round solar photovoltaic energy generation. Located in the tropical region at coordinates -3.586, -40.4673, this area benefits from consistent sunlight throughout most of the year, with seasons characterized more by wet and dry periods rather than significant temperature variations.

Solar Energy Production Potential

The solar energy output data for Meruoca shows impressive and consistent performance across all seasons. The location produces 5.61 kWh per day per kW of installed solar capacity during summer, increasing to 5.73 kWh/day in autumn. Winter performance jumps to 6.17 kWh/day, while spring delivers the highest output at 6.82 kWh/day per kW of installed capacity. This seasonal pattern is particularly favorable for solar energy generation, as the higher production during winter and spring months helps balance energy needs throughout the year. The spring season emerges as the ideal time for solar generation at this location, delivering over 20% more energy than the summer months.

Optimal Panel Configuration

For fixed panel installations at Meruoca, Ceará, the ideal tilt angle to maximize total year-round solar production is 4 degrees North. This relatively shallow angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel positioning, and weighting these angles based on solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental and Weather Considerations

Several local factors could potentially impact solar production efficiency in Meruoca and require careful consideration during installation:

• Seasonal rainfall patterns: The tropical wet season can reduce solar irradiance due to increased cloud cover and atmospheric moisture
• High humidity levels: Persistent humidity can lead to moisture accumulation on panels and potential corrosion of electrical components
• Dust and particulate matter: Dry season conditions may result in dust accumulation on solar panels, reducing their efficiency
• Intense UV exposure: Strong tropical sunlight can accelerate degradation of panel materials and mounting systems

Preventative Measures for Optimal Performance

To ensure maximum energy production despite these environmental challenges, several installation strategies should be implemented: Regular cleaning schedules become essential, particularly during dry seasons when dust accumulation is most problematic. Installing panels with adequate spacing allows for proper air circulation, helping to reduce moisture buildup and improve cooling efficiency. Selecting corrosion-resistant mounting hardware and electrical components specifically rated for tropical marine environments will extend system lifespan. Additionally, incorporating drainage systems and ensuring proper panel sealing helps prevent water damage during heavy rainfall periods. Using high-quality panels with robust UV-resistant coatings and backing materials will better withstand the intense tropical sun exposure. Implementing monitoring systems allows for early detection of performance issues, enabling prompt maintenance interventions. Despite these considerations, Meruoca's consistent high solar output throughout the year makes it an exceptionally favorable location for solar PV installations, with proper planning and installation techniques easily addressing the environmental challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

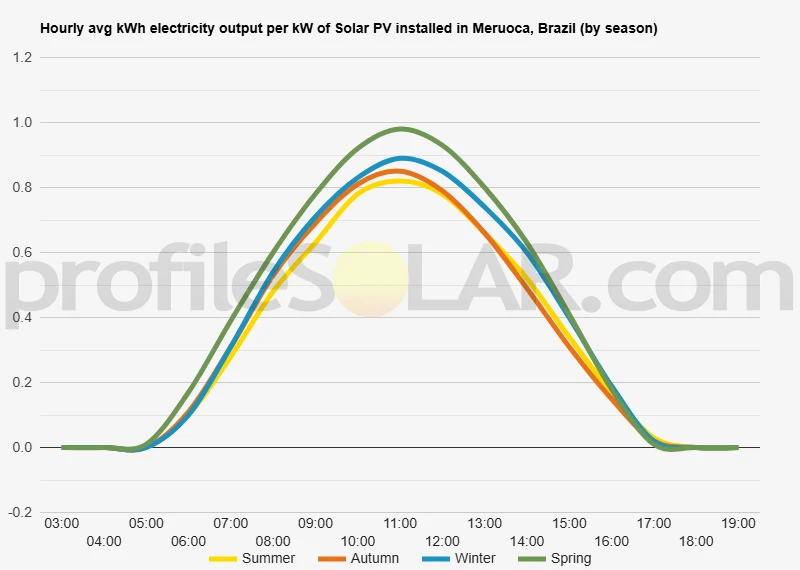

Solar output per kW of installed solar PV by season in Meruoca

Seasonal solar PV output for Latitude: -3.586, Longitude: -40.4673 (Meruoca, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 4° North in Meruoca, Brazil

To maximize your solar PV system's energy output in Meruoca, Brazil (Lat/Long -3.586, -40.4673) throughout the year, you should tilt your panels at an angle of 4° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Meruoca, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Meruoca, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 4° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
12° South in Summer	10° North in Autumn	19° North in Winter	2° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Meruoca, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Meruoca, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Meruoca, Brazil

Topographical Features Around Meruoca

The region surrounding Meruoca in Ceará state, northeastern Brazil, presents a distinctive landscape characterized by the prominent Serra de Meruoca mountain range. This elevated formation rises dramatically from the surrounding semi-arid plains, creating a striking contrast in the local topography. The serra itself reaches elevations of approximately 600 to 700 meters above sea level, making it one of the most significant topographical features in the northern portion of Ceará state.

The mountainous terrain of Serra de Meruoca is composed primarily of crystalline rock formations, with steep slopes and rugged terrain that transitions into gentler rolling hills as the elevation decreases toward the surrounding lowlands. The mountain range extends roughly in a northwest-southeast direction, creating natural barriers that influence local weather patterns and vegetation distribution.

Below the serra, the landscape gradually flattens into the characteristic caatinga plains of the Brazilian northeast. These lower-elevation areas feature relatively flat to gently undulating terrain, punctuated by occasional isolated hills and rocky outcrops. The soil composition varies from sandy to clay-rich depending on the specific location, with many areas displaying the reddish coloration typical of semi-arid tropical soils.

Drainage and Water Features

The topography around Meruoca creates distinct drainage patterns, with several seasonal streams and small rivers originating from the serra and flowing toward the lower plains. During the wet season, these waterways become more prominent, while many remain dry or contain only minimal flow during extended dry periods. The elevated terrain of the serra acts as a natural watershed, collecting moisture and directing runoff toward the surrounding agricultural areas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Meruoca region would be found in the flatter, lower-elevation areas surrounding the base of Serra de Meruoca. These plains offer several advantages for solar development, including relatively level terrain that minimizes grading and construction costs, good accessibility for equipment transport and maintenance, and minimal shading from topographical features.

The areas to the east and south of the serra are particularly well-suited for solar development due to their combination of flat terrain and optimal solar exposure throughout the day. These locations benefit from unobstructed views of the sky and minimal interference from the mountainous terrain to the north and west. The gentle slopes in these areas also provide natural drainage, which is beneficial for long-term infrastructure stability.

Agricultural areas in the surrounding plains could potentially be suitable for solar development, particularly those with marginal productivity due to water limitations or soil quality issues. The relatively sparse vegetation typical of the caatinga ecosystem in these lower elevations would require minimal clearing compared to more densely forested regions.

Areas closer to existing electrical infrastructure and transportation networks would be preferable for large-scale installations, as they would reduce connection and logistics costs. The flatter terrain away from the immediate slopes of the serra would also minimize potential issues with wind exposure and provide more stable foundations for solar mounting systems.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
