Miradouro, Minas Gerais, Brazil represents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates -20.8506, -42.3911, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the dramatic temperature and daylight changes seen in temperate regions.

Seasonal Solar Performance

The solar energy output data reveals strong performance across all seasons, with summer delivering the highest production at 6.17 kWh per day per kW of installed solar capacity. Spring follows closely with 5.30 kWh/day, while autumn produces 5.53 kWh/day. Even during the lowest-performing winter season, the location still generates a respectable 4.67 kWh/day per kW installed. Summer emerges as the ideal time for solar generation, offering approximately 32% more energy production compared to winter months. However, the relatively modest seasonal variation demonstrates that Miradouro maintains good solar potential year-round, making it an excellent candidate for consistent renewable energy generation.

Optimal Installation Configuration

For maximum year-round solar production at this location, fixed solar panels should be tilted at 20 degrees toward the north. This optimal angle is calculated by analyzing daily solar elevation angles at the specific latitude, determining daily optimal panel positioning, and weighting these angles using solar irradiance data while accounting for Earth's elliptical orbit around the sun.

Environmental Challenges and Mitigation Strategies

Several environmental factors could potentially impact solar production efficiency in Miradouro. The tropical climate brings distinct wet and dry seasons, with the wet season potentially creating significant challenges for solar installations. Humidity and Moisture represent primary concerns in this tropical environment. High humidity levels can lead to corrosion of electrical components and degradation of panel materials over time. Additionally, frequent rainfall during wet seasons can create water infiltration issues if installations are not properly sealed. Heavy Rainfall and Storm Activity during wet seasons can temporarily reduce solar output and potentially damage equipment. Intense tropical storms may bring strong winds that could stress mounting systems and create debris that impacts panels. Dust and Vegetation Growth present ongoing maintenance challenges. During dry periods, dust accumulation on panels can significantly reduce efficiency, while the rapid vegetation growth common in tropical climates may create shading issues if not properly managed.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Use marine-grade or tropical-rated electrical components and wiring specifically designed to withstand high humidity and temperature fluctuations
• Install robust waterproofing and drainage systems to prevent water infiltration during heavy rains
• Design mounting systems to withstand higher wind loads typical of tropical storm activity
• Implement proper grounding and surge protection to handle electrical storms common in tropical regions

Maintenance Considerations become particularly important in this environment. Regular panel cleaning schedules should account for both dust accumulation during dry periods and debris from storms during wet seasons. Vegetation management around installations requires ongoing attention to prevent shading issues. Component Selection should prioritize equipment rated for tropical conditions, including panels with enhanced moisture resistance and inverters designed to operate efficiently in high-temperature, high-humidity environments. Despite these environmental considerations, Miradouro's consistent solar resource throughout the year makes it an excellent location for solar PV installations when proper design and maintenance practices are implemented.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

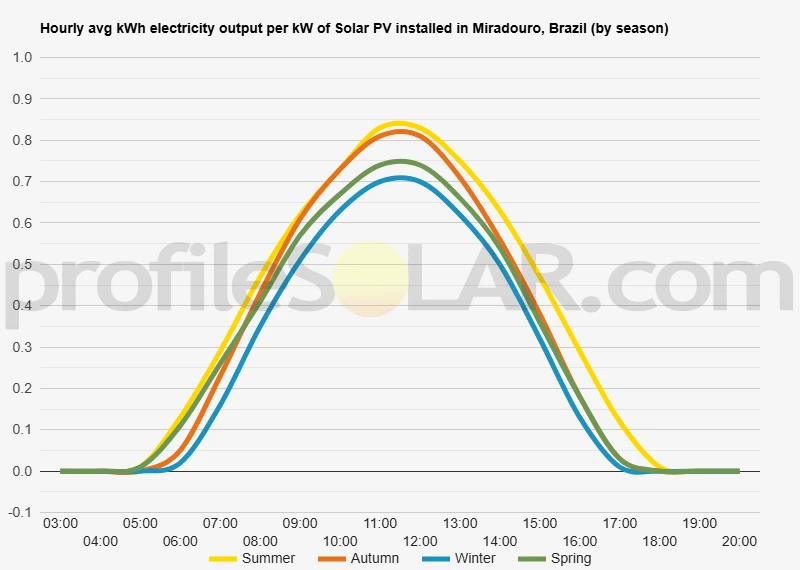

Solar output per kW of installed solar PV by season in Miradouro

Seasonal solar PV output for Latitude: -20.8506, Longitude: -42.3911 (Miradouro, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Miradouro, Brazil

To maximize your solar PV system's energy output in Miradouro, Brazil (Lat/Long -20.8506, -42.3911) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Miradouro, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Miradouro, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	26° North in Autumn	36° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Miradouro, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Miradouro, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Miradouro, Brazil

Topographical Features Around Miradouro

Miradouro sits within the mountainous terrain of Minas Gerais state in southeastern Brazil, positioned in the Atlantic Forest region known as Mata Atlântica. The landscape surrounding this municipality is characterized by rolling hills, steep ridges, and deep valleys that create a complex topographical pattern typical of the Brazilian Highlands. The elevation varies significantly across the area, with the town itself perched on higher ground that provides commanding views of the surrounding countryside.

The region forms part of the Serra da Mantiqueira mountain range system, where ancient geological formations have created a landscape of moderate to steep slopes interspersed with flatter plateaus and valley floors. Dense Atlantic Forest vegetation covers much of the steeper terrain, while agricultural activities and pastureland occupy the more accessible slopes and valley areas. The topography creates numerous microclimates and drainage patterns, with small streams and rivers carving through the landscape toward larger waterways.

Rocky outcrops and exposed granite formations are common features throughout the area, reflecting the underlying geological structure of the Brazilian Shield. These formations often create natural viewpoints and contribute to the varied elevation profile that gives the region its distinctive character. The combination of elevation changes and forest cover creates a mosaic of different land use patterns across the landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Miradouro would be the flatter plateau areas and gentle slopes that offer stable ground conditions and reduced construction complexity. These areas typically occur on the broader ridgetops and in the wider valley floors where the terrain levels out sufficiently to accommodate extensive solar arrays without requiring excessive grading or terracing.

South-facing slopes with gradual gradients present excellent opportunities for solar development, as they can maximize exposure to direct sunlight throughout the day while maintaining manageable installation angles. Areas that have been previously cleared for agriculture or pasture would be particularly advantageous, as they already lack the dense forest cover that characterizes much of the region and would require minimal environmental disruption for development.

The elevated plateau areas northeast and southwest of the town center appear most promising for large-scale installations, where the topography becomes more subdued and the land use patterns suggest greater accessibility. These locations would benefit from the higher elevation's clearer atmospheric conditions while avoiding the complications of steep terrain or dense forest coverage.

Areas near existing infrastructure such as roads and power transmission lines would offer additional advantages for solar development, reducing the costs and environmental impact associated with new access routes and grid connections. The relatively open agricultural lands in the broader valleys could also accommodate significant solar installations, particularly where the terrain remains relatively flat and the soil conditions are suitable for foundation work.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
