Mocajuba, Pará, Brazil presents an excellent location for year-round solar energy generation, with consistently strong performance across all seasons. Located in the tropical region at coordinates -2.5617, -49.4362, this area benefits from the reliable sunlight characteristic of equatorial zones.

Solar Energy Performance Throughout the Year

The solar energy output at Mocajuba shows impressive consistency, with each kilowatt of installed solar panels producing substantial daily electricity generation. Spring emerges as the peak season, delivering 6.11 kWh per day per kW of installed capacity. Winter follows closely behind at 6.02 kWh/day, while autumn generates 5.75 kWh/day. Even the lowest-performing season, summer, still produces a robust 5.49 kWh/day per kW. This relatively small variation between seasons - less than 12% difference between the highest and lowest performing periods - makes Mocajuba an ideal location for solar installations. The higher production during winter and spring months is particularly beneficial, as it provides strong energy generation during what might traditionally be considered less optimal times in other regions.

Optimal Panel Installation

For maximum year-round energy production at this location, solar panels should be installed at a fixed tilt angle of 3 degrees facing north. This shallow angle optimizes the panels' exposure to the sun's path throughout the year, taking into account the location's proximity to the equator and seasonal variations in solar positioning.

Environmental and Weather Challenges

Despite the excellent solar potential, several local factors could impact solar energy production in Mocajuba:

• High humidity and frequent rainfall: The tropical climate brings intense wet seasons that can reduce solar irradiance and create maintenance challenges
• Dust and debris accumulation: Heavy rains followed by dry periods can leave residue on panels, while organic matter from the lush tropical environment may accumulate on surfaces
• Extreme heat: High temperatures can reduce panel efficiency and accelerate equipment degradation
• Corrosive environment: High humidity and salt-laden air can accelerate corrosion of metal components

Preventative Measures for Optimal Performance

Several strategies can help maximize solar energy production despite these environmental challenges:

• Regular cleaning systems: Install automated cleaning systems or establish frequent manual cleaning schedules to remove dust, debris, and organic matter
• Improved ventilation: Design installations with adequate air circulation around panels to reduce operating temperatures
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware specifically designed for tropical environments
• Proper drainage: Ensure excellent water drainage around installations to prevent standing water and reduce humidity-related issues
• Quality inverters: Install inverters in shaded, well-ventilated areas with appropriate cooling systems

With proper installation techniques and regular maintenance, Mocajuba's tropical location offers exceptional potential for solar energy generation, with the consistent high output making it one of the more favorable locations globally for solar PV installations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

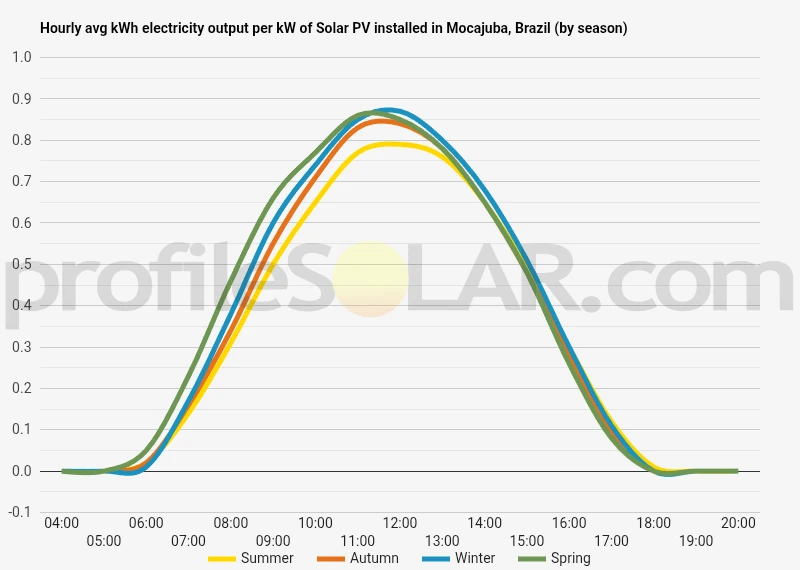

Solar output per kW of installed solar PV by season in Mocajuba

Seasonal solar PV output for Latitude: -2.5617, Longitude: -49.4362 (Mocajuba, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 3° North in Mocajuba, Brazil

To maximize your solar PV system's energy output in Mocajuba, Brazil (Lat/Long -2.5617, -49.4362) throughout the year, you should tilt your panels at an angle of 3° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mocajuba, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mocajuba, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 3° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	9° North in Autumn	18° North in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mocajuba, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mocajuba, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mocajuba, Brazil

Topographical Features of the Mocajuba Region

The area surrounding Mocajuba in Pará state, Brazil, is characterized by the relatively flat and gently undulating terrain typical of the Amazon Basin. This region sits within the vast lowland plains that extend across much of northern Brazil, with elevations generally remaining below 100 meters above sea level. The landscape consists primarily of expansive floodplains and terra firme areas that rise slightly above the seasonal flood zones. The Tocantins River system dominates the local geography, with Mocajuba positioned along the banks of this major waterway. The river creates extensive wetland areas and várzea forests that flood seasonally, contributing to the region's characteristic flat topography. Between the river channels and floodplains, slightly elevated plateaus provide more stable ground that remains above the high water marks during annual flooding cycles. Dense tropical rainforest covers much of the surrounding landscape, interspersed with areas that have been cleared for agriculture and cattle ranching. The forest canopy creates a relatively uniform appearance across the region, masking the subtle elevation changes in the underlying terrain. Natural clearings and human-modified areas reveal the gentle slopes and drainage patterns that characterize this part of the Amazon.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated terra firme areas that remain consistently above flood levels throughout the year. These slightly higher elevations, typically ranging from 50 to 80 meters above sea level, provide stable foundations and avoid the complications associated with seasonal inundation that affects lower-lying areas. Agricultural lands and pastures that have already been cleared of forest cover present the most practical opportunities for solar development. These areas require minimal additional land preparation and avoid the environmental concerns associated with deforestation. The existing cleared zones often span several hundred hectares, providing sufficient space for utility-scale installations while maintaining appropriate distances from sensitive wetland ecosystems. Areas with good access to existing infrastructure would be particularly advantageous for large solar projects. Locations near established roads, transmission lines, and the BR-422 highway corridor offer better connectivity for construction activities and grid integration. The relatively flat terrain in these zones minimizes grading requirements and reduces installation costs compared to more topographically complex regions. The stable geological conditions of the terra firme areas also provide excellent foundations for solar mounting systems. These locations typically feature well-drained soils that reduce concerns about water accumulation around equipment and provide reliable ground conditions for both fixed-tilt and tracking solar arrays. The consistent elevation and minimal slope variations across these areas allow for efficient layout designs that maximize land utilization while maintaining proper drainage patterns.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
