Mococa, São Paulo, Brazil presents a favorable location for year-round solar energy generation, benefiting from its tropical positioning where consistent sunlight is available throughout most of the year, with seasons typically defined by wet and dry periods rather than significant temperature variations.

Solar Energy Production Performance

The solar energy output at Mococa shows strong performance across all seasons, though with notable seasonal variation. Summer delivers the highest production at 6.78kWh per day per kW of installed capacity, making it the peak generation period. Spring follows as the second-best season with 6.21kWh/day per kW, while autumn produces 5.67kWh/day per kW. Winter represents the lowest production period at 5.04kWh/day per kW, though this figure still indicates decent solar potential even during the least favorable months. For optimal year-round energy capture, fixed solar panels at this location should be installed at a tilt angle of 20 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying elevation throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production in Mococa and require careful consideration during installation planning. The tropical wet season presents the most significant challenge, as increased cloud cover and frequent rainfall can substantially reduce solar irradiance reaching the panels. Heavy rains and storms during wet periods may also deposit debris, leaves, and sediment on panel surfaces, creating shading and reducing efficiency. High humidity levels throughout much of the year can contribute to faster degradation of electrical components and connections if not properly sealed and protected. The combination of heat and moisture creates conditions that can accelerate corrosion and component failure.

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate spacing and mounting systems that allow proper drainage and air circulation to prevent water accumulation and promote cooling
• Use high-quality weatherproof enclosures and marine-grade electrical connections to protect against humidity and moisture infiltration
• Design the installation with easy access for regular cleaning and maintenance, particularly important during and after wet seasons
• Consider anti-soiling coatings on panel surfaces to reduce dirt and debris adhesion
• Implement robust grounding and surge protection systems to handle electrical storms common in tropical regions

Regular maintenance scheduling becomes particularly important in this environment, with cleaning recommended more frequently during wet seasons when debris accumulation is highest. Despite these considerations, Mococa's consistent solar resource makes it a viable location for solar energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

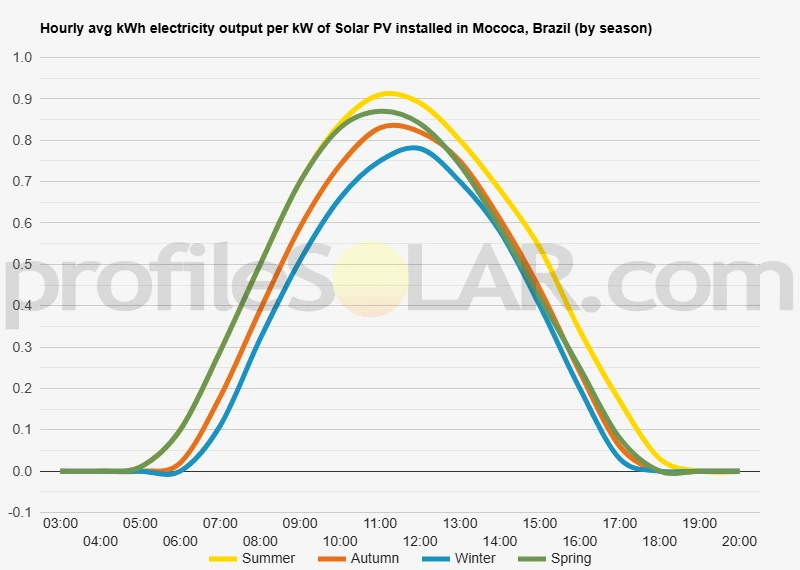

Solar output per kW of installed solar PV by season in Mococa

Seasonal solar PV output for Latitude: -21.4445, Longitude: -47.0135 (Mococa, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Mococa, Brazil

To maximize your solar PV system's energy output in Mococa, Brazil (Lat/Long -21.4445, -47.0135) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mococa, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mococa, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mococa, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mococa, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mococa, Brazil

Topographical Features Around Mococa

The region surrounding Mococa in São Paulo state is characterized by gently rolling hills and undulating terrain typical of the Brazilian Highlands. The landscape consists primarily of elevated plateaus with moderate slopes, sitting at approximately 665 meters above sea level. This area forms part of the broader Mantiqueira mountain system's foothills, creating a terrain that rises and falls in gentle waves across the countryside.

The topography is dominated by agricultural lands with open fields and pastures, interspersed with patches of Atlantic Forest remnants along waterways and steeper slopes. The terrain generally slopes toward the northeast, following the drainage patterns that feed into the Mogiguaçu River basin. Small valleys cut through the landscape, creating natural corridors where streams and seasonal watercourses flow.

The soil composition in this region is predominantly red latosol, a deep, well-drained soil type common throughout interior São Paulo. This creates relatively stable ground conditions with good drainage characteristics. The landscape shows minimal rocky outcroppings, with most of the terrain covered by deep soil layers that have developed over millions of years of weathering.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations would be the expansive plateau areas to the south and southwest of Mococa. These elevated flatlands offer several advantages, including minimal shading from topographical features and consistent exposure to solar radiation throughout the day. The gentle slopes in these areas, typically ranging from 2 to 8 degrees, provide natural drainage while remaining suitable for solar panel installation.

Agricultural areas currently used for cattle grazing or sugar cane cultivation present excellent opportunities for solar development. These lands are already cleared of native vegetation, have established access roads, and often possess relatively flat topography with only minor undulations. The existing infrastructure in these farming regions, including electrical connections and transportation networks, would support large-scale solar installations.

The plateau regions extending toward the municipalities of Casa Branca and Tambaú offer particularly favorable conditions. These areas combine optimal topographical features with proximity to existing electrical transmission infrastructure. The terrain in these locations provides natural wind flow patterns that help with panel cooling, while the elevated position reduces potential issues with fog or moisture accumulation that might occur in lower-lying areas.

Areas near the SP-340 highway corridor would be especially advantageous for solar development due to their accessibility and existing infrastructure. The relatively flat agricultural lands along this transportation route offer easy access for construction equipment and ongoing maintenance operations, while maintaining the topographical advantages necessary for efficient solar energy generation.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
