Mogi das Cruzes, Brazil is a reasonably good location for year-round solar energy generation, though it experiences notable seasonal variations in output. Located in the Southern Sub Tropics at coordinates -23.5246, -46.1835, this area can produce between 4.16 and 6.06 kWh per day per kW of installed solar capacity depending on the season.

Seasonal Performance Overview

The solar energy production at Mogi das Cruzes varies significantly throughout the year. Summer delivers the highest output at 6.06 kWh per day per kW, making it the ideal time for solar generation. Spring follows as the second-best season with 5.33 kWh per day per kW, while autumn produces 5.06 kWh per day per kW. Winter shows the lowest production at 4.16 kWh per day per kW, representing about 31% less energy generation compared to summer peak performance. For optimal year-round energy capture, solar panels should be installed at a fixed tilt angle of 22 degrees facing north. This angle maximizes total annual production by accounting for the sun's varying position throughout the seasons and the location's specific latitude.

Environmental and Weather Challenges

Several local factors in Mogi das Cruzes can significantly impact solar energy production and require careful consideration during installation:

• High humidity and frequent rainfall: The region experiences substantial precipitation, particularly during summer months, which can reduce solar irradiance and create challenges for panel maintenance
• Atmospheric haze and air pollution: Being located near São Paulo's metropolitan area, air quality issues can diminish solar panel efficiency by reducing direct sunlight
• Tropical storms and severe weather: The area is susceptible to intense weather events that can damage solar installations
• High temperatures and thermal cycling: Extreme heat can reduce panel efficiency, while temperature fluctuations cause expansion and contraction stress

Preventative Installation Measures

To maximize energy production despite these challenges, several installation strategies should be implemented. Proper drainage systems and adequate spacing between panel rows help prevent water accumulation and allow for natural cleaning during rainfall. Installing panels with robust mounting systems rated for high wind loads protects against storm damage. Regular cleaning schedules become essential due to dust and pollution accumulation, while selecting panels with anti-reflective coatings can help maintain efficiency in hazy conditions. Ensuring adequate ventilation beneath panels helps manage heat buildup, and using high-quality inverters with temperature compensation maintains performance during hot weather. Investing in monitoring systems allows for quick identification of performance issues, while choosing corrosion-resistant materials for all mounting hardware extends system lifespan in the humid subtropical climate. These measures collectively help ensure that solar installations in Mogi das Cruzes can achieve closer to their theoretical maximum output throughout the year.

Note: The Southern Sub Tropics extend from -23.5° latitude South down to -35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

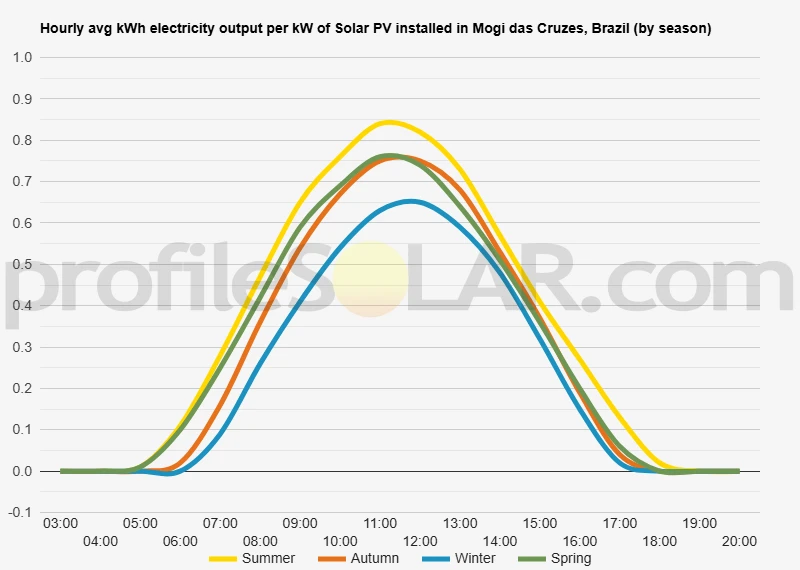

Solar output per kW of installed solar PV by season in Mogi Das Cruzes

Seasonal solar PV output for Latitude: -23.5246, Longitude: -46.1835 (Mogi Das Cruzes, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 22° North in Mogi Das Cruzes, Brazil

To maximize your solar PV system's energy output in Mogi Das Cruzes, Brazil (Lat/Long -23.5246, -46.1835) throughout the year, you should tilt your panels at an angle of 22° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mogi Das Cruzes, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mogi Das Cruzes, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 22° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° North in Summer	29° North in Autumn	39° North in Winter	17° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mogi Das Cruzes, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mogi Das Cruzes, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mogi Das Cruzes, Brazil

Topographical Features of Mogi das Cruzes

The region around Mogi das Cruzes sits within the broader São Paulo metropolitan area, positioned on the eastern edge of the vast São Paulo plateau. This area is characterized by gently rolling hills and relatively moderate elevation changes, with the city itself located at approximately 760 meters above sea level. The topography is part of the Brazilian Highlands, which creates a landscape of undulating terrain interspersed with river valleys and modest ridgelines. The immediate vicinity features a mix of agricultural plains and low hills, with the terrain gradually rising toward the Serra do Mar mountain range to the southeast. These mountains form a dramatic backdrop but are located far enough away that they don't significantly impact the local topography around the city center. The landscape is predominantly composed of weathered crystalline rocks covered by deep tropical soils, creating relatively stable ground conditions. Several rivers traverse the region, including the Tietê River system, which has carved shallow valleys through the plateau. These waterways create gentle depressions in the landscape but don't result in dramatic elevation changes. The overall topographical character can be described as moderately hilly countryside with good drainage and relatively consistent soil conditions.

Climate and Environmental Conditions

Mogi das Cruzes experiences a subtropical highland climate typical of the São Paulo plateau region. The area benefits from its elevation, which moderates temperatures compared to lower-lying coastal areas. The region experiences distinct wet and dry seasons, with the dry season typically offering more consistent weather patterns favorable for solar energy generation. The plateau location provides good air circulation and relatively stable atmospheric conditions. Cloud formation patterns are influenced by the regional topography, with the nearby Serra do Mar mountains affecting moisture movement from the Atlantic Ocean. During certain periods of the year, the area experiences excellent atmospheric clarity with minimal haze or pollution compared to the more densely populated central São Paulo region.

Optimal Areas for Large-Scale Solar Development

The most suitable areas for large-scale solar photovoltaic installations around Mogi das Cruzes would be the relatively flat to gently sloping agricultural areas located to the north and northwest of the city center. These zones offer several advantages including consistent terrain that minimizes grading requirements and good accessibility via existing rural road networks. The elevated plateau areas with southern exposure would be particularly well-suited for solar development. These locations typically feature stable soil conditions, minimal flooding risk, and good natural drainage. The agricultural zones also tend to have fewer environmental restrictions compared to areas closer to water bodies or native forest remnants. Areas with slopes between 0-10 degrees facing south would be ideal, as they provide optimal panel positioning while maintaining reasonable construction costs. The region's existing agricultural infrastructure, including access roads and electrical connections, makes these rural areas particularly attractive for utility-scale solar development. The zones east of the city toward Suzano and north toward Arujá present excellent opportunities due to their combination of suitable topography, existing infrastructure, and distance from dense urban development. These areas offer large contiguous parcels of land with minimal shading from trees or structures, essential for maximizing solar generation efficiency.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
