Mombuca, São Paulo, Brazil presents a moderately good location for year-round solar PV energy generation, though it experiences notable seasonal variations in solar output that potential installers should consider carefully.

Seasonal Solar Performance

The location shows strong solar energy production during summer months, generating 6.78 kWh per day per kW of installed solar capacity. Spring also performs well at 6.22 kWh per day per kW. However, winter production drops significantly to 4.80 kWh per day per kW, representing a 29% decrease from peak summer performance. Autumn falls in the middle range at 5.55 kWh per day per kW. Summer and spring represent the ideal times of year for solar generation at this location, with these seasons providing the highest energy yields. The substantial difference between peak and low seasons means that energy storage or grid-tied systems become particularly important for maintaining consistent power supply year-round.

Optimal Panel Configuration

For a fixed panel installation at Mombuca, São Paulo, the ideal angle to tilt solar panels is 21 degrees North to maximise total year-round production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to determine the optimal compromise for annual energy output.

Environmental and Weather Factors

Several local factors could potentially impact solar production at this location:

• Seasonal rainfall patterns: Brazil's tropical and subtropical regions typically experience distinct wet and dry seasons, with heavy rains during wet periods potentially reducing solar irradiance through cloud cover
• High humidity levels: Tropical climates often feature elevated humidity that can lead to moisture accumulation on panels and reduced efficiency
• Dust and debris accumulation: Dry seasons may result in dust buildup on solar panels, particularly problematic when combined with subsequent humid conditions

Preventative Measures for Better Performance

To ensure optimal solar energy production despite these environmental challenges, several installation strategies can help: Regular cleaning schedules become essential, particularly during transitions between dry and wet seasons when dust accumulation is highest. Installing panels with adequate spacing and ventilation helps combat humidity-related efficiency losses by allowing better air circulation and heat dissipation. Choosing high-quality mounting systems with proper drainage prevents water pooling and ensures panels can shed rainwater effectively. Anti-reflective coatings and hydrophobic treatments on panel surfaces can help maintain performance during humid conditions and make cleaning more effective. Consider installing monitoring systems to track performance drops that might indicate cleaning or maintenance needs. This allows for proactive maintenance rather than reactive responses to reduced energy output.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

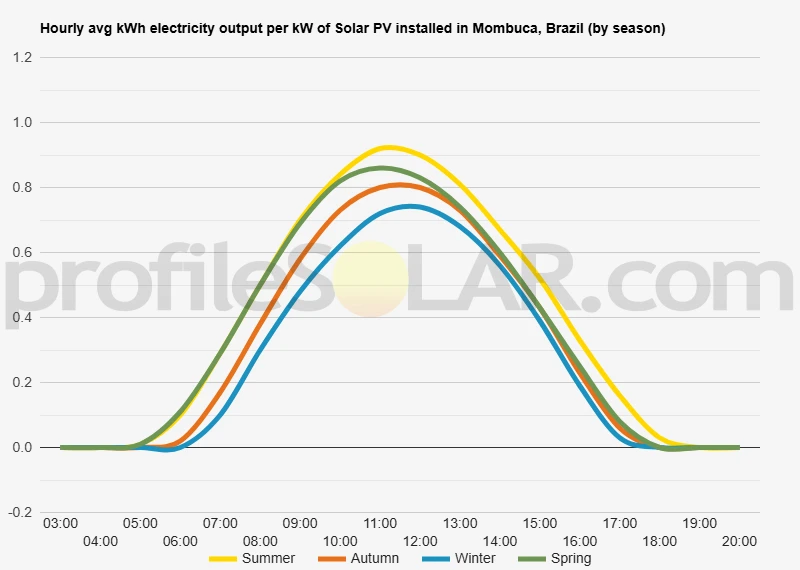

Solar output per kW of installed solar PV by season in Mombuca

Seasonal solar PV output for Latitude: -22.9511, Longitude: -47.6024 (Mombuca, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 21° North in Mombuca, Brazil

To maximize your solar PV system's energy output in Mombuca, Brazil (Lat/Long -22.9511, -47.6024) throughout the year, you should tilt your panels at an angle of 21° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mombuca, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mombuca, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 21° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	29° North in Autumn	38° North in Winter	16° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mombuca, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mombuca, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mombuca, Brazil

Topographical Features of the Mombuca Region

The area around Mombuca in São Paulo state sits within the Brazilian Highlands, characterized by gently rolling terrain typical of the southeastern interior plateau. This region features relatively modest elevation changes, with the landscape consisting primarily of undulating hills and broad valleys that create a pleasant, varied topography without extreme slopes or dramatic elevation shifts. The terrain around Mombuca is part of the larger Paulista Plateau, where ancient geological formations have been weathered over millions of years into smooth, rounded hills. The elevation in this area typically ranges from around 500 to 700 meters above sea level, providing good drainage while maintaining accessibility for development and infrastructure projects. Agricultural land dominates much of the surrounding landscape, with extensive areas of sugarcane plantations, pastureland, and other farming operations taking advantage of the fertile soils and manageable terrain. The region benefits from well-developed transportation networks, including highways and rural roads that connect smaller communities to larger urban centers.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broader valley floors and gentle hillside slopes that characterize much of the region south and east of Mombuca. These areas offer several advantages including relatively flat terrain that minimizes grading costs, good accessibility for construction equipment and maintenance vehicles, and proximity to existing electrical transmission infrastructure. The expansive agricultural areas surrounding the town present excellent opportunities for solar development, particularly where land use could potentially be converted or where agrivoltaic systems might be implemented. The rolling nature of the terrain allows for strategic positioning of solar arrays to maximize exposure while minimizing shading between panel rows. Areas with southern-facing slopes would be particularly well-suited for solar installations, as these orientations optimize energy capture in the southern hemisphere. The region's well-established road network and relatively close proximity to transmission lines make these locations even more attractive from a development perspective. The stable geological conditions of the Brazilian Highlands provide excellent foundation characteristics for large-scale solar installations, while the moderate topography reduces the engineering challenges often associated with mounting systems on difficult terrain. This combination of factors makes the Mombuca region highly favorable for significant solar energy development projects.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
