Monte Belo, Minas Gerais, Brazil presents a very favorable location for year-round solar energy generation. Located in the tropics at coordinates -21.3194, -46.3384, this region benefits from consistent sunlight throughout most of the year, with seasons typically characterized by wet and dry periods rather than dramatic temperature variations.

Solar Energy Production Potential

The solar energy output data for Monte Belo shows strong performance across all seasons. Summer delivers the highest production at 6.36kWh per day per kW of installed solar capacity, making it the peak generation period. Spring follows closely with 6.02kWh/day per kW, while autumn provides 5.62kWh/day per kW. Even during winter, the lowest production season, the location still generates a respectable 5.05kWh/day per kW. This seasonal variation of only about 26% between the highest and lowest performing seasons demonstrates excellent year-round solar potential. The relatively modest drop in winter production compared to summer makes Monte Belo highly suitable for consistent solar energy generation throughout the year.

Optimal Installation Configuration

For maximum year-round energy production at Monte Belo, Minas Gerais, solar panels should be installed at a fixed tilt angle of 20 degrees facing north. This optimal angle is calculated by analyzing daily solar elevation angles at this latitude, determining daily optimal panel tilt angles, and weighting these angles by daily photovoltaic potential using solar irradiance data while accounting for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors could potentially impact solar energy production at Monte Belo and require consideration during installation: The tropical wet season brings heavy rainfall and high humidity levels that can reduce solar panel efficiency. Frequent cloud cover during rainy periods can significantly decrease solar irradiance reaching the panels. Additionally, the high moisture content in the air can lead to:

• Dust and debris accumulation on panel surfaces when mixed with humidity
• Potential corrosion of mounting hardware and electrical connections
• Reduced panel efficiency due to high ambient temperatures combined with humidity

Preventative Measures for Optimal Performance

To maximize solar energy production despite these challenges, several installation strategies should be implemented:

• Install panels with adequate ventilation spacing underneath to promote air circulation and cooling
• Use corrosion-resistant mounting materials such as anodized aluminum or stainless steel hardware
• Implement regular cleaning schedules, particularly during and after the wet season
• Install panels at the optimal 20-degree tilt to promote natural rainwater cleaning and debris runoff
• Use high-quality electrical enclosures and connections rated for tropical humidity conditions
• Consider micro-inverters or power optimizers to minimize the impact of partial shading from passing clouds

Despite these considerations, Monte Belo's consistent tropical sunlight and relatively stable year-round solar production make it an excellent location for solar energy generation. With proper installation techniques and maintenance practices, solar installations at this location can achieve highly reliable and efficient energy production throughout all seasons.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 3161 locations across Brazil. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Brazil by location

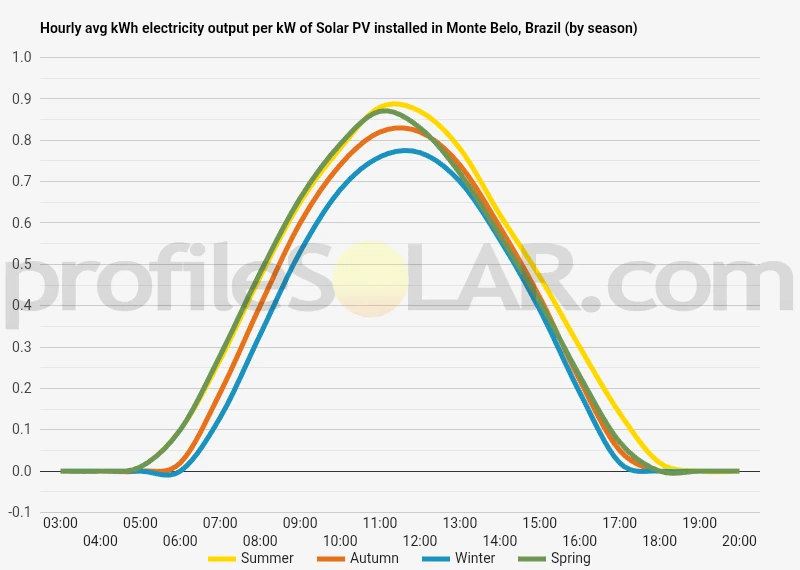

Solar output per kW of installed solar PV by season in Monte Belo

Seasonal solar PV output for Latitude: -21.3194, Longitude: -46.3384 (Monte Belo, Brazil), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 20° North in Monte Belo, Brazil

To maximize your solar PV system's energy output in Monte Belo, Brazil (Lat/Long -21.3194, -46.3384) throughout the year, you should tilt your panels at an angle of 20° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Monte Belo, Brazil

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Monte Belo, Brazil. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 20° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	27° North in Autumn	37° North in Winter	15° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Monte Belo, Brazil

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Monte Belo, Brazil.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Monte Belo, Brazil

Topographical Features Around Monte Belo

Monte Belo sits within the rolling hills and elevated plateaus characteristic of southern Minas Gerais state in Brazil. The region forms part of the Brazilian Highlands, where the landscape consists of gently undulating terrain with elevations typically ranging between 800 and 1,200 meters above sea level. The topography here represents a transition zone between the more dramatic mountainous regions to the east and the flatter agricultural plains that extend westward toward São Paulo state. The immediate area around Monte Belo features a series of rounded hills and broad valleys carved by centuries of erosion. These hills rise and fall in sweeping curves rather than sharp peaks, creating a landscape that appears almost wave-like when viewed from elevated positions. The terrain slopes generally toward the southwest, following the drainage patterns that feed into the Sapucaí River system. Small streams and seasonal watercourses have created numerous shallow valleys throughout the region, though none represent significant obstacles to development. The geological foundation consists primarily of crystalline rocks from the Brazilian Shield, overlain by weathered soils that have developed into the characteristic red and yellow latosols common throughout this part of Brazil. This combination has produced relatively stable ground conditions with good drainage properties, though the weathered nature of the surface materials means that erosion control becomes important on steeper slopes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie on the broader plateau areas and gentle south-facing slopes within a 20-kilometer radius of Monte Belo. These elevated flat-to-gently-rolling areas provide the ideal combination of stable ground conditions, minimal shading concerns, and reduced risk of flooding that large solar facilities require. The plateau regions immediately north and northwest of Monte Belo offer particularly attractive characteristics for solar development. These areas feature relatively level terrain with gradual slopes that facilitate both construction access and natural drainage without creating significant grading challenges. The elevation of these plateaus, typically between 900 and 1,100 meters, places them above the morning fog layers that can form in the lower valleys during certain seasons. Areas with south and southeast-facing gentle slopes present excellent opportunities for solar installations, as these orientations maximize exposure to the sun's path across the northern sky in the Southern Hemisphere. The moderate slope angles found throughout much of this region, typically ranging from 2 to 8 degrees, provide natural advantages for solar panel positioning while maintaining manageable construction conditions. The broader valley floors, particularly those associated with the larger tributary streams, should generally be avoided for major solar installations. These lower-lying areas experience greater moisture retention, potential flooding during heavy rainfall periods, and may encounter morning fog conditions that could impact performance. Additionally, the riparian vegetation along these watercourses often receives environmental protection, limiting development options. Agricultural areas on the elevated plateaus represent prime candidates for solar development, especially those currently used for extensive cattle grazing rather than intensive crop production. The existing cleared land reduces environmental concerns while the established road networks provide construction access advantages. The relatively sparse population density across these rural plateau areas also minimizes potential conflicts with residential development.

Brazil solar PV Stats as a country

Brazil ranks 13th in the world for cumulative solar PV capacity, with 13,708 total MW's of solar PV installed. This means that 2.50% of Brazil's total energy as a country comes from solar PV (that's 31st in the world). Each year Brazil is generating 64 Watts from solar PV per capita (Brazil ranks 47th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Brazil?

Yes, there are several incentives for businesses wanting to install solar energy in Brazil. The Brazilian government offers a range of tax credits and other financial incentives to encourage the adoption of renewable energy sources such as solar power. These include reduced import taxes on solar equipment, accelerated depreciation of investments in renewable energy projects, and preferential financing from public banks. Additionally, some states offer additional incentives such as subsidies or grants for businesses that install solar systems.

Do you have more up to date information than this on incentives towards solar PV projects in Brazil? Please reach out to us and help us keep this information current. Thanks!
